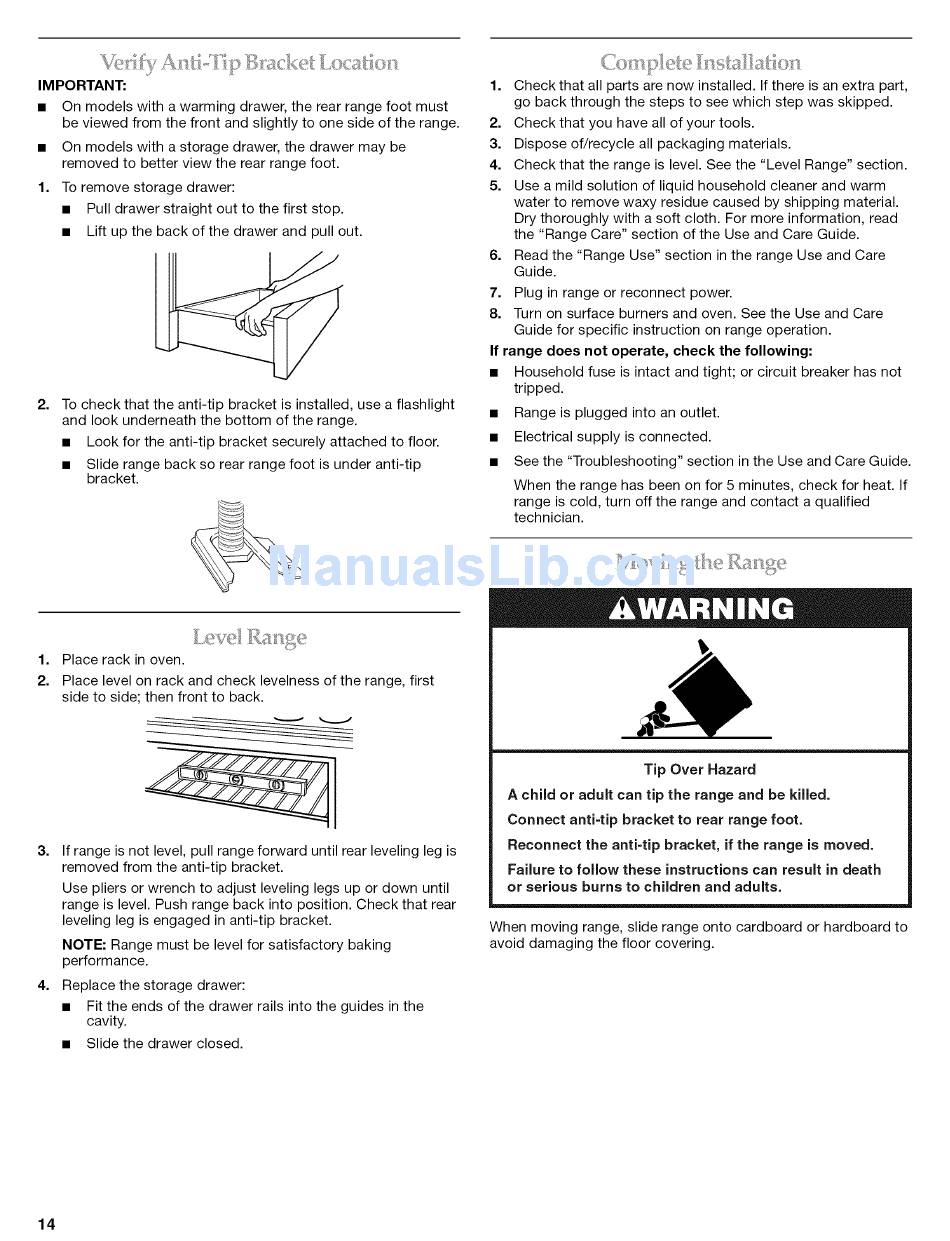

Verify Anti-Tip Bracket Location; Level Range; Complete Installation; Moving The Range - KitchenAid KERS807SBL04 Installation Instructions Manual

30" (76.2 cm) freestanding and slide-in electric ranges
Hide thumbs

Advertisement

IMPORTANT:
On models with a warming drawer, the rear range foot must
be viewed from the front and slightly to one side of the range.
On models with a storage drawer, the drawer may be
removed to better view the rear range foot.
1. To remove storage drawer:
Pull drawer straight out to the first stop.
Lift up the back of the drawer and pull out.
2.
To check that the anti-tip bracket is installed, use a flashlight
and look underneath the bottom of the range.
Look for the anti-tip bracket securely attached to floor.
Slide range back so rear range foot is under anti-tip
bracket.
1=
2.
Place rack in oven.
Place level on rack and check levelness of the range, first
side to side; then front to back.
3. If range is not level, pull range forward until rear leveling leg is
removed from the anti-tip bracket.
Use pliers or wrench to adjust leveling legs up or down until
range is level. Push range back into position. Check that rear
leveling leg is engaged in anti-tip bracket.
NOTE: Range must be level for satisfactory
baking
performance.
4. Replace the storage drawer:
Fit the ends of the drawer rails into the guides in the
cavity.
Slide the drawer closed.
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Check that the range is level. See the "Level Range" section.
5. Use a mild solution of liquid household cleaner and warm
water to remove waxy residue caused by shipping material.
Dry thoroughly with a soft cloth. For more information,
read
the "Range Care" section of the Use and Care Guide.
6. Read the "Range Use" section in the range Use and Care
Guide.
7. Plug in range or reconnect power.
8. Turn on surface burners and oven. See the Use and Care
Guide for specific instruction on range operation.
If range does not operate,
check the following:
Household fuse is intact and tight; or circuit breaker has not
tripped.
Range is plugged into an outlet.
Electrical supply is connected.
See the "Troubleshooting"
section in the Use and Care Guide.
When the range has been on for 5 minutes, check for heat. If
range is cold, turn off the range and contact a qualified
technician.
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip
bracket to rear range foot.
Reconnect
the anti-tip
bracket,
if the range is moved.
Failure to follow these instructions can result in death
or serious
burns to children
and adults.
When moving range, slide range onto cardboard or hardboard to
avoid damaging the floor covering.
14
