30" (76.2 cm) freestanding and slide-in electric ranges
Hide thumbs

Advertisement

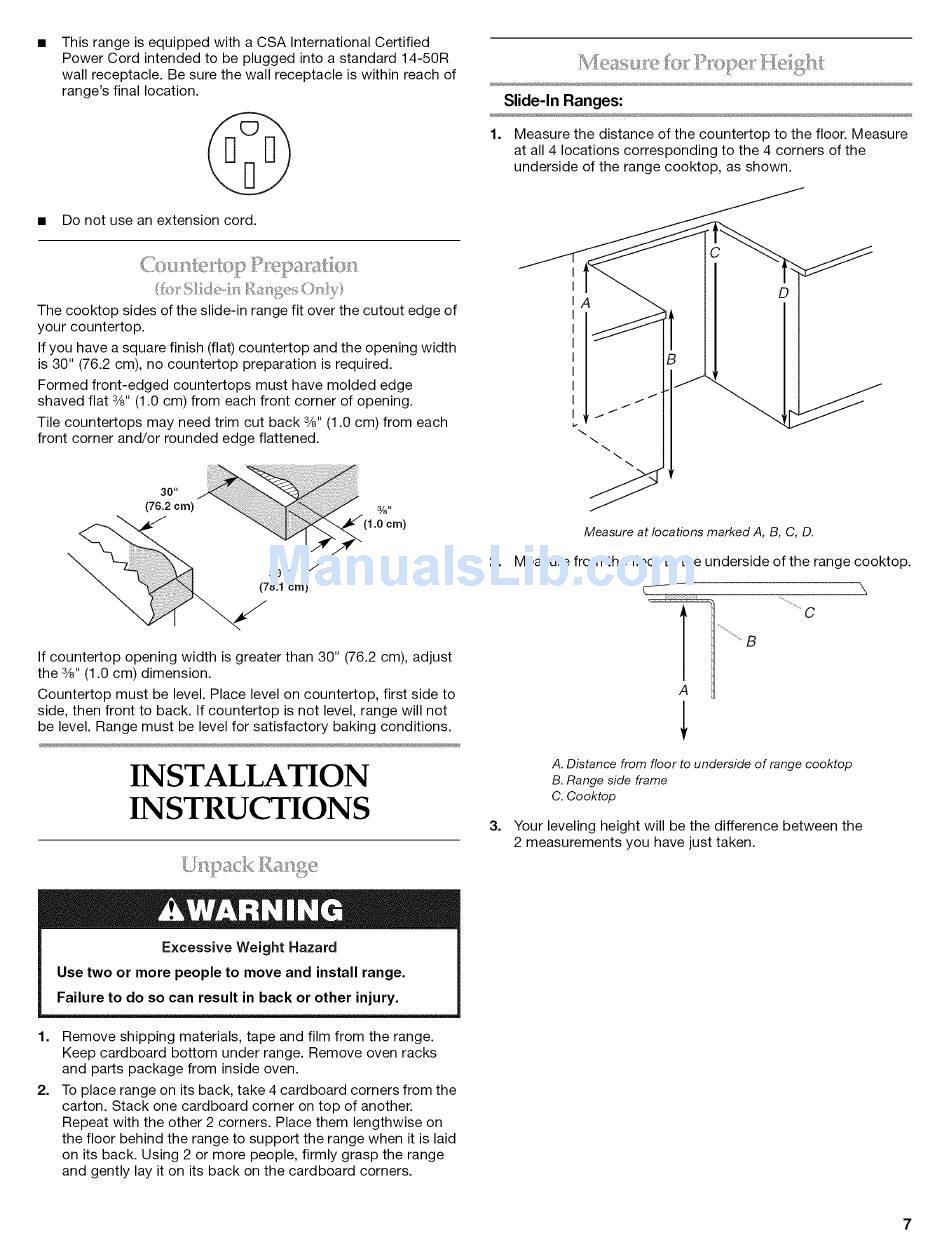

This range is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-50R
wall receptacle. Be sure the wall receptacle is within reach of
range's final location.
Do not use an extension cord.
Slide-In Ranges:
1. Measure the distance of the countertop
to the floor. Measure
at all 4 locations corresponding
to the 4 corners of the
underside of the range cooktop, as shown.
The cooktop sides of the slide-in range fit over the cutout edge of
your countertop.
If you have a square finish (flat) countertop and the opening width
is 30" (76.2 cm), no countertop
preparation is required.
Formed front-edged
countertops
must have molded edge
shaved flat 3/8"(1.0 cm) from each front corner of opening.
Tile countertops may need trim cut back 3/8" (1.0 cm) from each
front corner and/or rounded edge flattened.
30"
(76.2 cm)
iii!i!i!i!!ili!ii!ii!i!i!
(1 0 era)
303A ''
(78.1 cm)
If countertop
opening width is greater than 30" (76.2 cm), adjust
the 3/8"(1.0 cm) dimension.
Countertop
must be level. Place level on countertop,
first side to
side, then front to back. If countertop
is not level, range will not
be level. Range must be level for satisfactory
baking conditions.
INSTALLATION
INSTRUCTIONS
A
Measure at locations marked A, B, C, D.
2. Measure from the floor to the underside of the range cooktop.
3.
t
A
] ......................
B
C
A. Distance from floor to underside of range cooktop
B. Range side frame
C. Cooktop
Your leveling height will be the difference between the
2 measurements you have just taken.
Excessive
Weight Hazard
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
1.
2.
Remove shipping materials, tape and film from the range.
Keep cardboard
bottom under range. Remove oven racks
and parts package from inside oven.
To place range on its back, take 4 cardboard corners from the
carton. Stack one cardboard corner on top of another.
Repeat with the other 2 corners. Place them lengthwise on
the floor behind the range to support the range when it is laid
on its back. Using 2 or more people, firmly grasp the range
and gently lay it on its back on the cardboard corners.
