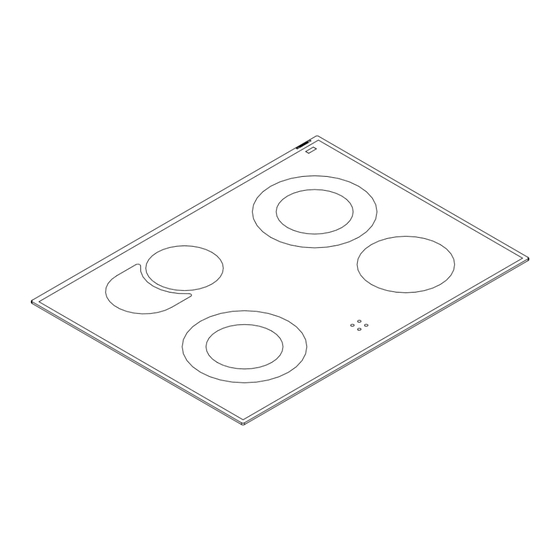

- Page 1 COOKTOP PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) 30" FREE STANDING ELECTRIC OVEN SELF CLEAN 5−08 Litho in U.S.A. (amd) (eeb) Part No. W10206131 Rev. A...
- Page 2 COOKTOP PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Trim, Cooktop Literature Parts 341196 Thermostat Right W10118260 Installation 3196160 Screw W10110687 Black Instructiions 9758799 Bracket, Indicator W10110685 White W10162196 Use &...
-
Page 3: Oven Parts
OVEN PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) W10206131... - Page 4 OVEN PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 41 W10111628 Transformer, Trim, Side 9757685 Guide, Side Panel Control Right 4451478 Support, Insulation 3400080 Screw W10109540 Black Body, Side 44 W10165135 Box, Terminal W10109570 White...
-
Page 5: Door Parts
DOOR PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) W10206131... - Page 6 DOOR PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part DESCRIPTION 9759413 Panel, Door 9757706 Glass, Inner 4451722 Insulation, Door 4457132 Retainer, Glass Hinge, Oven Door 9760579 Right 9760580 Left 9759225 Glass, Inner 4457114 Shield, Heat Bottom 9759229 Bracket, Glass Side...
- Page 7 DRAWER PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Support, Drawer 6 W10058460 Foot Handle, Drawer Rail 9761573BL Black 8274149 Thermistor 9757687 Right 9761573WH White 3196037 Foot Assembly 9757686 Left 9761573BT Biscuit 10 W10144430 Drawer...
-
Page 8: Control Panel Parts
CONTROL PANEL PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Control Panel 8 W10116195 Gasket, Vent 3196537 Screw 9761551BL Black Shield 9780271 Screw 9761551WH White Knob 12 W10109430 Gasket, Console 9761551BT Biscuit 9761566 Membrane, Switch... - Page 9 INTERNAL OVEN PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KERS807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 9760774 Element, Broil 9760769 Element, 14 W10116349 Nut 4449154 Screw Convection 15 W10116351 Blade, Fan 4448717 Rack, Oven 9755543 Jack, Meat Probe 9756690 Cover, Fan 9760768 Element, Bake...
- Page 10 TOP VENTING PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part DESCRIPTION 4451759 Vent, Exhaust 4455178 Elbow, Vent Top 9759320 Blower 4451758 Block, Foam 4455177 Elbow, Vent Bottom 6 W10143041 Bracket, Terminal 4449809 Screw (2) 4449040 Screw 4455352 Bracket, Blower W10206131...
-
Page 11: Optional Parts
OPTIONAL PARTS For Models: KERS807SBL02, KERS807SWW02, KERS807SBB02, KWES807SSS02 (Black) (Pure White) (Pure Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) SPLICING WIRES−−25FT. WIRING HARNESS PARTS LENGTH W10137680 Harness, Main 72017 White W10157935 Harness, Switch 261869 Cord Brown 242828 Wire (12 Ga.
