6.

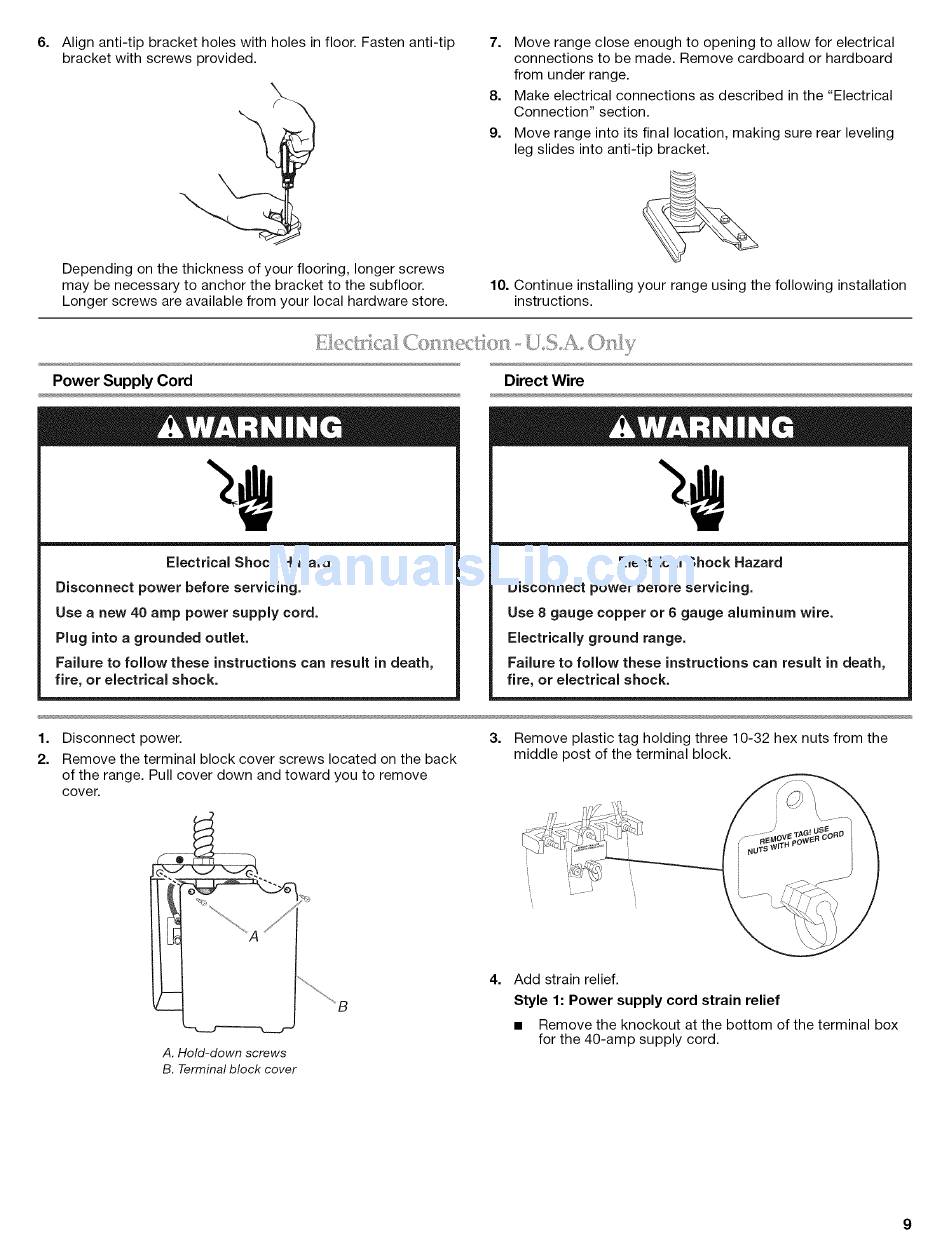

Align anti-tip bracket holes with holes in floor. Fasten anti-tip
bracket with screws provided.
p
Depending on the thickness of your flooring, longer screws
may be necessary to anchor the bracket to the subfloor.
Longer screws are available from your local hardware store.
7. Move range close enough to opening to allow for electrical
connections
to be made. Remove cardboard or hardboard
from under range.
8. Make electrical connections
as described in the "Electrical
Connection"
section.
9. Move range into its final location, making sure rear leveling
leg slides into anti-tip bracket.
10. Continue installing your range using the following installation
instructions.
Power Supply Cord
Electrical Shock Hazard
Disconnect
power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical
shock.
Direct Wire
Electrical
Shock Hazard
Disconnect
power before servicing.
Use 8 gauge copper
or 6 gauge aluminum
wire.
Electricaly
ground
range.
Falure
to folow
these instructions can result in death,
fire, or electrical
shock.
1. Disconnect
power.
2. Remove the terminal block cover screws located on the back
of the range. Pull cover down and toward you to remove
cover.
%%%%
/
'
A. Hold-down screws
B. Terminalblock cover
3. Remove plastic tag holding three 10-32 hex nuts from the
middle post of the terminal block.
4,
Add strain relief.
Style 1: Power supply cord strain relief
Remove the knockout at the bottom of the terminal box
for the 40-amp supply cord.
