KitchenAid KESS907SWW - on 30 Inch Slide-In Electric Range Parts List

30" slide−in electric oven self clean
Hide thumbs

Advertisement

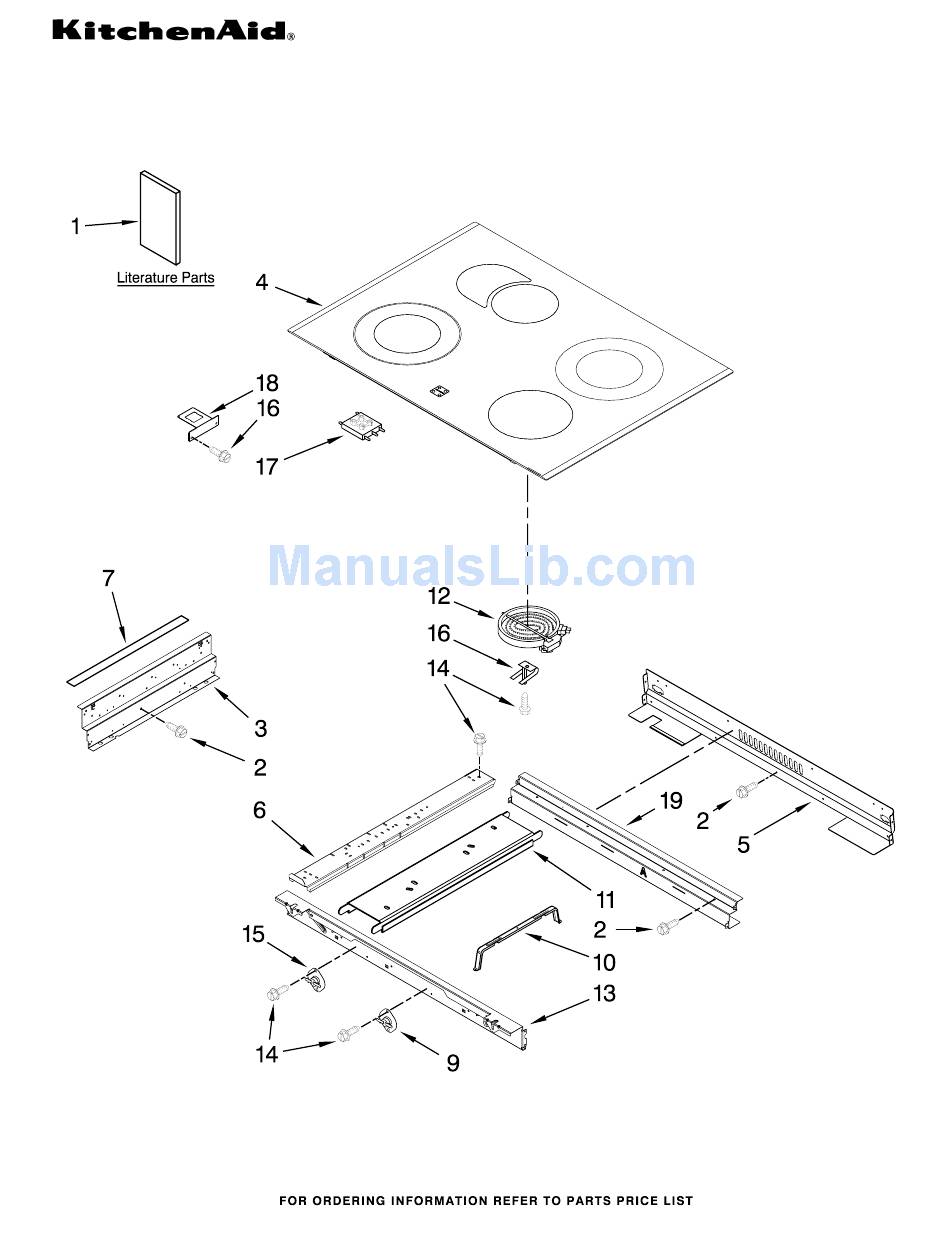

COOKTOP PARTS
30" SLIDE−IN
ELECTRIC OVEN
For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05
SELF CLEAN
(Black)
(Designer White)
(Stainless)
11−11 Litho in U.S.A. (ll) (psw)
Part No. W10471860 Rev. A
1

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KESS907SWW - on 30 Inch Slide-In Electric Range

  Summary of Contents for KitchenAid KESS907SWW - on 30 Inch Slide-In Electric Range

  • Page 1 COOKTOP PARTS 30" SLIDE−IN ELECTRIC OVEN For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 SELF CLEAN (Black) (Designer White) (Stainless) 11−11 Litho in U.S.A. (ll) (psw) Part No. W10471860 Rev. A...
  • Page 2 COOKTOP PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part DESCRIPTION Literature Parts Installation Instructions W10246119 English W10075750 Bi−Lingual W10246111 Use & Care Guide W10220962 Tech Sheet 9763467 Easy Set Guide 9757680 Anti−Tip Instructions Safe Cooking Tips 9762761 English W10065852 French 246119 Screw...
  • Page 3: Oven Parts

    OVEN PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) W10471860...
  • Page 4 OVEN PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4452152 Bracket, Mounting Vent, Bottom Lower Trim, Side 9757685 Guide, Side Panel W10153486 Black Right 4451478 Support, Insulation W10153488 White W10109540 Black Body, Side W10154789 Stainless...
  • Page 5: Door Parts

    DOOR PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) W10471860...
  • Page 6 DOOR PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part DESCRIPTION 1 W10277749 Panel, Door 9757706 Glass, Inner 4451722 Insulation, Door 4457132 Retainer, Glass Hinge, Oven Door 9760579 Right 9760574 Left 9759225 Glass, Inner 4457114 Shield, Heat Bottom 9759229 Bracket, Glass Side...
  • Page 7 DRAWER PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Support, Drawer Side, Base Handle, Drawer Rail 9759953 Right W10292375 Black 9757687 Right 9759954 Left W10292379 White 9757686 Left 6 W10058460 Foot W10292374 Stainless 9763501BL Support, Front 8274149 Thermistor...
  • Page 8: Control Panel Parts

    CONTROL PANEL PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Control Panel 9761745 Bracket, Knob, Smart Single W10190660 Black Thermostat W10190661 White W10193259 Black 8 W10116195 Gasket, Vent W10190662 Stainless W10193257 White Shield W10156261 Stainless...
  • Page 9 INTERNAL OVEN PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 9760774 Element, Broil 10 W10160868 Baffle, Convection 6 W10179152 Rack, Oven 4449154 Screw 7 W10207398 Element, 4455037 Tray, Hidden Bake 9755543 Jack, Meat Probe Hidden Bake 4450039 Cover, Bake Tray...
  • Page 10 TOP VENTING PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part DESCRIPTION 4451759 Vent, Exhaust 4455178 Elbow, Vent Top 9759320 Blower 4451758 Block, Foam 4455177 Elbow, Vent Bottom 6 W10143041 Bracket, Terminal 7101P426−60 Screw 4449040 Screw 4455352 Bracket, Blower W10471860...
  • Page 11: Optional Parts

    OPTIONAL PARTS For Models: KESS907SBL05, KESS907SWW05, KESS907SSS05 (Black) (Designer White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous PAINT, TOUCH−UP (1/2oz.) WIRING HARNESS PARTS 9782676 Anti−Tip Assembly W10137680 Harness, Main 72017 White Filler, Counter W10198758 Harness, Cooktop 261869 Cord Brown W10157935 Harness, Switch 72032 Black...

This manual is also suitable for:

Kess907sbl05Kess907sww05Kess907sss05
