Summary of Contents for Gefen Home Theater Scaler PLUS

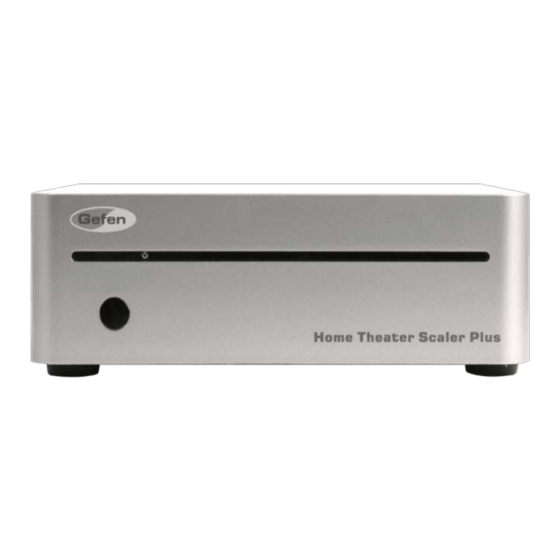

- Page 1 Home Theater Scaler Plus U S E R M A N U A L www.gefen.com...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. The Home Theater Scaler Plus is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved... -
Page 3: Table Of Contents
Introduction / Operation Notes Features Panel Layout Operation Controls and Functions Operation Controls and Functions Operation Controls and Functions / Color Settings Output Settings / OSD Adjustment / Information Using the HD Mate Scaler Plus RMT-SR-IR Installation Pin Configuration Specifications Terminology Warranty TABLE OF CONTENTS... -
Page 4: Introduction / Operation Notes
• The Home Theater Scaler PLUS is fully HDCP compliant. • The Home Theater Scaler PLUS has a 15-foot limit on how far it can transmit the HDCP (copyright protection) codes out of the HDMI output jack to the display. Connections to... -
Page 5: Features
• The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color, Intensified contrast and details, Vivid skin tone, Sharp edge, Accurate and independent color control Includes: (1) Home Theater Scaler PLUS (1) 6 ft HDMI cable (M-M) (1) 5V Power Supply (1) IR Remote control (1) User’s Manual... -
Page 6: Panel Layout
PANEL LAYOUT Composite Video and Component Video and Analog Audio 2 Input Analog Audio 1 Input Power S-Video On/Off Input Connects 5V Digital Audio and Digital Audio and Digital Audio and Power Supply HDmI Input 5 HDmI Output HDmI Input 4 IR Extender Eye... -
Page 7: Component Ypbpr
When connecting to a HDMI source, use an HDMl cable to connect the HDMl output of a STB or DVD to the HDMI input connector of the Home Theater Scaler PLUS. The Home Theater Scaler PLUS can automatically detect the input resolution of all five inputs. -
Page 8: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS After you power on the unit, press the menu button and it will bring up the main menu as follows: Video (or PC): When Video is selected, a sub menu as shown below, will come up. -
Page 9: Operation Controls And Functions / Color Settings
OPERATION CONTROLS AND FUNCTIONS Picture mode: There are 4 picture modes for customer to choose from. User: Select to adjust to your favorite setting and store it. Standard: Standard factory default setting for optimal display in a normal environment. Vivid: High saturation picture for optimal display in a bright room. movie: Picture for comfortable low brightness display in a dark room. -
Page 10: Output Settings / Osd Adjustment / Information
Output: The Home Theater Scaler Plus can output a wide variety of PC and HD resolutions as follows. DVI/HDMI (up to 165 mhz) 480i 480p 576i 576p 720p @ (50/60) 1080i @ (25/30) 1080p @ (50/60) VGA @ 60 SVGA @ 60... -
Page 11: Using The Home Theater Scaler Plus
Connect the HDMI/DVI displays to the HDMI output, with the proper cable and/or adapter, on the Home Theater Scaler. Connect the 5VDC power supply to the Home Theater Scaler PLUS. Controlling the Home Theater Scaler using the RMT-SR-IR: By Pressing Buttons... - Page 12 RmT8-IR INSTALLATION 1. Remove battery cover from the back of the RMT-SR-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down.
- Page 13 HDMI Pin Out Pin # Function Assignment TMDS Data2+ TMDS Data2- TMDS Data1 Shield TMDS Data0+ TMDS Data0- TMDS Clock Shield DDC/CEC Ground Hot Plug Detect HDmI PIN OUT CONFIGURATION Pin # Function Assignment TMDS Data2 Shield TMDS Data0 Shield Reserved (N.C.
-
Page 14: Specifications
SPECIFICATIONS Digital Video Amplifier Bandwidth...1.65 Gbps Component Video Bandwidth...350 Mhz Input DDC Signal...5 volts p-p (TTL) Input Video Signal...1.2 volts p-p Single Link Range...1080p/1920 x 1200 Input/Output HDMI Connector...Type A 19 pin female Analog Video Connector 1...3 RCA Component Analog Video Connector 1...1 RCA Composite or 1 S-video Digital Audio Connector...Optical TOSlink and Coax SPDIF Analog Audio Connector...2 RCA Power Supply...5V DC...
