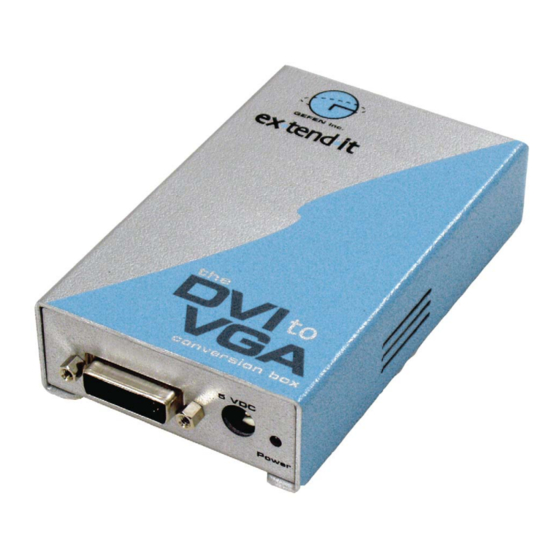

- Page 1 DVI to VGA Conversion Box U S E R M A N U A L www.gefen.com...
- Page 2 Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI to VGA Conversion Box is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the DVI to VGA Conversion Box Specifi cations Warranty... -
Page 4: Introduction
Our Committment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. Introduction The ex•tend•it DVI to VGA Conversion Box connects analog CRT or LCD monitors to... -
Page 5: Features
• Supports DDWG standard for DVI compliant monitors • Installs in seconds • DVI cables are used to connect the computer to the DVI input Includes: 6’ DVI cable (m-m) 5V Power Supply DVI to VGA Conversion Box User's Manual... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The Dvi To Vga Conversion Box
DVI input of the DVI to VGA Conversion Box. 3- Connect the power supply. Notes: If you are connecting the DVI to VGA Conversion Box to a source that reads EDID (most computers) the Box will report 1600x1200@60Hz. Gefen support can re-... -
Page 8: Specifi Cations
SPECIFICATIONS DVI Bandwidth ..................... 1.6 GHz VGA Bandwidth ....................350 MHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Maximum Single Link Range ................ 1920 x 1200 DVI Connector Type ....................DVI-I VGA Connector Type ....................HD-15 Power Consumption ................ -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 10 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
