Summary of Contents for Gefen DVI-2-HDSDISSL
- Page 1 DVI to HD-SDI Single Link Scaler U S E R M A N U A L www.gefen.com...
- Page 2 Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The DVI to HD-SDI Single Link Scaler is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Operation Notes Panel Descriptions Menu Functions Supported Input/Output Resolutions RMT-8HDS-IR Installation Firmware Update Procedure Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
INTRODUCTION Gefen's DVI to HD-SDI Single Link Scaler is the newest revision of our HD-SDI conversion line incorporating full single link DVI-D conversion scaled up to SD/HD-SDI single resolutions. Resolutions of up to 1080p are supported over the HDSDI link for those that want true “High Defi... -
Page 5: Operation Notes
On power up, the DVI to HD-SDI Scaler will automatically detect the input format of the input. The unit is controlled using the included remote. The following are the buttons for the RMT-8HDS-IR: - UP (Navigates cursor up) - LEFT (Navigates cursor left) - Enter (Accept Operation / Return to Menu) - RIGHT (Navigates cursor right) - DOWN (Navigates cursor down) -

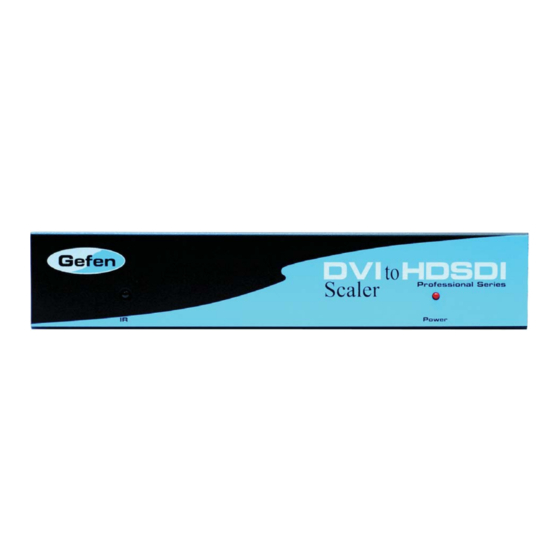

Page 6: Panel Descriptions
PANEL DESCRIPTIONS Power Indicator Infrared Eye Light DVI-D Input 5V Power RS-232 HD-SDI Connector Uplink Port Output... -
Page 7: Menu Functions
Aspect: -Full Screen: Stretches input to fi ll the Monitor. -Letter / Pillar Box: Sets the aspect ratio to fi t a letter or pillar box format. Panoramic Zoom feature -Extract: Feature to magnify the signal. -Extract Size: Adjusts signal magnifi cation. -Horizontal / Vertical Position: Moves the magnifi... - Page 8 MENU FUNCTIONS (..CONT.) Input: -Input Video Format: Auto Detect by default. Signal can be forced to a specifi c High-defi nition resolution. (Please see Supported Input/Output Resolutions for more information). -Input Graphic Format: Auto Detect by default. Signal can be forced to a specifi...
-
Page 9: Supported Input/Output Resolutions
SUPPORTED INPUT/OUTPUT RESOLUTIONS Input Video Formats Supported: 480i 720p/50 480p 720p/59.94 576i 720p/60 576p 1035i/59.94 720p/23.98 1035i/60 720p/24 1080i/50 720p/25 1080i/50M 720p/29.97 1080i/59.94 720p/30 1080i/60 Input Graphic Formats Supported: 640x350/85 1024x768/75 640x400/85 1024x768/85 640x480/60 1280x854 640x480/75 1152x864/75 640x480/85 1280x768/60 800x600/60 1280x960/60 800x600/75 1280x960/85... -
Page 10: Rmt-8Hds-Ir Installation
RMT-8HDS-IR INSTALLATION 1. Remove battery cover from the back of the RMT-8HDS-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 11: Firmware Update Procedure
FIRMWARE UPDATE PROCEDURE Please check http://www.gefen.com/kvm/support/download.jsp for fi rmware updates and procedures. -
Page 12: Specifi Cations
SPECIFICATIONS Input Video Bandwidth...1.65 Gbps Output Video Bandwidth...1.485 Gbps Maximum Input Resolution...2048x1080 Maximum Output Resolution...2048x1080p24 DVI Connector...DVI-I 29 pin female (digital only) SDI/HD-SDI Connector...BNC fe- male Data Port...Serial RS-232 Power Supply...5V DC Power Consumption...20 watts (Max.) Dimensions...6.5”W x 1”H x 6.75”H Shipping Weight...5 lbs.
