- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Digital Audio Decoder is a trademark of Gefen LLC Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Unit Layout Unit Descriptions Connecting the Digital Audio Decoder Wiring Diagram LED Indicators Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the Digital Audio Decoder. Your complete satisfaction is very important to us. GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFENTV DIGITAL AUDIO DECODER • This decoder supports both Linear PCM and Dolby Digital audio input formats. • The Digital Audio Decoder is not an amplifi cation device and cannot be used directly with earphones or other passive devices. -
Page 6: Features
FEATURES Features • Converts S/PDIF or TOSLINK digital audio to L/R analog audio • Digital interpolation fi lter and digital to analog converter (DAC) • Supports up to 6 channels (up to 5.1 Surround) of audio encoded in Dolby Digital •... -
Page 7: Unit Layout

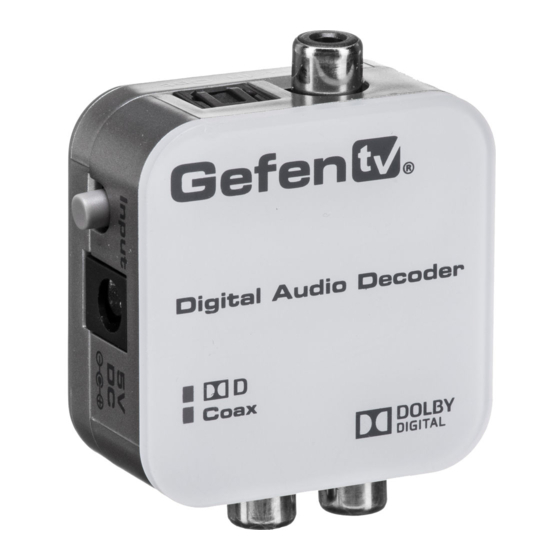

UNIT LAYOUT... -
Page 8: Unit Descriptions
UNIT DESCRIPTIONS Dolby Digital This LED indicator will glow bright red when a Dolby Digital signal is detected on the input. Coax This LED indicator will glow bright green when the Coax input is activated. Out (L/R) Connect L/R RCA stereo cables from these audio outputs to an external amplifi er. Coax In Use a coax audio cable to connect an external digital audio source to this S/PDIF connector. -
Page 9: Connecting The Digital Audio Decoder
CONNECTING THE DIGITAL AUDIO DECODER How to Connect the Digital Audio Decoder Connect a Coax and/or Optical cable between the audio source and the S/PDIF and/or TOSLINK connectors on the Digital Audio Decoder. Connect a pair of L/R RCA-type cables between the L/R output connectors on the Digital Audio Decoder and the Connect the included 5V DC power supply to the power receptacle on the Digital Audio Decoder. -
Page 10: Wiring Diagram
WIRING DIAGRAM Wiring Diagram for the Digital Audio Decoder DIGITAL AUDIO CABLE (Up to 200 ft) ANALOG AUDIO CABLE TV with TOSLINK Audio Output Converter Analog Audio Receiver GTV-DD-2-AA... -
Page 11: Led Indicators
OPERATING THE DIGITAL AUDIO DECODER LED Indicators The following illustrations below show the different states of audio input and the audio type which is displayed by the LED indicators on the Digital Audio Decoder. Pressing the Input button switches between Coax and Optical inputs. Coax LED = OFF, Dolby LED = OFF Coax LED = OFF, Dolby LED = RED Active Input: Optical (TOSLINK) - Page 12 OPERATING THE DIGITAL AUDIO DECODER Coax LED = GREEN , Dolby LED = OFF Coax LED = GREEN , Dolby LED = RED Active Input: Coax (S/PDIF) Active Input: Coax (S/PDIF) Audio Type: Linear PCM Audio Type: Dolby Digital Linear PCM Dolby Digital...
-
Page 13: Specifi Cations
SPECIFICATIONS Audio Inputs......................(1) Coax / (1) TOSLINK Audio Outputs......................Analog L/R, RCA-type Output Impedance..........................500 Ω Output Voltage......................1.8V RMS @ 0 dB (max.) Frequency Response........................< +/-0.5 dB Signal-to-Noise Ratio................> 90 dB (20 Hz - 20 kHz A-Weighting) Power Supply............................5V DC Power Consumption........................5 W (max.) Operating Temperature......................0°... -
Page 14: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefentv.com...
