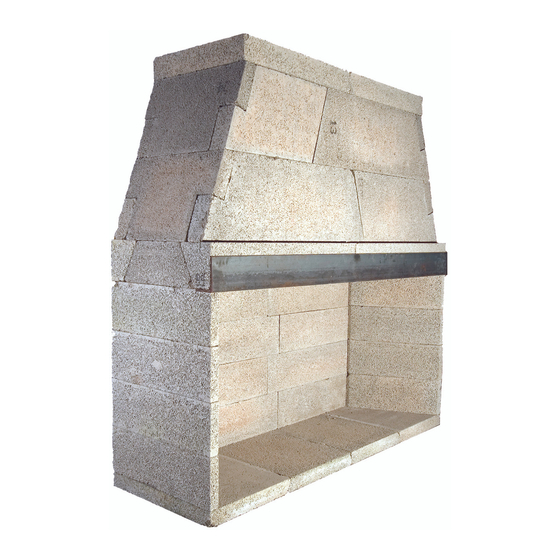

Isokern® MAGNUM® Fireplace
Installation, Operation, Maintenance and Owner's Manual
A PRODUCT OF EARTHCORE INDUSTRIES, LLC.
Important: This manual contains assembly rules, installation steps, guidelines, use and maintenance in-
structions for the MAGNUM Series fireplace, DM 54 chimney system, and Fire-Lite Application with the
FTF-13 Chimney System. This manual must become the property of and be reviewed by all current and
future users of this product. It is the responsibility of the general contractor and the installer of this product
to ensure that the instructions in this manual are followed exactly and, further that any allowed gas log ap-
pliance used in this product be installed in strict accordance with NFPA 58, NFPA 54/ANSI Z223.1 and the
gas log manufacturer's explicit installation, sizing and operation instructions. It is the responsibility of the
general contractor to provide adequate clearances from all firebox surfaces as specified in this manual.
Be Sure to Read Entire Manual Before Beginning Construction.
Contents of this manual may change without prior notification.
THIS FIREPLACE IS DESIGNED for USE with
SOLID WOOD LOGS, PLUMBED PROPANE
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
SBCCI NO. 9626
ICC Report NO. ESR-2316
IBC 2006, IRC 2006, IMC 2006
THIS MANUAL CAN ONLY BE REPRODUCED IN ITS ENTIRETY
with Fire-Lite Application
and DM Chimney System
MAGNUM Models 28, 36, 42, 48, 60 & 72
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference
(LP) or NATURAL GAS (NG), ONLY
INTERTEK TESTING SERVICES REPORT NO. 3159656MID-008
NYC-MEA 241-90-E
LA RR NO. 25483
Issued:December, 2009
Revision: 003
© 2007 Earthcore Industries, L.L.C.
