Isokern
Installation, Operation, Maintenance and Owner's Manual
Important: This manual contains assembly rules, installation steps and guidelines, and use and maintenance instructions for the MAGNUM Series
fireplace and chimney system. This manual must become the property of and be reviewed by all current and future users of this product. It is the respon-
sibility of the general contractor and the installer of this product that the instructions in this manual are followed exactly and, further that any allowed
gas log appliance used in this product be installed in strict accordance with NFPA 58, NFPA 54/ANSI Z223.1 and the gas log manufacturer's explicit
installation, sizing and operation instructions. It is the responsibility of the general contractor to provide adequate clearances from all firebox surfaces as
specified in this manual.
Be Sure to Read Entire Manual Before Beginning Construction.
Contents of this manual may change without prior notification.
THIS FIREPLACE IS DESIGNED for USE with
SOLID WOOD LOGS, PLUMBED PROPANE
(LP) or NATURAL GAS, ONLY
DO NOT USE or STORE GASOLINE or OTHER
FLAMMABLE LIQUIDS or GASES IN or NEAR
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
SBCCI NO. 9626
ICC Report NO. ER5017
THIS MANUAL CAN ONLY BE REPRODUCED IN ITS ENTIRETY

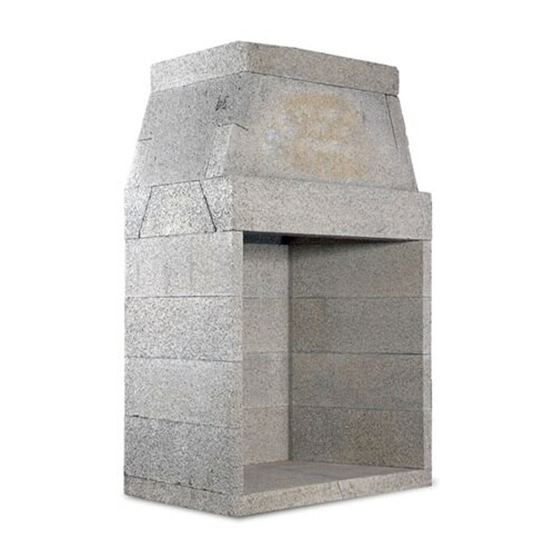

MAGNUM
®
and DM chimney system
MAGNUM MODELS 36, 42, 48, 60 and 72
A PRODUCT OF EARTHCORE INDUSTRIES, INC.
Keep This Manual for Future Use
the ISOKERN FIREPLACE
INTERTEK TESTING SERVICES REPORT NO. 632-912500 / 3082504-T1
Fireplace
®
Sep 03, 2008
SH
NYC-MEA 241-90-E
LA RR NO. 25483
Revised January 1, 2007 (w)
© 2005 ECI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGNUM 36 and is the answer not in the manual?

Questions and answers

Related Manuals for Isokern MAGNUM 36

Summary of Contents for Isokern MAGNUM 36

  • Page 1 DO NOT USE or STORE GASOLINE or OTHER FLAMMABLE LIQUIDS or GASES IN or NEAR the ISOKERN FIREPLACE WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information ..................................page 2 Intended Use Statement ..................................3 Safety Instructions ....................................4 Warnock-Hersey Listing Label ................................5 Assembled Firebox Dimensions ..............................6 - 8 Models 36, 42, 48 ..................................6 Models 60 and 72 ..................................18 Component List and Dimensions ..............................7 - 9 Models 36, 42, 48 ..................................7 Models 60 and 72 ..................................9 Required Clearances to Combustibles ...............................10...

  • Page 3: General Information

    DM chimney system installations require that the system be built upon a non-combustible concrete slab supported to footings with concrete or steel and designed to carry the total weight of the Isokern fireplace and chimney system. Minimum overall height requirements for the MAGNUM fireplace and chimney system is eighteen feet (18’-0”) when...

  • Page 4: Intended Use Statement

    Isokern is not responsible for other construction work around the fireplace unit. Note(s): Do not scale drawings. Illustrations in this manual are not to scale and are intended to show “typical”...

  • Page 5: Safety Instructions

    MAGNUM fireplace and DM 54 chimney systems unless written authorization is given by 18. Never leave children unattended when there is a fire Isokern. Failure to heed this warning may cause a fire hazard burning in the fireplace. and will void the Isokern warranty.

  • Page 6: Warnock-Hersey Listing Label

    - FACSIMILE - Figure 1 Isokern Fireplace and Chimney Systems are tested and listed to UL standards: UL 127, ULC S610, UL 1777 and UL 103HT. The listing label shown in Figure 1 above, outlines the listed clearances to combustibles and indicates that the units are suitable for use with solid fuel or listed gas appliances.
  • Page 7 Assembled Firebox and Smoke Dome Dimensions - Models 36, 42, 48 Top Plan View Right Section Front Elevation Plan Section Model Minimum Framing Weight 36” 43” 28” 69½” 38” 39” 19¼” 32 ” 25¼” 4¾” 5” 8” 17 ¼” 10 ¾” 46”...
  • Page 8 TOP - SLOPING (FRONT & REAR) Isokern reserves the right to make changes at any time, without notice, in design, materials and specifications and also to dis- continue styles and products. Please call 1-800-642-2920 for an Isokern dealer near you.

  • Page 9: Assembled Firebox Dimensions

    Assembled Firebox Dimensions - Models 60 and 72 Top Plan View Right Section Front Elevation Plan Section Model Minimum Framing Weight 60” 73 ½” 28” 85 ½” 38” 69 ½” 50” 54” 25 ¼” 4 ¾” 5” 8” 17 ¼” 10 ¾”...
  • Page 10 Components List & Dimensions - Models 60 and 70 Part Fireplace Quantity: Part Fireplace Quantity: No.: Size: No.: Size: 9 ½ 60” W 60” W ” 72” W 72” W SIDE WALL Part Fireplace Quantity: 4 ¾ No.: Size: ” 60”...

  • Page 11: Required Clearances To Combustibles

    (48”) from the fireplace opening. Note(s): 1. The MAGNUM fireplace is not rated for installation on a combustible floor system. Isokern units must sit upon a concrete support slab designed to bear the total installed weight of the MAGNUM fireplace and DM chimney sys- tem.
  • Page 12 Rough Framing Dimensions Rough Framing Dimensions (Figure 4) Model Width Height Depth Model 36 46” 71” 29.5” Model 42 52” 71” 29.5” Model 48 56” 71” 29.5” Model 60 77” 87” 29.5” Model 72 89” 87” 29.5” Note(s): 1. “B” includes the MAGNUM three inch (3”) thick base plate.
  • Page 13 1. Do not mix Earthcore Mortar with spirits or anti- freeze agents. Earthcore Mortar is squeezed from a grout bag onto the contact surfaces of the Isokern components as they are fitted Figure 6 together. It is important that a one-half inch (1/2") bead of mortar on all the components’...

  • Page 14: Assembly Instructions

    It may be convenient to dry set the first course of side wall and back wall into place on the Isokern base plate and Figure 11 then to trace their position on the base plate with a pencil.
  • Page 15 Assembly Instructions - Models 36, 42, 48 (cont.) to the top of each layer of wall components, then set the next course above into place. Earthcore Be sure to mortar all vertical joints of the side wall to Mortar back wall connection when setting each component to its mate.
  • Page 16 Assembly Instructions - Models 36, 42, 48 (cont.) The flange at all four sides of the cast iron damper should be supported by the damper plate’s top surface. Before adjusting the cast iron damper to its final position proceed to Step 8. Step 8: Set the back smoke dome component across the 1”...
  • Page 17 Earthcore Mortar. Check for complete sealing of each contact joint while assembly progresses (see “General Isokern Assembly Instructions” on page 12 of this manual for mortar information and instructions). Step 1: Base plate, part M61, four required. Two of these pieces are used “as is”...
  • Page 18 Assembly Instructions - Model 60 (cont.) a thirty-two and one-eigth inch (32-1/8") M66 back Wall (from STEP 3) on the base plate with its tongue end inter- locked into the firebox side wall at the end of the base plate (Figure 24).
  • Page 19 60 and 72. When using Isokern DM54 Chimney systems the damp- Figure 33 ers are installed at the top of the chimney runs. When using metal flue systems the dampers are installed at the top of the smoke dome or inline in the chimney system.
  • Page 20 Assembly Instructions - Model 60 (cont.) thirty-two inches (32") in height. Step 12: smoke dome top big, part 13, two required, to be “field modified”; smoke dome top medium, part 11, six required, to be “field modified”; smoke dome top sloping, part 34, four required, to be used “as is”.
  • Page 21 Note(s): The MAGNUM model 60 is designed to operate with two flues. The top of the smoke dome allows for the placement of two Isokern Modular Masonry DM 54 (14 inch I.D.) chimneys or two solid fuel listed metal chimneys of the appropriate size.
  • Page 22 Earthcore Mortar. Check for complete Figure 46 sealing of each contact joint while assembly progresses (see “General Isokern Assembly Instructions” on page 12 of this manual for mortar information and instructions). Step 1: Base plate, Part M61, four required . These pieces are used “as is”, without any field cutting required.

  • Page 23: Model 72

    Assembly Instructions - Model 72 (cont.) side wall component at the opposite end of the base plate. The square cut end of the thirty-two and three-fourths inch (32-3/4") M67 should make a snug butt joint with the square cut end of the thirty-seven inch (37") M67 component (Figure 51).
  • Page 24 60 and 72. When using Isokern DM54 Chimney systems the damp- ers are installed at the top of the chimney runs. When using metal flue systems the dampers are installed at the top of the smoke dome or inline in the chimney system.
  • Page 25 Note(s): The MAGNUM model 72 is designed to operate with two flues. The top of the smoke dome allows for the placement of two Isokern Modular Masonry DM 54 (14 inch I.D.) chimneys or two solid fuel listed metal chimneys of the...
  • Page 26 Assembly Instructions - Model 72 (cont.) appropriate size. Step 22: Smoke dome top plate small, part M77, two required, to be used “as is”. Figure 65 Place the two top plate small components on top of the second tier smoke dome arrangement so that they meet at the centerline of the smoke dome.
  • Page 27 APPLIANCE, THE FIREPLACE DAMPER MUST BE (if required by code) SET IN THE FULLY OPEN POSITION. Gas line for gas log sets used in the Isokern firebox can be Firebrick routed through the side wall, back wall or floor of the fire-...

  • Page 28: Fire Brick Installation

    Figure 73 Isokern makes no claims as to the performance of fire Fire brick floor brick or fire brick mortar(s). It is typical for heat stress...

  • Page 29: Flush Wall Finish Detail

    Flush Wall Finish Detail Drywall Flush with Firebox Front Framing Protrudes past Firebox Front Figure 75 Figure 76 MAGNUM fireplaces are designed to be installed so that the rough front face of the firebox and damper plate project into the room approximately one-half inch (1/2") beyond the face of the rough framing members that create the room’s wall surface.

  • Page 30: Required Clearances (When Sheathing Protrudes Beyond Front Of Firebox)

    Required Clearances (when sheathing protrudes beyond front of firebox) Figure 77 Front of Firebox reference 8“ Finished Opening 8” Sheathing protrudes in min. min. front of firebox Combustible Top of Damper Plate Sheathing 8” min. 8” min. Models 36,42 & 48 8”...

  • Page 31: Required Clearances To Combustible Framing

    (as determined through testing and as stated by the manufacturer) are not maintained due to construction subsequent to the installation of the Isokern unit. It is the general contractor's responsibility to assure that listed clearances to combustible framing and to insulation are maintained throughout the construction of the project subsequent to the installation of the Isokern unit.
  • Page 32 When MAGNUM fireplace installations are surrounded by walls that are to be insulated, the walls must have enough clear- ance to the Isokern unit in order to maintain the three inch (3”) minimum clearance to insulation. (Figure 82) Never spray the MAGNUM fireplace with any type of sealer, insulation or other material.

  • Page 33: Flush Wall Fire Brick Finish Detail

    Flush Wall Fire Brick Finish Detail Drywall flush Noncombustible with firebox front facing material Figure 83 Recommended Fire Brick Detail: When drywall is the wall finish at the MAGNUM face and flush with the rough face of the MAGNUM firebox and damper plate, it is recommended, when installing the required fire brick lining to the interior of the firebox, that the leading edge of the fire brick - at the floor and at the side walls of the firebox - be set flush with the MAGNUM's rough firebox front.
  • Page 34 Flush Wall Brick Finish Detail Important: Grout this gap with Earthcore Mortar to avoid creating a “false chimney” Figure 84 Important: Since there is no fire brick set along the top of the MAGNUM’s firebox opening, when setting the noncombus- tible finished facing material (code required and supplied by others) across the top of the firebox opening there may be a gap between the back of the noncombustible finish material and the rough front face of the MAGNUM damper plate (Figure 84).
  • Page 35 Interior Masonry Veneer Fireplace Finishes and Clearances Wood (Flammable) Sheathing 2” min. Masonry Veneer 2” minimum clearance to Steel L 6” max. Steel L Masonry Veneer Figure 85 Steel L 2” minimum clearance to Steel L Align Align 4” Bearing Figure 86 34 / 60...
  • Page 36 Masonry Veneer Construction Details Brick, stone or other masonry veneer finished fronts to MAGNUM fireplaces are possible. Special attention is required with regards to: (1) the placement of the proposed masonry veneer facing and its interface with the MAGNUM fire brick lining, and (2) the masonry veneer and clearance Wood (flammable) to combustible framing and sheathing from any steel “L”...
  • Page 37 Noncombustible Finsished Facing Requirements & Clearance to Combustible Trim - Models 36, 42, 48 Hearth Extensions. All MAGNUM fireplaces shall have hearth extensions of brick, concrete, stone, tile or other code approved noncombustible material. Suitable hearth extension material for the MAGNUM Combustible fireplace shall be placed on the hearth extension’s noncom- mantle shelf...
  • Page 38 Noncombustible Finsished Facing Requirements & Clearance to Combustible Trim - Models 60 and 72 Hearth Extensions. All MAGNUM fireplaces shall have hearth extensions of brick, concrete, stone, tile or other code Combustible approved noncombustible material. mantle shelf Suitable hearth extension material for the MAGNUM fireplace shall be placed on the hearth extension’s noncom- bustible substrate and must extend to at least thirty-two inches (32") in front of the fireplace’s finished opening and...

  • Page 39: Concrete Support

    11 for Isokern DM chimney component weights. The “footprint” area for each model is as follows: A. Model MAGNUM 36 @ 43” x 28” = 8.36 sq. ft. B. Model MAGNUM 42 @ 49” x 28” = 9.52 sq. ft.

  • Page 40: Dm Chimney System

    DM 54 Chimney System: General Information The DM 54 chimney is a dual module, refractory masonry chimney system. It is composed of two precast, mating com- ponents, the outer casing block and an inner liner. General Information: This chimney system is designed for installation in accordance with the National Fire Protection Standard for Chimneys and Solid Fuel-Burning Appliances, NFPA 211 and in accordance with codes such as ICBO, BOCA Basic/...

  • Page 41: Brickledge

    DM 54 Chimney Components List and Dimensions 1 2 ” 12” High Small 1 ¼ Inner Liner ” Crown Cap 3 ” 6 ” 6” High Inner Liner 1 ¼ ” Large Crown Cap 3 ” 1 2 ” Outer Casing 6 ”...

  • Page 42: Structural Support

    Inner Liner 2. Isokern is not responsible for site specific structural support details and load specifications for MAGNUM fire- place and DM chimney system installations.
  • Page 43 DM 54 Chimney Alignment: Where the chimney run is to be a straight vertical run the DM 54 outer casing block sits directly onto the Isokern smoke dome lid. The DM 54 outer casing block, properly set is intended to be flush with the back face of the firebox Outer smoke dome assembly (Figure 99).
  • Page 44 DM 54 Offset Chimney Block: For vertical DM 54 chimney to bypass overhead obstructions the Isokern offset chimney block is used. Offset blocks are six inch (6”) thick, single module chimney com- ponents, measuring twenty-one and one-half inch (21-1/2”) wide by twenty-five inches (25”) long.
  • Page 45 All support columns must bear onto proper noncombustible foundations. Isokern Offset Chimney Block Installation: Isokern offset chimney blocks are stacked in a stair step fashion with each successive block overhanging the previ- ous offset block by three inches (3"), allowing the flue to rise at an angle of thirty (30°) degrees off of vertical.
  • Page 46 Figure 106 ing with more offset chimney blocks. (Figure 108) Offset block Support Foundations: It is required that every third Isokern offset chimney block in the sequence be supported down to footings via concrete block or steel support columns. Plan Standard fireplace and DM 54 chimney systems carefully before foundations are laid to assure that proper footings are available to support Isokern offset blocks.
  • Page 47 DM 54 Chimney System: Installation Instructions (cont.) To calculate the distance of Isokern offset chimney travel in a straight line to the right, left or to the rear of the firebox/ smoke dome assembly, proceed as follows: Refer to Figure 109: temporarily dry set a DM 54 outer...
  • Page 48 Temporarily leave out the inner liner that fits this outer casing block. Set the Isokern brickledge onto the flat top surface of the outer casing in a full bed of Earthcore Mortar. Be sure to align the four two and one-half inch (2-1/2”) holes in the brickledge with the matching holes in the outer casing block below it.
  • Page 49 DM 54 chimneys. Load Capacity for DM 54 Brickledge: The sources of load delivered into the Isokern brick- ledge are: (1) the total physical load of brick, stone or other masonry veneer on the brickledge, and (2) loading due to the force of wind delivered against the exposed height of the chimney mass.
  • Page 50 The small crown cap is intended for use where DM 54 chimneys are to receive thin veneers and cultured stone that do not require the installation of the Isokern brickledge. The small crown cap is also suitable where DM 54 chimneys are to receive a stucco finish.
  • Page 51 Chase enclosures need to be built to local wind load requirements and shall be structurally independent of the Isokern chimney. As with all chimney installations, avoid overhead obstructions such as trees, power lines, etc.
  • Page 52 Class A metal or DM54 chimney systems are compatible with the 60 and 72 models. If the Isokern DM54 flue system is to be used and the height of the system is in excess of fifteen feet (15’), please consult with a local structural engineer.

  • Page 53: Common Chimney Terminations

    Common Chimney Terminations Two chimney terminations are offered by Isokern, the DM 54 large crown cap and the DM 54 small crown caps. These are cement crown caps designed to provide a weather cap to the DM 54 chimney system. Their design is typical of the cement caps found on traditional masonry chimneys.

  • Page 54: Class "A" Metal Flue

    Class “A” Metal Flue MAGNUM fireplaces are tested and listed for use with factory-built metal, Class “A” (solid fuel) chimneys as an option. (Figure 126) Class "A" Metal Flue Types: The selected factory-built metal chimney for use with the Standard fireplaces, at a minimum, must be listed by a rec- ognized agency for solid fuel and as tested to UL 103, for continuous use of one thousand degrees (1000°) Fahrenheit and intermittent use of seventeen hundred degrees (1700°)

  • Page 55: Summary

    These structures can reduce ambient air flow pressure as well as produce down draughts, Isokern fireplace. Grates allow for easy air flow up through either of which can impair fireplace drafting performance. the burning logs thus creating a more complete and efficient burning of the fuel.
  • Page 56 Clean the inner portion of the flue by using a flexible in the fully open position. handled chimney cleaning brush. Isokern does not limit the use of fireplace screens. For straight run flue the proper size brush can be pulled Follow screen manufacturer’s explicit use instructions when up through the flue from the firebox with the damper open.

  • Page 57: Notes

    Notes 56 / 60...
  • Page 58 Notes 57 / 60...
  • Page 59 Notes 58 / 60...
  • Page 60 (2) place of purchase; (3) address of installation; (4) name, address and phone number of the owner; and (5) a brief description of the defect. ISOKERN, or any division thereof, is not responsible for any labor costs or indirect costs incurred for the replacement of defective components.
  • Page 61 DuraChimney® II Simpson Dura-Vent PreRelease - DuraChimney® II DuraChimney II is an exceptional factory-built alternative to pre-fabricated masonry chimneys. DuraChimney II is a unitized, lightweight design which eliminates the need for field assembly of pipe sections, allowing for faster installation. DuraChimney II is designed to stay cool on the outside, to provide a hot draft on the inside, and to provide a fire-safe design that protects both the chimney and the building.
  • Page 62 Pipe Length DuraChimney II pipe is available in 12“, 18”, 36”, and 48“ lengths. To calculate the installed length of DuraChimney II pipe lengths, subtract 1 1⁄2” from each length of chimney pipe. *For stainless steel outer quote, call Customer Service. SIZE: STOCK # PCS/CTN...
  • Page 63 30˚ Elbow Use elbows to offset obstructions such as rafters, ridgepoles, or joists. 10”-16” DuraChimney II may have one pair of elbows, if needed. Offsets greater than 30° are not allowed. Elbows are not adjustable. SIZE: STOCK # PCS/CTN LIST 10DCA-E30 13”...
  • Page 64 Stabilizer Use to hold DuraChimney II in place. Use inside chase enclosures to stabilize chimney installation. Refer to fireplace manufacturer for additional requirements on use of Stabilizer. SIZE: STOCK # PCS/CTN LIST 10DCA-ST 13 3⁄ 8 ” 662492513590 19.00 10” 12DCA-ST 15 3⁄...
  • Page 65 Firestop Use in ceiling/floor penetrations above fireplace. Firestop is not required when passing through the roof. Fits on underside of ceiling. SIZE: STOCK # PCS/CTN LIST 10” 10DCA-FS 19 5⁄ 8 ” 13 3⁄ 8 ” 662492509920 30.50 12DCA-FS 21 5⁄ 8 ” 15 3⁄...
  • Page 66 Chase Top Flashing Encloses the top of a chase while providing a ventilation air passage to the chase. Includes spacer clips. SIZE: STOCK # PCS/CTN LIST 10DCA-CTF 16” 34” 662492654736 55.00 10” 12DCA-CTF 19" 36” 662492663615 58.00 12” 14” 14DCA-CTF 20"...
  • Page 67 Wall Strap Use to support and stabilize the chimney in interior or exterior installations to ensure a 2” clearance. Wall Straps are required every 8” on exterior of building only. SIZE: STOCK # PCS/CTN LIST 10DCA-WS 13 3⁄ 8 ” 15 15⁄16” 662492846636 63.50 10”...

  • Page 68: Warranty

    Warranty Simpson Dura-Vent (“Simpson”) warrants the products identified below to the original purchaser to be free from substantial defects in material or manufacturing for the lifetime of the product, if properly installed, maintained and used. This Warranty does not cover normal wear and tear, smoke damage or damage caused by chimney fires, or any Product that was: (1) purchased other than from an authorized Simpson dealer, retailer or distributor;...
