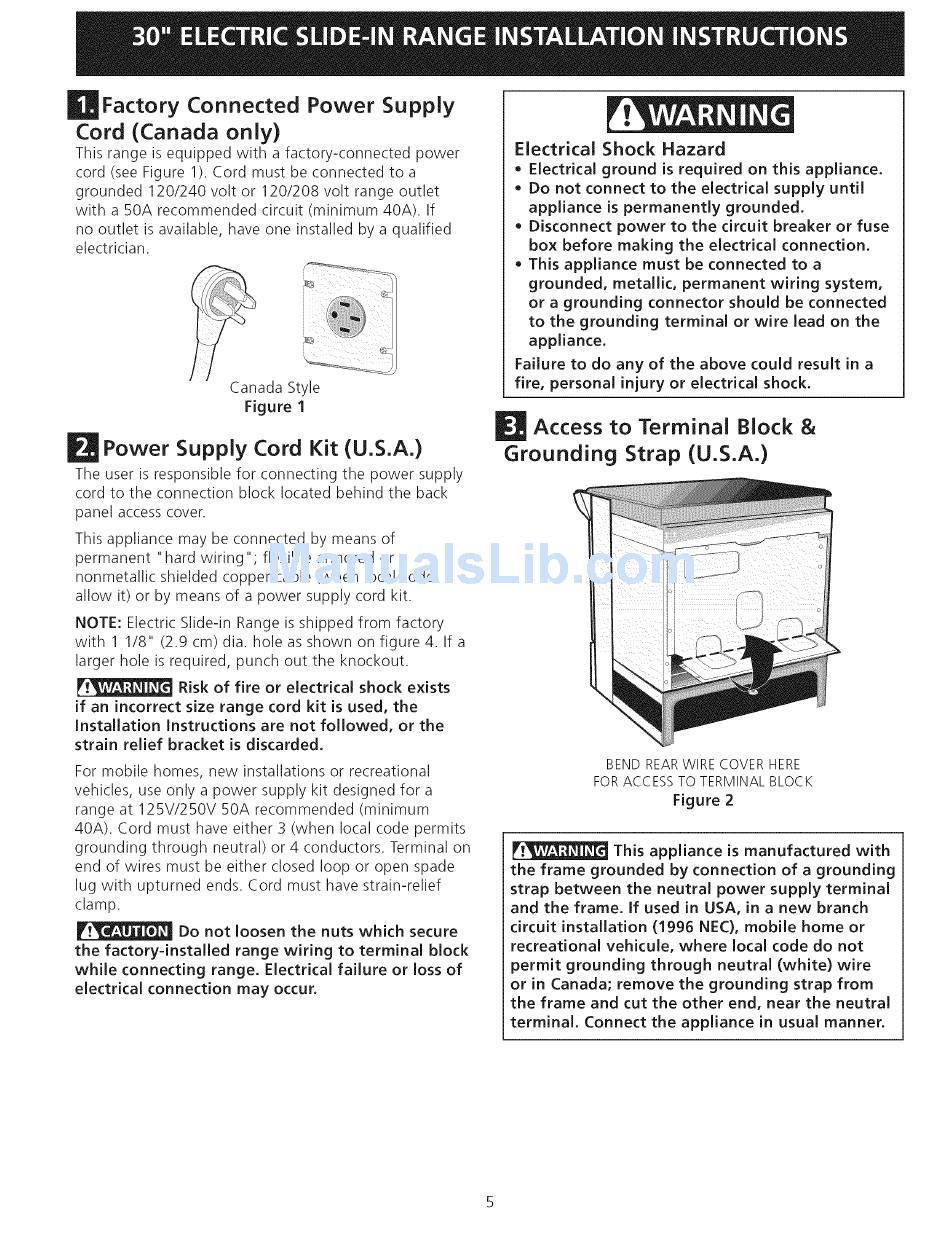

Factory
Connected
Power
Supply
Cord (Canada
only)
This range is equipped with a factory-connected
power
cord (see Figure 1). Cord must be connected to a
grounded 120/240 volt or 120/208 volt range outlet
with a 50A recommended circuit
minimum 40A). If
no outlet is available, have one installed by a qualified
electrician.
Canada Style
Figure 1
|
Power Supply Cord Kit (U.S.A.)
The user is responsible for connecting the power supply
cord to the connection block located behind the back
panel access cover.
This appliance may be connected by means of
permanent "hard wiring";
flexible armored or
nonmetallic shielded copper cable (when local code
allow it) or by means of a power supply cord kit.
NOTE: Electric Slide-in Range is shipped from factory
with 1 1/8" (2.9 cm) dia. hole as shown on figure 4. If a
larger hole is required, punch out the knockout.
Risk of fire or electrical
shock exists
if an incorrect
size range cord kit is used, the
Installation
Instructions
are not followed,
or the
strain relief bracket
is discarded.
For mobile homes, new installations or recreational
vehicles, use only a power supply kit designed for a
range at 125V/250V 50A recommended (minimum
40A). Cord must have either 3 (when local code permits
grounding through neutral) or 4 conductors. Terminal on
end of wires must be either closed loop or open spade
lug with upturned ends. Cord must have strain-relief
clamp.
Do not loosen the nuts which secure
the factory-installed
range wiring
to terminal
block
while
connecting range. Electrical failure
or loss of
electrical
connection
may occur.
Electrical
Shock
Hazard
o Electrical ground
is required
on this appliance.
Do not connect
to the electrical
supply until
appliance
is permanently
grounded.
Disconnect
power
to the circuit breaker
or fuse
box before
making the electrical
connection.
This appliance
must be connected
to a
grounded,
metallic,
permanent
wiring
system,
or a grounding
connector
should
be connected
to the grounding
terminal
or wire lead on the
appliance.
Failure to do any of the above could result in a
fire, personal
injury
or electrical
shock.
Access to Terminal
Block &
Grounding
Strap (U.S.A.)
BEND REARWIRE COVER HERE
FOR ACCESS TO TERMINAL BLOCK
Figure
2
This appliance
is manufactured
with
the frame grounded
by connection
of a grounding
strap between
the neutral
power
supply terminal
and the frame. If used in USA, in a new branch
circuit installation
(1996 NEC), mobile
home or
recreational
vehicule,
where
local code do not
permit
grounding
through
neutral
(white)
wire
or in Canada; remove the grounding
strap from
the frame and cut the other end, near the neutral
terminal.
Connect the appliance
in usual manner.
