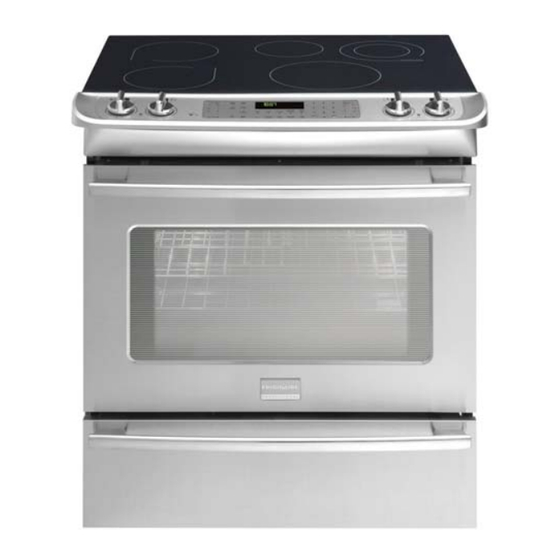

Frigidaire CPES3085KF1 Parts Catalog
30-inch slide-in electric range
Hide thumbs
Also See for Frigidaire CPES3085KF1:
- Service data sheet (16 pages) ,
- Use & care manual (44 pages) ,
- Installation instructions manual (32 pages)
Advertisement
Quick Links
FPES3085KF.jpg CFPES3085KFA.eps BCPES3085KF1.eps TFPES3085KFA.eps
DFPGS3085KFA.eps
318550103-1.eps 318550103-2.eps
Electrolux Major Appliances
North & Latin America
5855 TERRY FOX WAY
MISSISSAUGA, ONTARIO, CANADA L5V
3E4
Product No.
CPES3085KF1
37652376L95S1
Series
30" slide-in
Color
stainless
Market
Canada
Wiring Diagram
318550103
Owner's Guide
318205804
Installation Instructions 318201616
Service Data Sheet
318127057
Publication No.
5995544078
09/06/29
(EN/SERVICE/ECL)
377
30-INCH SLIDE-IN
ELECTRIC RANGE
Model No.
CPES3085K
©
Copyright
2009 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Frigidaire Frigidaire CPES3085KF1
Summary of Contents for Frigidaire Frigidaire CPES3085KF1
- Page 1 FPES3085KF.jpg CFPES3085KFA.eps BCPES3085KF1.eps TFPES3085KFA.eps ELECTRIC RANGE DFPGS3085KFA.eps 318550103-1.eps 318550103-2.eps Electrolux Major Appliances Model No. North & Latin America CPES3085K 5855 TERRY FOX WAY MISSISSAUGA, ONTARIO, CANADA L5V Publication No. 5995544078 09/06/29 (EN/SERVICE/ECL) © Copyright 2009 Electrolux Home Products, Inc. All rights reserved.
- Page 2 Publication No: 5995544078 CPES3085KF1 BACKGUARD CFPES3085KFA 06/09...
- Page 3 CPES3085KF1 Publication No: 5995544078 BACKGUARD POS. NO PART NO. DESCRIPTION 19 # 318922145 Panel Assembly, control, stainless, w/overlay-trim 20 # 316560144 Controller, electronic, ES530W3 318921300 Bracket, control mtg, (2) 318913101 Trim, vent, black, upper 318928500 Bracket, control panel, rear, (2) 316564406 Knob, control, stainless 318912907...
- Page 4 Publication No: 5995544078 CPES3085KF1 BODY 108A 166A 166A Part of 58B BCPES3085KF1 06/09...
- Page 5 CPES3085KF1 Publication No: 5995544078 BODY POS. NO PART NO. DESCRIPTION 318259224 Back, main 318225110 Panel, main back, upper 5303324184 Screw, 8-18 x 5/16, black, (4) 318258957 Shield, insulation, upper 318225210 Panel, bodyside, upper RH 318225211 Panel, bodyside, upper LH 318927600 Support, auto rack, (2) 318175508 Screw, leveling...
- Page 6 Publication No: 5995544078 CPES3085KF1 BODY 108A 166A 166A Part of 58B BCPES3085KF1 06/09...
- Page 7 CPES3085KF1 Publication No: 5995544078 BODY POS. NO PART NO. DESCRIPTION 89 # 318261215 Motor, latch assy 318296904 Panel, filler, black, RH 318296905 Panel, filler, black, LH 97A# 316442119 Board, power, 7 relay 5304401490 Screw, 6-18 x 1, (2) 318550200 Cover, fan, dual 108# 318073028 Motor, blower...
- Page 8 Publication No: 5995544078 CPES3085KF1 TOP/DRAWER TFPES3085KFA 06/09...
- Page 9 CPES3085KF1 Publication No: 5995544078 TOP/DRAWER POS. NO PART NO. DESCRIPTION 318304401 Drawer, body assembly 318300003 Panel, warmer drawer, side, (2) 318300301 Panel, warmer drawer, rear 318303901 Panel, drawer, black, inner 318298825 Panel, drawer, stainless, front 318259507 Glide, warmer, inner RH 318259506 Glide, warmer, inner LH 15 #...
- Page 10 Publication No: 5995544078 CPES3085KF1 DOOR DFPGS3085KFA 06/09...
- Page 11 CPES3085KF1 Publication No: 5995544078 DOOR POS. NO PART NO. DESCRIPTION 318260401 Trim, oven door, side, (2) 318262101 Cover, rear door, black, (2) 318260522 Baffle, door 318372000 Insulation, door, (2) 318372002 Insulation, door, (2) 316117500 Glass, oven door, heat barrier 318411610 Liner, oven door 5304472906 Screw, handle mtg, #10-24 x 1.5, (2)
-
Page 12: Wiring Diagram
Publication No: 5995544078 CPES3085KF1 WIRING DIAGRAM 06/09... - Page 13 CPES3085KF1 Publication No: 5995544078 WIRING DIAGRAM 06/09 # Functional Parts * Non-Illustrated Parts...
