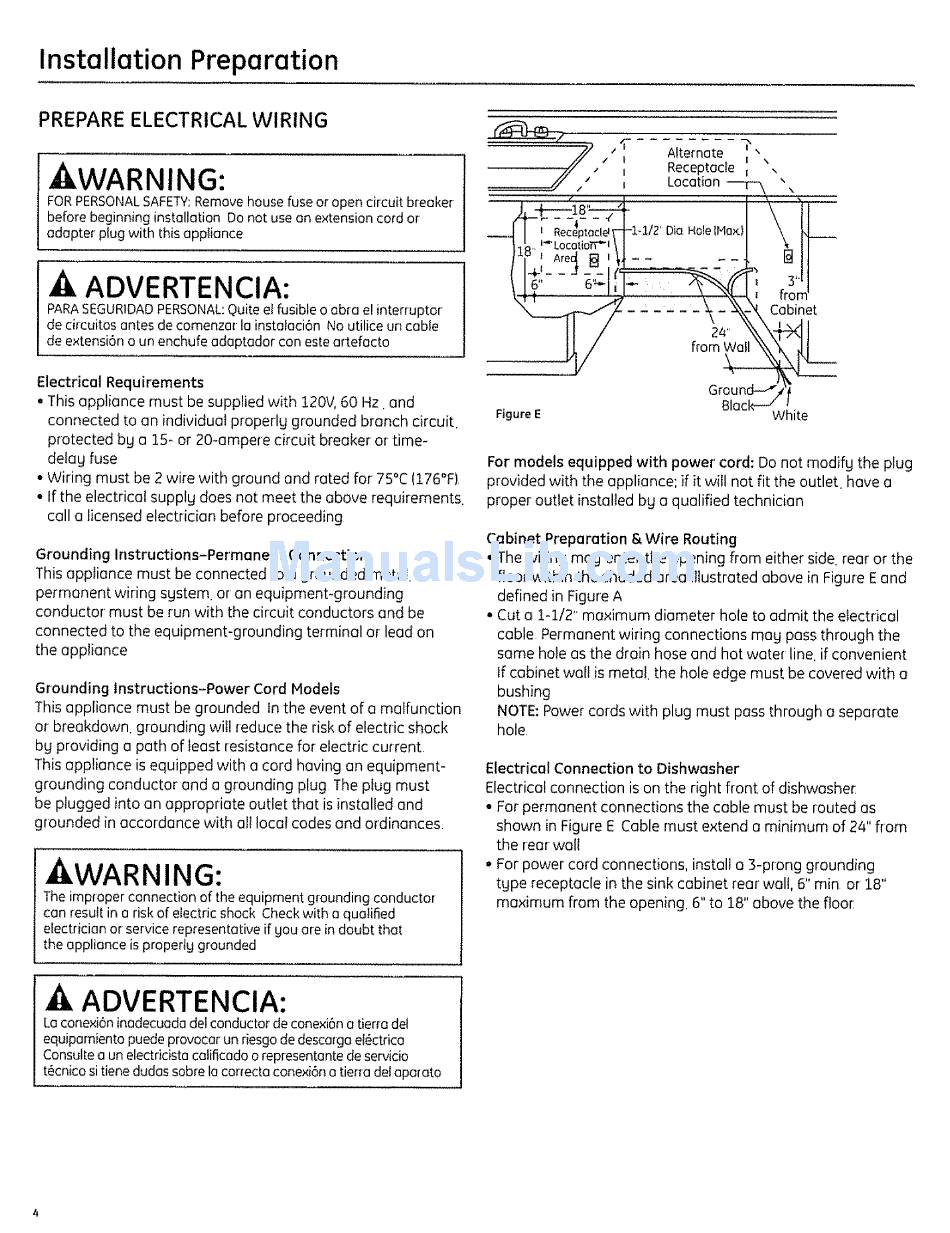

installation
Preparation
PREPARE ELECTRICAL
WIRING
AWARNING:
FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker
beforebeginninginstallation Donot useon extensioncordor
adapterplug with this appIiance
-A ADVERTENCIA:
PARA SEGUR1DAD PERSONAL: Quite e_ fusible o abra e! interruptor
de circuitosantes de comenzarla insta_aci6nNoutilice un cable
de extensi6no un enchufeadaptadorcon esteartefacto
Electrical Requirements
• This appliance must be supplied with 120V,60 Hz and
connected to an individual properlg grounded branch circuit.
protected bg a 15- or 20-ampere circuit breaker or-time-
detag fuse
• Wiring must be 2 wire with ground and rated for 75°C(176°F)
• If the electrical supplg does not meet the above requirements.
call a licensed electrician before proceeding
Grounding Instructions-Permanent
Connection
This appliance must be connected to a grounded metal.
permanent wiring sgstem, or an equipment-grounding
conductor must be run with the circuit conductors and be
connected to the equipment-grounding terminal or-lead on
the appliance
Grounding Instructions-Power
Cord Models
This appliance must be grounded in the event of a malfunction
or breakdown, grounding will reduce the risk of electric shock
bg providing a path of least resistance for electric current,
This appliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug The plug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
kWARNING:
The improper
connection
of the equipment
grounding
conductor
can resuR in a risk of electric shock
Check with a qualified
electrician
or service representative
if gou ore in doubt that
the appliance
is propertg grounded
ADVERTENCIA:
La conexi6n inadecuada del conductor de conexi6n a tierra del
equipamiento puede provocar un riesgo de descarga eI6ctrica
Consultea un electddsta calificado o representante de servicio
t6cnico si tiene dudas sabre la correcto conexi6n a tier_a del aparato
1
I
Receptacle
_
"
II
Location \
! ',
--41
'
Receptac!#_-l-1/2'DiaHolelMax
_\\
, Am04 a '
....
all
-\_-N
_, Cabinet
24"
i
fro
Figure E
white
For models equipped with power cord: Do not modifg the plug
provided with the appliance; if it will not fit the outlet have a
proper outlet installedbg a qualified technician
Cabinet Preparation & Wire Routing
• The wiring mag enter the opening from either side. rear or the
floor within the shaded area illustrated above in Figure E and
defined in Figure A
° Cut a 1-1/2' maximum diameter hole to admit the electrical
cable Permanent wiring connections mag pass through the
same hole as the drain hose and hot water line. if convenient
If cabinet wall is metal, the hole edge must be covered with a
bushing
NOTE:Power cords with plug must pass through a separate
hole
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwashe[
• For permanent connections the cable must be routed as
shown in Figure E Cable must extend a minimum of 24" from
the rear wall
• For power cord connections, install a ]-prong grounding
tape receptacle in the sink cabinet rear wall, 6" rain or 18"
maximum from the opening. 6" to 18" above the floor
