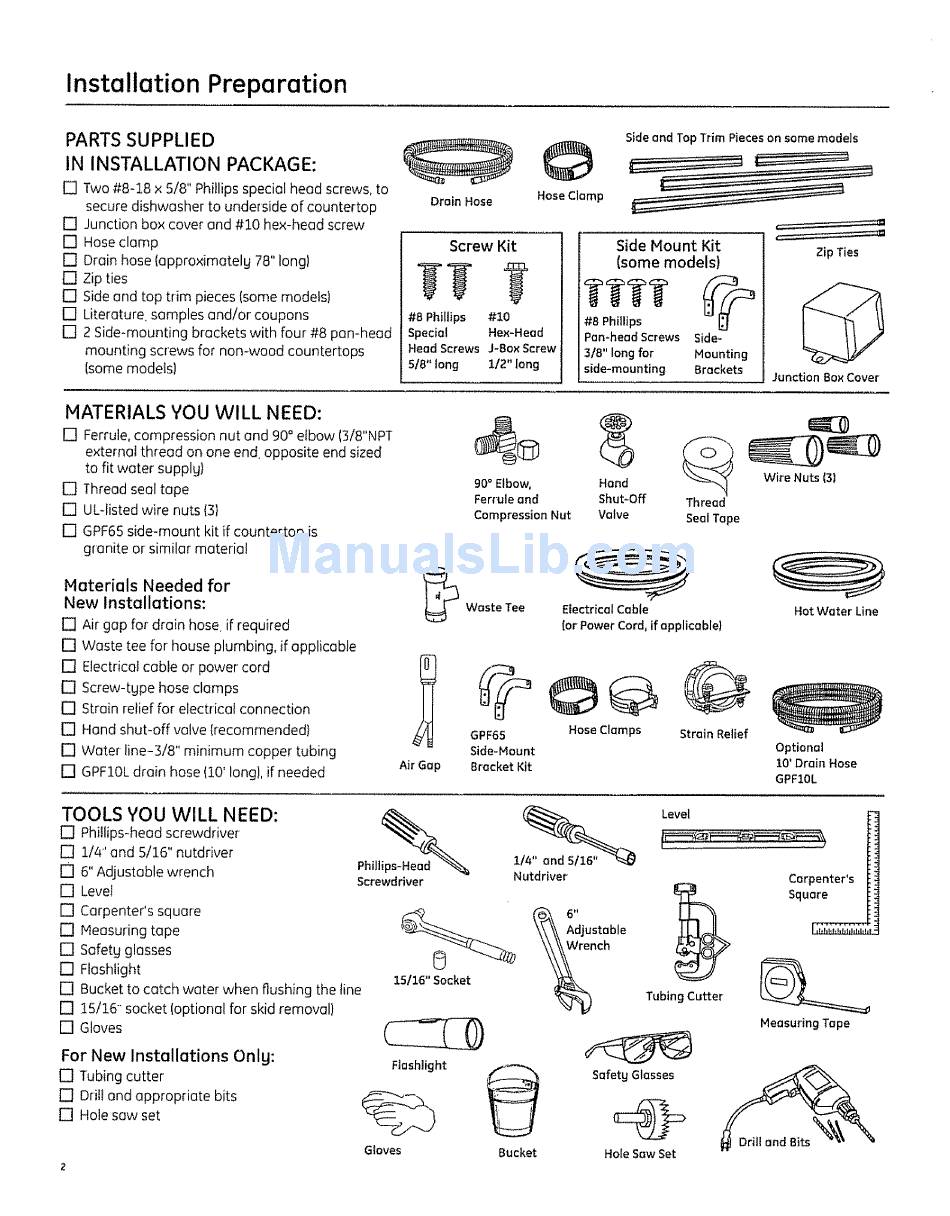

Installation
Preparation
PARTS SUPPLIED
IN INSTALLATION
PACKAGE:
rq Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop
[] Junction box cover and #10 hex-head screw
[] Hose clamp
[] Drain hose (approximately 78" long)
[] Zip ties
[] Side and top trim pieces (some models}
[] Literature samples and/or coupons
[] 2 Side-mounting brackets with four #8 pan-head
mounting screws for non-wood countertops
Isome models}
Drain Hose
©
Hose Clamp
Side and Top Trim Pieces on some models
Screw
Kit
gg ?
#8 Phillips
#!0
Special
Hex-Head
Head Screws J-BOXScrew
518" long
112" long
Side Mount Kit
(some models)
#B Phillips
Pan-head Screws
3/8" long for
side-mounting
Side-
Mounting
Brackets
,===:=:======_
_==:==:=======
Zip Ties
Junction BoxCover'
MATERIALS
YOU WILL NEED:
[]
Ferrule, compression
nut and 90 ° elbow (3/8"NPT
external thread on one end. opposite end sized
to fit water supplgt
[]
Thread seal tape
[]
UL-listed wire nuts (3}
[]
GPF65 side-mount
kit if countertop
is
granite or similar materiel
Materials Needed for
New Installations:
[]
Air gap for drain hose if required
[]
Waste tee for house plumbing, if applicable
[]
Electrical cable or power cord
[]
Screw-tgpe
hose clamps
[]
Strain relief for electrical
connection
[]
Hand shut-off valve (recommended}
[]
Water line-3/8"
minimum
copper tubing
[]
GPFIOL drain hose (10' Iongl, if needed
Air'Gap
90° Elbow,
Hand
Ferrule and
Shut-Off
Thread
Compression Nut
Valve
Seal Tape
Waste Tee
Electrical Cable
(or Power Cord, if applicable}
GPF65
HoseClamps
Strain Relief
Side-Mount
B{_cket Kit
Wire Nuts (3)
Hot Water Line
Optional
10' Drain Hose
GPF10L
TOOLS YOU WILL NEED:
[]
Phillips-head screwdriver
[]
1/4" and 5/16" nutddver
[]
6" Adjustable wrench
[]
Level
[]
Carpenter's square
[]
Heasuring tape
[]
Safetg glasses
[]
Flashlight
[]
Bucket to catch water when flushing the line
[]
!5/!6
socket (optional for skid removal)
[]
Gloves
Phill_
Screwdriver
Nutdriver
15116"Socket
\_nch
Level
Tubing Cutter
Carpenter's
Square
Measuring Tape
For New Installations
Onlg:
[]
Tubing cutter
[]
Drill and appropriate
bits
[]
Hole saw set
Flashlight
Gloves
Bucket
Safetg Glasses
Hole Saw Set
