WIND DATA
6.5.4

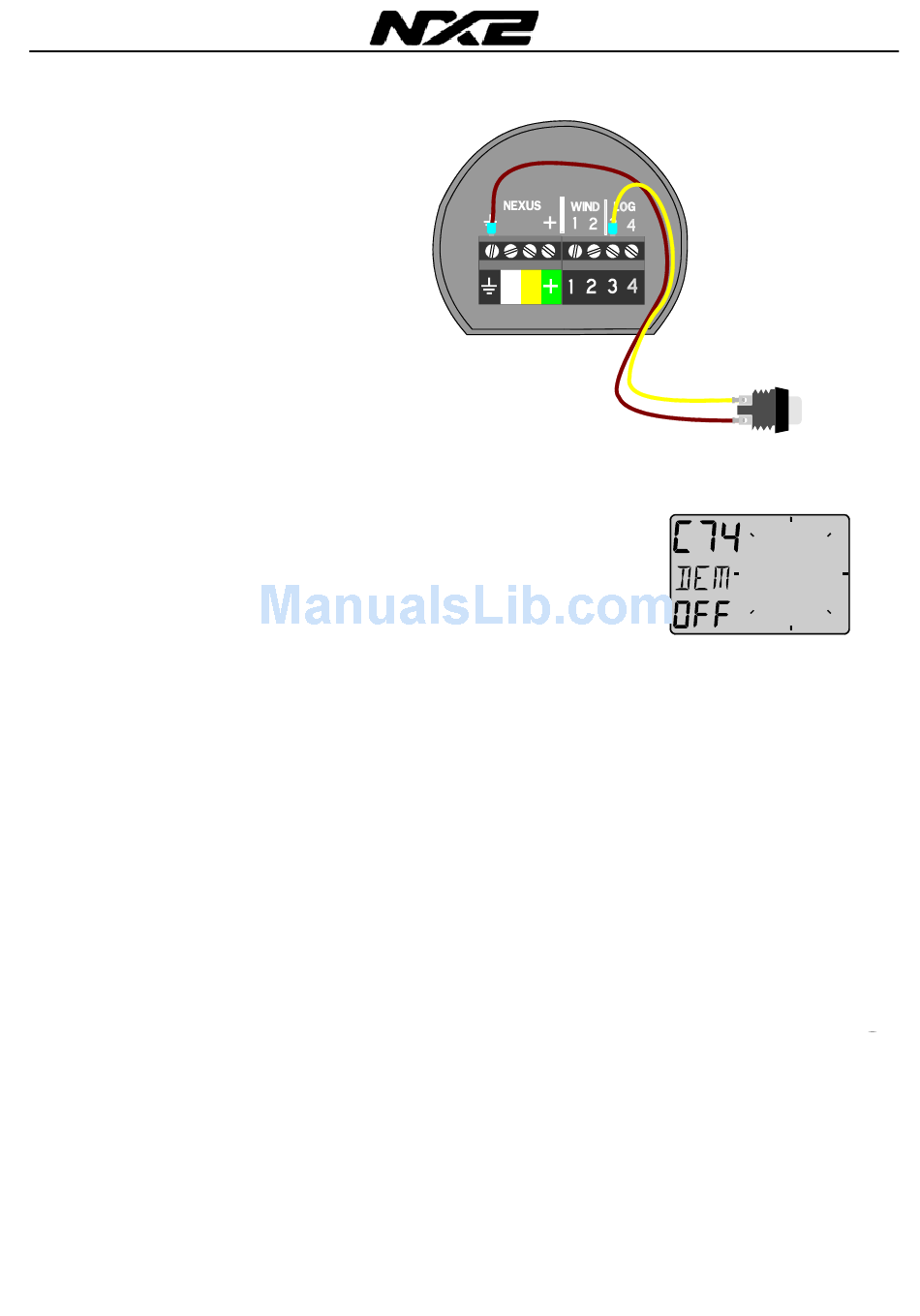

Connection of trim button

Connect the trim button as per the
drawing. The button should make
connection when pressed. It is also
possible to connect more than one
button in parallel, for example one on
starboard and one on port.
Article number
for the push button: 19763.
6.5.5

C74 Demo PAGE

The Wind Data instrument has a built in demonstration PAGE. All
values are simulated in this PAGE. It is convenient to learn the
functions of the instrument by using this PAGE.
Every 7th second the text DEM will appear to alert you that demo
PAGE is selected.
4-31
