C50 Wind Settings

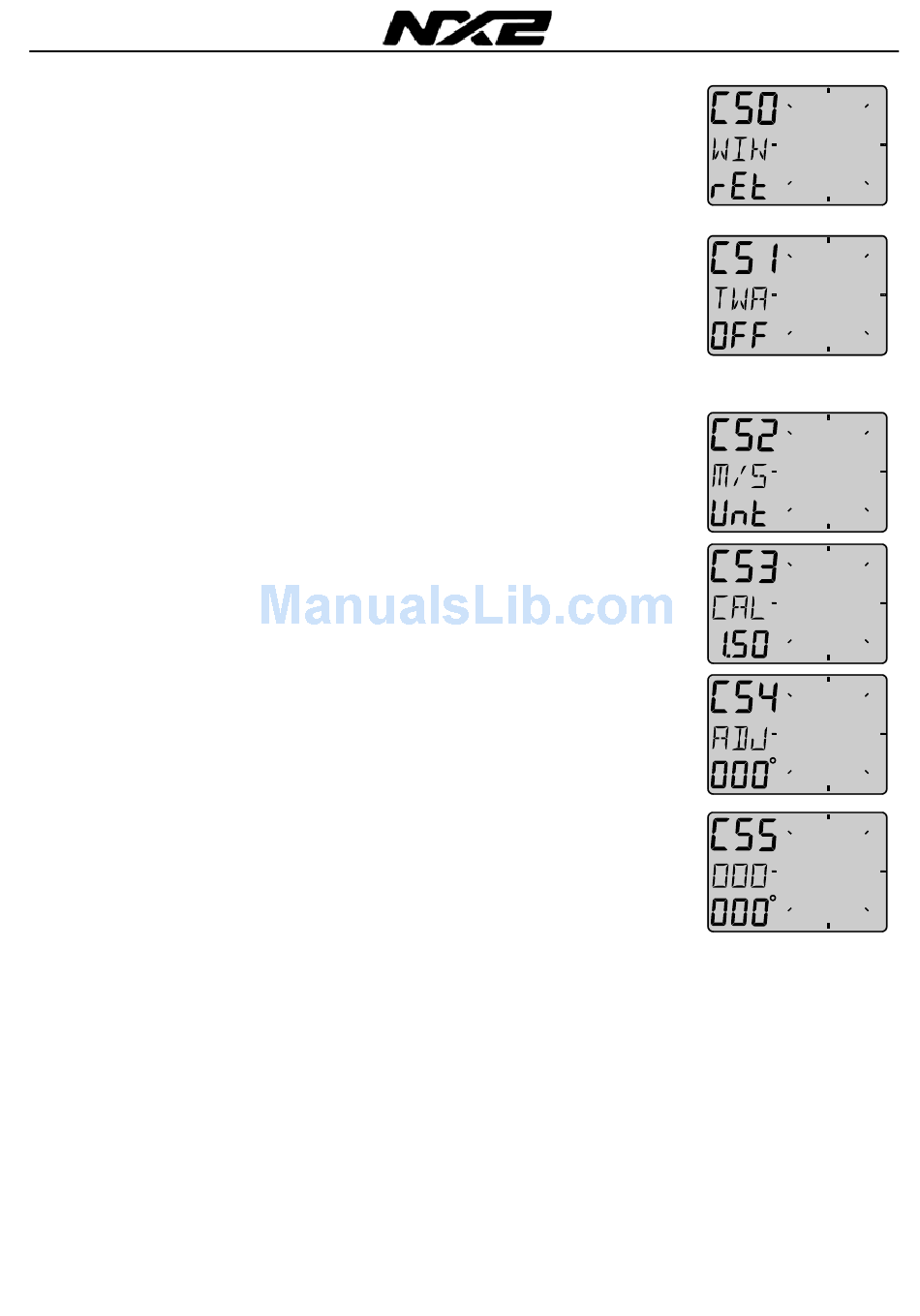

To return to normal PAGE, press SET when the text [rET] is
displayed.
6.4.1 C51 Network setting of true or apparent Wind
angle
Select true [TWA] or apparent Wind angle [AWA] as main function.
The optional analogue Wind instrument will display the same
selection. All Multi Control instruments which have the calibration
code 63 set to [WIA] will display what is selected in C51.
6.4.2

C52 Unit for Wind speed

Unit for Wind speed [KTS] for (KnoTS), [M/S] for (Metres/S) and
[BF] for (Beaufort).
6.4.3

C53 Wind speed calibration

Do not change this factory setting.
6.4.4

C54 Adjustment of Wind angle

Mast top unit misalignment adjust value or the so called "A-fault",
makes it possible to adjust any horizontal angle.
Example: If the Wind angle is +4° when you sail/drive the boat
straight into the Wind, set the calibration value in C54 to 356°.
6.4.5 C55-C62 Calibration table for the Wind
transducer
In channels C55 to C62 you set the calibration values for the mast
top unit. Each mast top unit is individually calibrated for best
accuracy. See the separate Wind calibration certificate supplied
with each mast top unit. Each of the inter-cardinal directions are
calibrated.
C55 000 000°
C56 045 045°
C57 090 090°
C58 135 135°
C59 180 180°
C60 225 225°
C61 270 270°
C62 315 315°
Set the calibration value according
to the provided calibration certificate
