Calibration

To get the most out of your NX2 instrument, it is important to
carefully calibrate the instrument. The calibration values are stored
in a non volatile memory.
To access calibration PAGE, press and hold SET more than 2 seconds.
To select a calibration code, press MINUS, PLUS and PAGE as required.
To return to normal operation PAGE, press SET when the text
return (RET) is displayed.
The different calibration routines are divided into five groups:
C10 - C15 = USR, User settings.
C20 - C24 = BSP, Log transducer and temp calibrations.
C30 - C33 = HDC, Compass settings.
C50 - C64 = WND, Wind transducer settings/calibrations.
C70 - C74 = CON, Configuration of the NX2 system.
To change a calibration value, press SET.
To select calibration value, press MINUS, PLUS and PAGE as
required.
To lock the selected value, press SET.
6.1

C10 User settings

To return to normal PAGE, press SET when the text [rET] is
displayed.
6.1.1

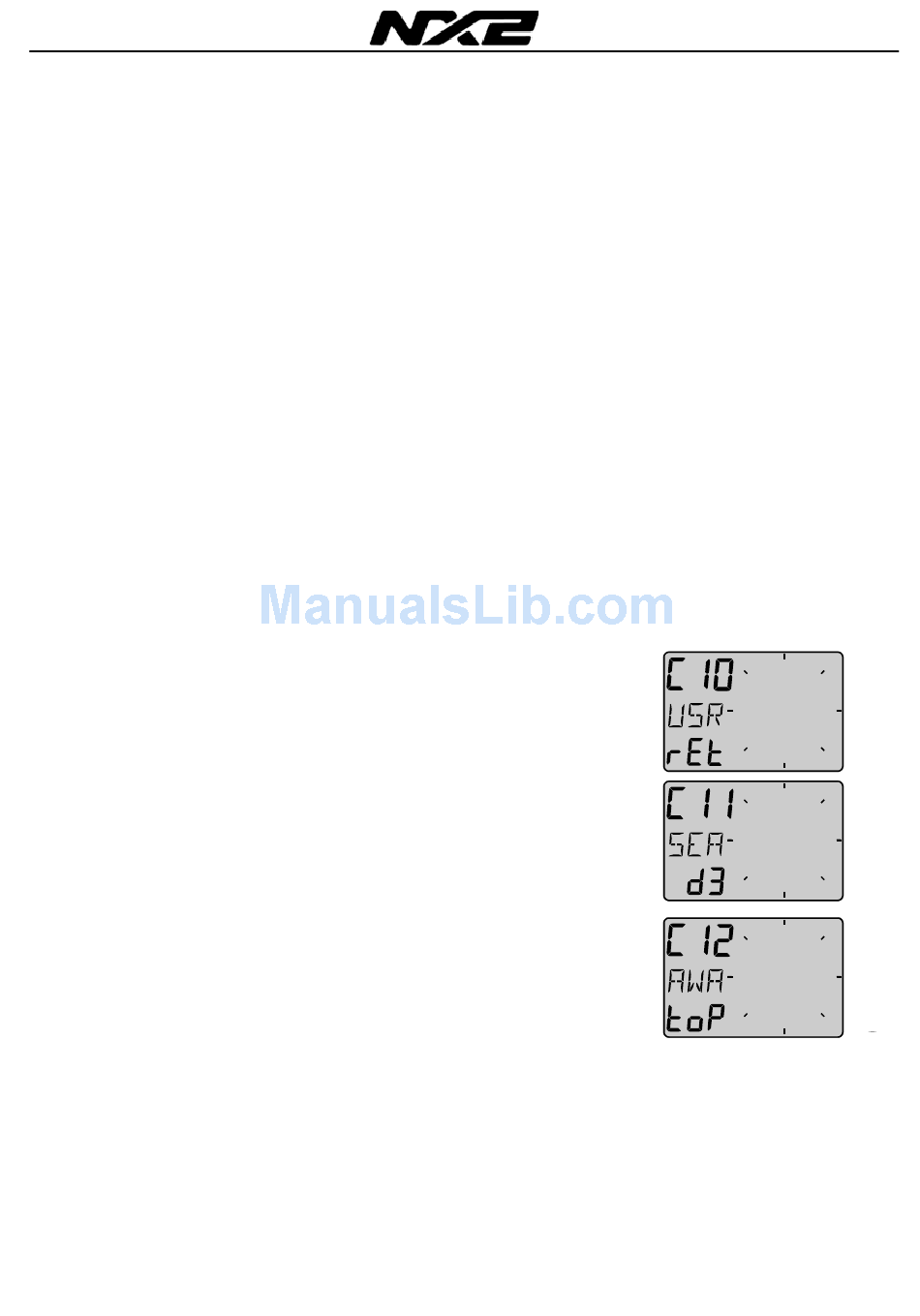

C11 Select the dampening

The dampening will affect Wind angle, Wind speed, boat speed and
VMG. Dampening is between d0 (0s) and d9 (1'20).
To change the dampening, press SET and change with PLUS or
MINUS and enter with SET.
6.1.2

C12 Select main information

Select function to be display at the top left of the LCD display.
There is five options.
AWA Apparent Wind Angle.
TWA True Wind angle by the use of log transducer.
AWS Apparent Wind speed.
TWS True Wind speed by use of log transducer.
WIA Main setting for the NX2 system. When selected,
all instruments using WIA will be system affected and
following
the set-up in the Multi Control setting C51.
