3.1

Installing cable

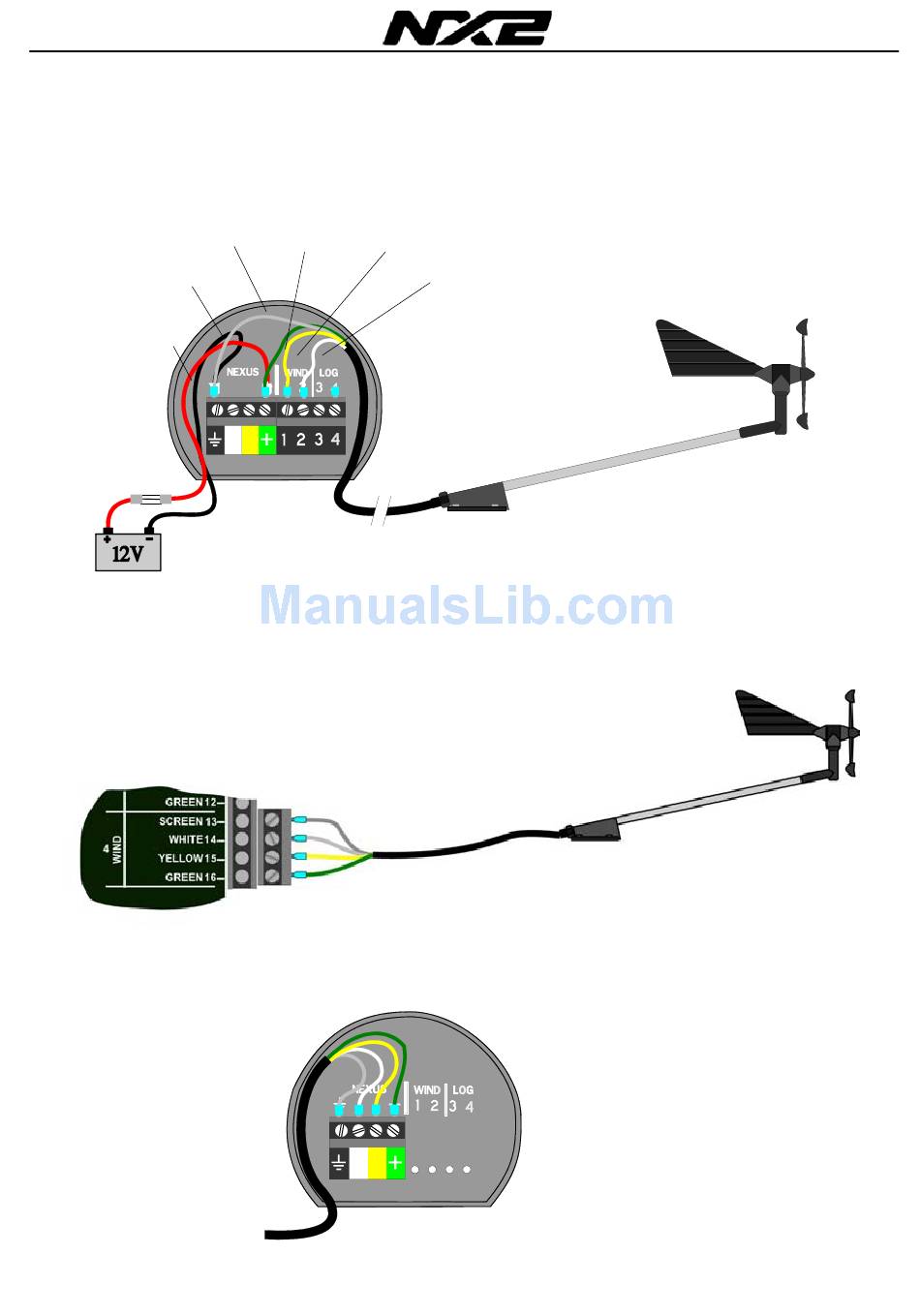

The power cable is connected via a 3A fuse from the battery or at the boats fuse panel
and direct to the instrument or Server. One red and one black power wire is included.
Note, set C71 On (see 6.5.1)
Always connect a 3 AMP fuse between Power supply and instrument.
Scree
Black
Red
3A Fuse
3.2

Connections in Nexus Network

If you already have a Nexus Network i.e. a Server, it is more practical to connect the
transducer to the Server due to the single instrument cable installation. Note, set C71
OFF (see 6.5.1)
Server
The instrument is then connected to the Server's Nexus Network terminal (pin 5, 6, 7
and 8) or any instrument .
From Server or other
NEXUS instrument
Green Yellow
White
4-10
WIND DATA
Transducer
