WIND DATA

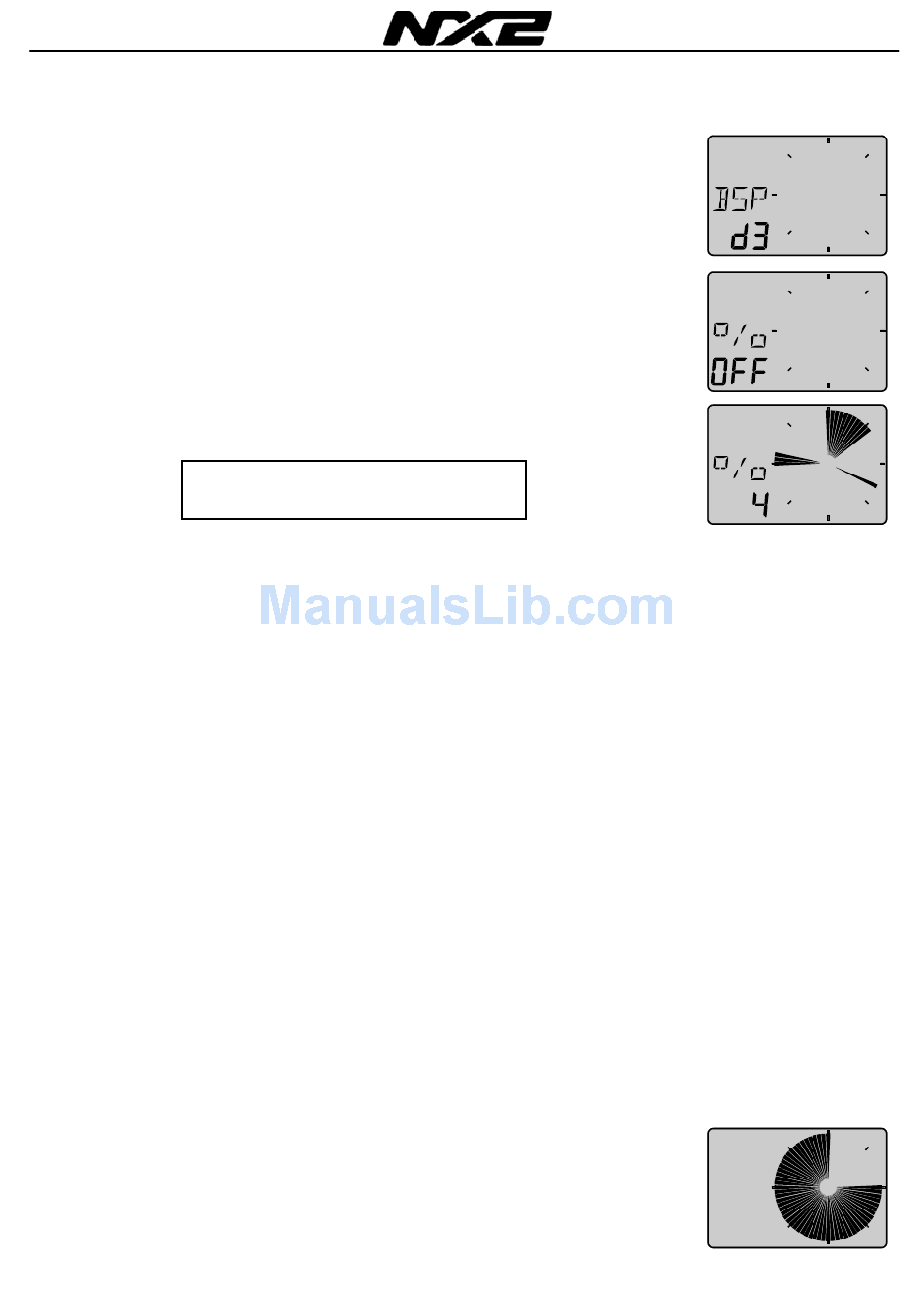

When [BSP] (or other function) is selected, the dampening [d3] is
flashing. Select dampening level and confirm with SET.
The text [% OFF] is then displayed to show that the function is
selected, but no reference is yet set.
Press SET to set [BSP] reference.
The display will now show you the text [%] toggling with text [BSP]
or whatever trim you have selected.
The speed variation is expressed in % from set value.
Press the SET every time you wish to set a new trim reference
value. There is an option to use an external trim button to set a new
trim reference. See more in the calibration.
Each sector represents 2%
5.6

More functions in a Nexus Network

By adding (or using) the Wind Data instrument in the Nexus
Network, more functions will be added if the corresponding
transducer is connected.
The Wind Data functions may be added or removed by the user.
The Wind Data instrument can be used in a small Network together
with the Multi, Log or analogue instrument, without a Server.
In order to make the installation easy when using both log and Wind
transducer in a small Network we recommend you to install with
connection kit art.no. 21453. Only one cable will carry the signals to
the instrument, then there is one Network/power cable to the Multi
or Log instrument. (See 3.3).
When using the Wind Data in a bigger Network with more then 3
transducers, we recommend you to use the NX2 Server.
Only one cable will be used to connect all instruments. You will also
have the NMEA 0183 input/output.
If you need to be able to read the depth information on more then
one instrument, the Server is the only choice.
Network bonus function:
4-20
