WIND DATA
6.2.3

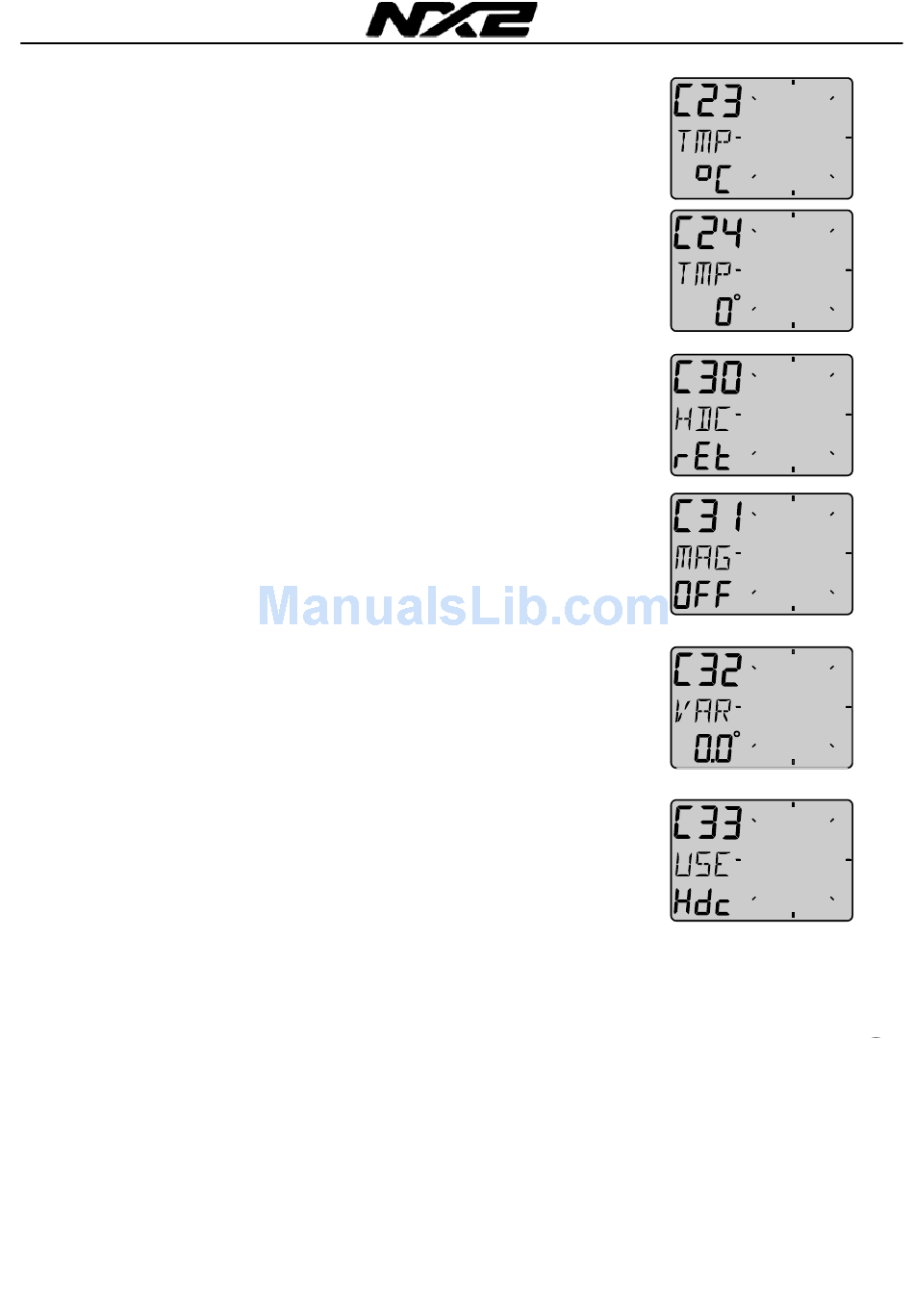

C23 Unit for temperature

Select degree Celsius [C] or degree Fahrenheit [F].
6.2.4

C24 Temperature offset

By adding a positive or [-] negative value here, it will be added as
an offset before displayed as the temperature.
6.3

C30 Compass Settings

To return to normal PAGE, press SET when the text [rET] is
displayed.
6.3.1

C31 True or magnetic course

This function is only used when the instrument is connected in the
Nexus Network. [MAG On] will display bearing, course and Wind
direction as magnetic. The LCD indication is (MAG). Select [OFF]
to display all as true.
6.3.2

C32 Magnetic deviation

Set the deviation direction first, i.e. [+E] (East) or [W] (West), then
enter the magnetic value in 1/10 of a degree.
6.3.3

C33 Reference for Compass, static or GPS

Select heading Compass [Hdc] when the Compass transducer is
connected to the Nexus Network (recommended).
Select course over ground [COG] when a GPS navigator is
connected, but no Compass.
Select STA for static use at fixed installations, such as at the yacht
club, airfield, ferry berth and so on.
In static PAGE you may mount the transducer in the direction of
North, or if not possible, you may adjust the transducer
electronically. See C54, 6.4.4.
Note! [COG] as reference will only operate properly when the boat
is doing speed over ground.
