To return to normal mode, press KEY when the text [rET] is displayed.
In the configuration you will be able to tell the Nexus Network where you
have installed the log and Wind transducer.
This is important because you may optionally install those transducers at
the Server too.
4.5.1

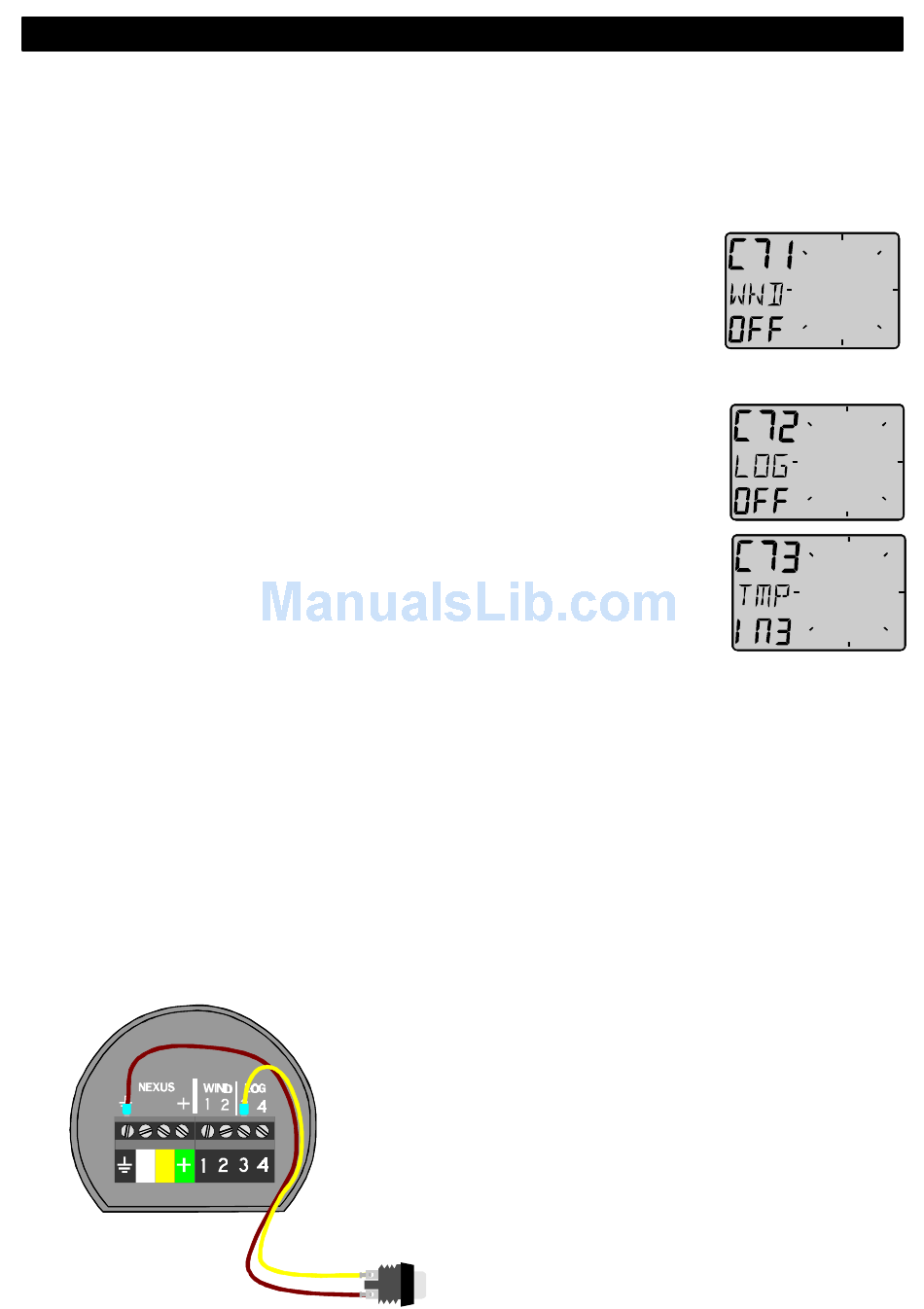

C71 Wind-master

[On] = the Wind transducer is connected at the Wind Data instrument.
[OFF] = the Wind transducer is connected at the Nexus Server.
4.5.2

C72 Log-master

[On] = the log transducer is connected at the Wind Data instrument.
[OFF] = the log transducer is connected at the Nexus Server.
4.5.3

C73 Function on terminal In3

Select function on the terminal pin 3. The following functions are available:
[TMP] Standard temperature function from the log transducer.
[TRM] Use the external trim button for the STEER Pilot function.
[SPT] Use the external trim button for the SPEED TRIM function.
[MOB] Use the external trim button for the M.O.B. function.
[Roll] Use the roll sensor to compensate Wind speed and angle.
(Not yet available, at the time for this manual).
When the selection roll is made, further settings in calibration can be
made to correct the offset angle. See C68 5.4.8. You may still use the
water temperature by connecting the log transducer at the Server.
When Speed Trim [SPT] is selected, a press on the external trim button
will transmit the trim command on the Network to all instrument. To be
able to set both the STEER reference and the TRIM reference, the
optimum way is to connect one trim button for speed to the Wind
instrument and connect one trim button for Compass and Wind angle to
the Server. Such a installation gives you the opportunity to trim speed
and angle at two separate buttons.
5: CALBRATION
4.5.4 Connecti
on of trim
button
Connect the trim button as
per the drawing. The button
should make connection
when pressed. It is also
possible to connect more
than one button in parallel, for
example one on
