- Page 1 ® XTENDEX Series ST-2FODVI-LC DVI Extender via Fiber Optic Cable Installation and Operation Manual FIBER-D-LCLC-50-xxM (Sold Separately) MAN115 Rev Date 06/29/2009...
- Page 2 TRADEMARK XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2009 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 System Requirements ..............................3 Installation ..................................3 Self-EDID Programming Procedure ..........................6 Troubleshooting................................7 Product Specifications..............................7 Warranty Information............................... 8 TABLE OF FIGURES Figure 1- Schematic connection diagram of optical DVI extension modules..................2 Figure 2- Connection of the power adapter to the transmitter......................3 Figure 3- Connection of the power adapter to the receiver ........................ -
Page 4: Introduction

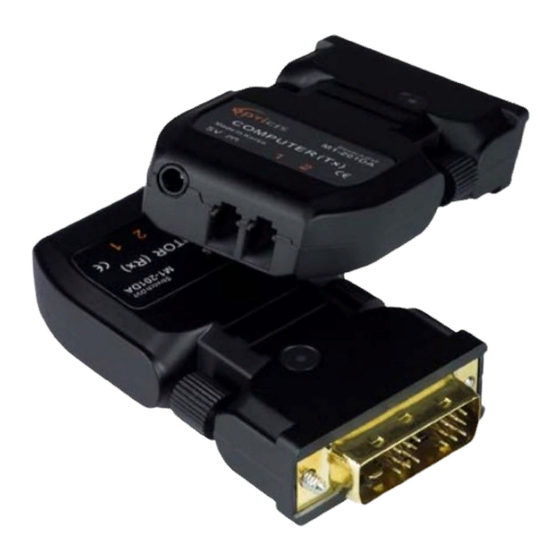

INTRODUCTION The XTENDEX® ST-2FODVI-LC DVI Extender via Fiber Optic Cable locates a single link digital DVI display away from a computer up to 4,920 feet (1,500 meters) using duplex singlemode fiber optic cable and 1,640 feet (500 meters) using duplex multimode fiber optic cable with LC style connectors. -
Page 5: Figure 1- Schematic Connection Diagram Of Optical Dvi Extension Modules
• User’s Manual Materials required but not supplied: Fiber optic cable to run between the receiver and transmitter- Available from NTI: FIBER-D-LCLC-50-xxM duplex multi-mode LC 50-Micron Fiber Optic Cable (xx = 20,30,40,50,100,300,500 meters) Use duplex multimode LC 50-micron fiber optic cable to extend up to 1640 feet... -
Page 6: System Requirements
DVI graphic controllers. AC/DC Power Adapter Technical Advisory The transmitter (Tx) module of the ST-2FODVI-LC may be powered with either the included AC power adapter or your graphic card, depending on the power supply capability of the graphic card you are using. -
Page 7: Figure 3- Connection Of The Power Adapter To The Receiver
4920 feet (not supplied) ADAPTER (supplied) ST-2FODVI-LC TRANSMITTER ADAPTER (supplied) ST-2FODVI-LC RECEIVER Figure 4- Connection of optical fibers Note: Both single-mode and multi-mode fiber are applicable to ST-2FODVI-LC up to 1640 feet. Beyond 1640 feet, single- mode fibers must be used. -
Page 8: Figure 5- Connection Of The Transmitter To The Dvi Source
NTI XTENDEX DVI FIBER OPTIC EXTENDER 6. Plug the transmitter to the DVI receptacle of the DVI source (such as a PC). ST-2FODVI-LC TRANSMITTER PC (VIDEO SOURCE) Figure 5- Connection of the transmitter to the DVI source Note: We recommend NOT to use any intermediate cable or adapter between the transmitter and the DVI source to avoid undesirable performance degradation. -
Page 9: Self-Edid Programming Procedure
Use THE Self-EDID programming feature if the resolution of the display is not UXGA(1600x1200) because the default resolution setting of the ST-2FODVI-LC is preset at 1600x1200, 60Hz. Follow these steps to record the EDID of the display into the transmitter unit. -
Page 10: Troubleshooting
NTI XTENDEX DVI FIBER OPTIC EXTENDER TROUBLESHOOTING The monitor displays only black screen. − Ensure that all plugs and jacks used by external power supplies are firmly connected. Ensure the blue LED is illuminated. − Ensure that the DVI ports are firmly plugged-in to the PC and display. -
Page 11: Warranty Information
NTI XTENDEX DVI FIBER OPTIC EXTENDER WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
