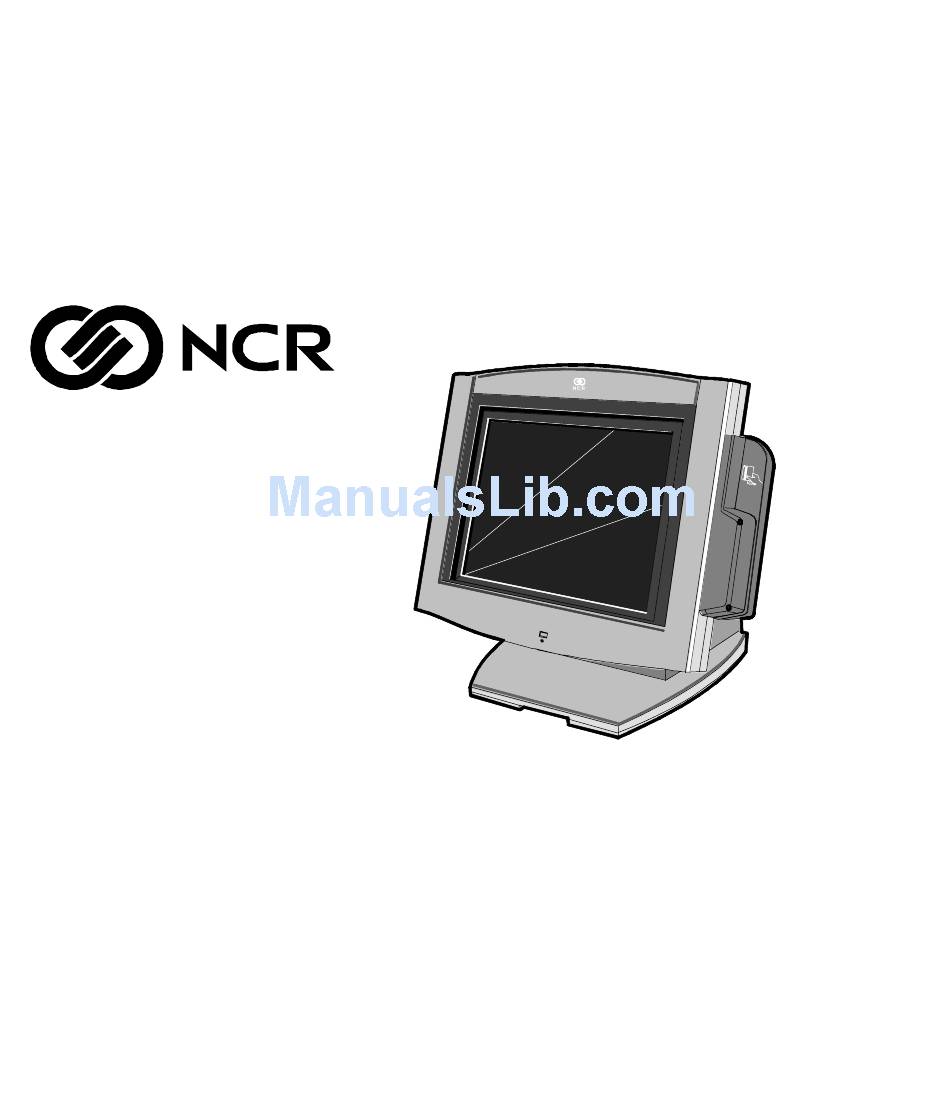

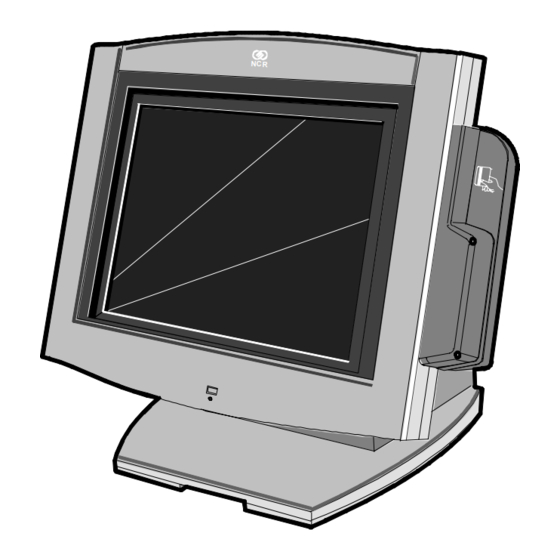

NCR 7454 Retail Terminal
Release 2.2
Hardware User's Guide
18004
B005-0000-1256
Issue H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7454 and is the answer not in the manual?

Questions and answers

Related Manuals for NCR 7454

Summary of Contents for NCR 7454

  • Page 1 NCR 7454 Retail Terminal Release 2.2 Hardware User’s Guide 18004 B005-0000-1256 Issue H...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 Doing so may result in peripheral or system damage. Warning: The NCR 7454 must be mounted securely to prevent a hazard. It must be installed in accordance with local building codes.
  • Page 4 Peripheral Usage This terminal should only be used with peripheral devices that are certified by the appropriate safety agency for the country of installation (UL, CSA, TUV, VDE) or those which are recommended by NCR Corporation. Environmental Consciousness NCR is demonstrating its concern for the environment by designing an...
  • Page 5 References NCR 7454 Retail Terminal Hardware Service Guide (B005-0000-1342) NCR 7454 Retail Terminal Site Preparation Guide (B005-0000-1257) NCR 7454 Retail Terminal Software User’s Guide (B005-0000-1259) NCR 7401/7454 Retail Terminal Parts Identification Manual (B005-0000-1072) NCR Retail Platform Software Terminal Utilities Guide (B005-0000-1503) NCR FitClient Software User’s Guide...

  • Page 7: Table Of Contents

    Hardware Monitor........... 1-13 PCI Expansion Header ........1-14 IDE Header ............1-14 Audio ..............1-14 Magnetic Stripe Reader ........1-14 Touch Screen Controller ........1-15 Processor Board Connectors ......1-15 Compact Flash..........1-16 NCR Retail Specific Hardware......1-16 Board BIOS ............1-18...
  • Page 8 Operator Display..........1-20 LCD Adapter Board......... 1-21 LCD Backlight Inverter Module ..... 1-21 Touch Screen ............ 1-22 NCR 7454 Integrated Customer Display .... 1 NCR 5973 International VFD Customer Display1-23 Table Top Mount..........1-23 16" High Post Mount........1-23 Features ............... 1-24 Magnetic Stripe Reader........
  • Page 9 Installing an Integrated Customer Display (5972-F039)............2-17 Installing a Cash Drawer ........2-22 Installing a Second Cash Drawer....2-23 Mounting the 7454............2-24 Wall Mounting a Tilt Mount ....... 2-25 Finalizing the Installation .......... 2-26 Completing the OS Installation (Win2000) ..2-26 Completing the OS Installation (WinXPe) ..
  • Page 10 viii Completing the OS Installation (Win98) ..2-27 Completing the OS Installation (Win95) ..2-28 Completing the OS Installation (DOS) ... 2-28 Setting Auto-Logon (WinNT Terminal)....2-29 Installing a Serial Mouse..........2-34 Guidelines for Calibrating the Touch Screen ... 2-35 Calibration Procedure..........
  • Page 11 NCR 7454-3xxx WinXPe Operating System Recovery Software (Version 02.02.00.01).... 4-12 NCR 7454-22xx Win2000 Operating System Recovery Software (Version 01.01.00.00 ....4-13 NCR 7454-32xx NT Operating System Recovery Software (Version 02.02.00.01....... 4-15 NCR 7454-22xx NT Operating System Recovery Software (Version 01.04.01.00....... 4-17 NCR 7454-32xx Win98 Operating System Recovery Software (Version 02.02.00.01).....
  • Page 12 Prerequisites ............5-1 Updating Procedures ..........5-2 BIOS Crisis Recovery ........... 5-4 Recovery Procedures ..........5-5 Cable/Connector Pin-Out Information ...... 5-8 Chapter 6: NCR 7454 4x20 Customer Display Introduction ..............6-1 Viewing Area............6-1 Diagnostics.............. 6-2 Character Set..............6-3 Page 1 – International ........6-3 Page 2 –...
  • Page 13 Brightness Adjustment ........6-15 Read Display ID Byte........6-15 Read Display ID String ........6-15 Display ESC Character ........6-16 Select Character Set n........6-16 Read Display Data String ........ 6-16 Appendix A: Cables Appendix B: Feature Kits 7454 Kits..............B-1 Kit Index................B-2...
  • Page 14 Revision Record Issue Date Remarks Sept 00 First issue (separated 7401 and 7454 sections out of B005-0000-1069) Oct 00 Added new motherboard with Intel Pentium III/ Celeron processors Feb 01 Updated to Release 2.0 Removed hardware service information from this...
  • Page 15 NCR is not responsible for any radio or television interference caused by unauthorized modification of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by NCR.

  • Page 16: Declaration Of Conformity

    Model Number 100-120 V/200-240 V, 2.0 A/1.0 A, 50-60 Hz Electrical Ratings (Input) NCR Corporation, 1700 South Patterson Boulevard, Dayton, OH 45479, USA, declares that the equipment specified above conforms to the referenced EU Directives and Harmonized Standards. EU Directive...

  • Page 17: Chapter 1: Product Overview

    7454 supports a complete set of peripherals. The major hardware features of the 7454 are a flat panel display with touch screen input and LAN connectivity, plus optional magnetic stripe reader, scanner, stereo audio, and wireless LAN.

  • Page 18: Serial Number/Model Number Label

    Core Module. To view the label, tilt the Core Module and remove the cable cover. Note: The serial number is repeated on the non-MSR side of the Core Module. Class/Model 7454-3504-M001 Serial Number 50-12345678 Date Manufactured Date: 11/15/01...

  • Page 19: Hardware Modules

    Chapter 1: Product Overview Hardware Modules Base Unit Processor Board ® ® Intel Pentium III or Celeron-class processor SVGA chipset MPEGII chipset 32 MB RAM on board (Celeron 600 MHz processor) 64 MB RAM on board (Celeron 700 MHz processor) 4 MB Video Memory 1 MB Flash BIOS (not CMOS) Four RS-232 ports (two optionally powered)

  • Page 20: Hardware Options

    Chapter 1: Product Overview POS Connector Board Cash drawer port (supports two drawers via a Y-cable) Internal parallel port (dedicated to the optional customer display) 12.1-Inch Operator Display - capacitive or resistive touch LCD, available in active matrix models 15-Inch Color TFT LCD Operator Display panel with capacitive touch screen 2.5"...
  • Page 21 Cash drawers 2113 Cash Drawer (modular) 2189 Cash Drawer (modular) 2260 Cash Drawer (modular) Dual cash drawer cable 7454 Printers: 7158 Thermal Receipt/Impact Printer 7167 Thermal Receipt/Impact Printer 7194 Thermal Receipt Printer 7196 Thermal Receipt Printer 7197 Thermal Receipt Printer...

  • Page 22: Terminal Components Not Supported

    Chapter 1: Product Overview USB RS-232 Port Server USB Serial Converter CD-ROM Drive Terminal Components not Supported It is important to note that the terminal does not support the following components. Not supported Alternative implementation CMOS for hard totals, logs, and Hard disk, compact flash, or server tallies storage...

  • Page 23: System Configuration Diagram

    Chapter 1: Product Overview System Configuration Diagram 2214 7196 7166 7892 7837 2010 Coin Dispenser 2336-K008 RS232 (4) PS/2 KBD 2 Optionally Powered 7197 7194 7158 7167 Processor Board Note: 7158, 7167, 7194, and 7197 are available in POS Connector Bd. both RS-232 and USB.

  • Page 24: Hardware Module Descriptions

    Expansion capabilities for optional features and future requirements (ISA/PCI bus and USB) The following sections identify processors, system bus speed, and on- board memory available on 7454 Release 2.x processor boards: Release 2.0/2.1 Intel 600 MHz PGA2 Celeron Processor and 440BX chipset...

  • Page 25: Video Subsystem

    Dual Displays The Summa POS Motherboard is dual display (LCD and CRT) capable. In a dual display environment the 7454 terminal supports 16-bit color when both displays are connected to the motherboard. Both displays must have the same maximum resolution capability. Refer to the following information for details about the implementation of a dual display configuration.

  • Page 26: Ethernet 10/100Base-T Lan Communications

    1-10 Chapter 1: Product Overview Lynx Family Control Panel Specification 1.2 on the NCR 74xx Base System and Client Third party Drivers CD-ROM (Product ID: D370-0111-0100) or in the video.exe self-extracting Video Drivers file on the Retail Solutions Specific Third Party Products Drivers and Patches web site at: http://www.ncr..com/support/support_drivers_patches.asp?Class=retail_TPP...

  • Page 27: Wireless Lan Communications

    Category 5 and the hubs must permit 100 or 10/100 Mbps operation. Although 10Base-T will operate on Category 3 twisted pair, or NCR “747” cable, an upgrade to Category 5 is required for 100Base-T. A customer desiring to use the terminal in an existing 10Base-T environment can do so and simply run at 10 MB.

  • Page 28: Universal Serial Bus

    1-12 Chapter 1: Product Overview Appropriate infrastructure (server support, Base Stations, Ceiling Antennas, etc) must be present in the installation site, and the maximum RF range of the wireless system must not be exceeded. Interoperability - While the 802.11 standard provides an interoperable protocol definition, there are vendor-specific extensions to the protocol that encourage users to stay with one supplier’s equipment.

  • Page 29: Serial Ports

    Chapter 1: Product Overview 1-13 Serial Ports The Summa POS Motherboard provides two RS-232 ports (9-pin D- shell connectors, Ports 1 and 2) directly on the Motherboard and supports two additional RS-232 ports. Ports 3 and 4 require an optional harness connection to the Motherboard.

  • Page 30: Pci Expansion Header

    1-14 Chapter 1: Product Overview PCI Expansion Header A single expansion header is provided to support optional features, such as the PCMCIA for Wireless LAN Board. This board supports two Type 2 or one Type 3 PCMCIA type cards. IDE Header A standard IDE header is provided to support the 2.5"...

  • Page 31: Touch Screen Controller

    Chapter 1: Product Overview 1-15 Touch Screen Controller ® The MicroTouch “Excalibur” chip is used to interface the touch panel. This controller supports MicroTouch capacitive panels. In order to save an RS-232 port, the touch data is delivered to the system through the mouse interface.

  • Page 32: Compact Flash

    When using the Windows XP embedded OS, an additional 128MB SDRAM SODIMM is required to support the necessary virtual memory requirements. NCR Retail Specific Hardware The Processor Board contains logic that provides support for the custom retail interface. The logic controls the following features:...
  • Page 33 Chapter 1: Product Overview 1-17 Cash Drawer I/O Port Bit Definition: Bit # Description Bit = 1 Bit = 0 7 Solenoid B Control Turns off solenoid Activates solenoid output output 6 Solenoid A Control Turns off solenoid Activates solenoid output output 5 Reserved...

  • Page 34: Board Bios

    1-18 Chapter 1: Product Overview The MSR interface supports a maximum of 3 tracks of magnetic stripe information for support of ISO or JIS format cards. Activate the MSR interface by enabling it in BIOS Setup under IO Configuration. The MSR interface controller is a memory-mapped device, which can reside at system memory addresses CA000, CC000, or D0000.

  • Page 35: Bios Upgrades

    Chapter 1: Product Overview 1-19 BIOS Upgrades Flash memory makes distributing BIOS upgrades easy. A new version of the BIOS can be installed from the hard disk, network or through a serial port. The disk-based Flash upgrade utility, PHLASH.EXE, ensures the upgrade BIOS extension matches the target system to prevent accidentally installing a BIOS for a different type of system.

  • Page 36: Operator Display

    The system must be configured with an APM driver in order for the system power saving features to take effect. Operator Display 18004 The 7454 is available with two LCD types 12.1-Inch TFT (active matrix) 800x600 with 64K colors 15-inch TFT (active matrix) 1024 x 768 with 262K+ colors...

  • Page 37: Lcd Adapter Board

    Chapter 1: Product Overview 1-21 Contrast control is set by software, using a digital potentiometer on the Processor Board. The terminal does not have a user-accessible contrast adjustment. Software can set a default value after reading the Panel ID. Display contrast changes with temperature. LCD Adapter Board The signals from the LCD header on the Processor Board are brought to the LCD on a harness.

  • Page 38: Touch Screen

    Processor Board. The touch glass has a glare-reducing texture that also helps hide fingerprints. NCR 7454 Integrated Customer Display The NCR 7454 Integrated Customer Display supports four lines of twenty 5x7 characters. It is available in a low profile or high-post model.

  • Page 39: Table Top Mount

    Chapter 1: Product Overview 1-23 NCR 5973 International VFD Customer Display The NCR 5973 VFD (Vacuum Fluorescent Display) is an optional display device for the 7454 Retail Terminal. The VFD is available in models that have a combination of: Dark gray cabinetry...

  • Page 40: Features

    1-24 Chapter 1: Product Overview Features Magnetic Stripe Reader A single 3-track analog Magnetic Stripe Reader (MSR) is available as a feature, supporting ISO and JIS format cards. When the MSR is not desired, a filler piece for the MSR section is included to make the unit appear uniform.

  • Page 41: Printer Options

    Chapter 1: Product Overview 1-25 Printer Options The sections that follow provide an illustration and brief description of the available printer options. 2214 Printer The 2214 Printer is a thermal fiscal printer that can issue tickets and produce a journal. Its power cord plugs into a 120 VAC power source and the included RS-232 cable connects the printer’s serial connector to the workstation.

  • Page 42: 7158 Printer

    1-26 Chapter 1: Product Overview 7158 Printer The 7158 Printer is extremely fast, quiet, and reliable point-of-sale device. It consists of two specialized printers in one compact package: a thermal printer on top that prints receipts, and an impact slip printer in front to print on forms and checks that you insert.

  • Page 43: 7167 Printer

    Chapter 1: Product Overview 1-27 7167 Printer The NCR 7167 Printer is a fast, quiet, relatively small and very reliable multi-function printer. It prints receipts, validates and prints checks, and prints on a variety of single or multiple part forms. There is no journal as it is kept electronically by the host terminal.

  • Page 44: 7196 Printer

    17302 7197 Printer The NCR 7197 Printer is a fast, quiet, relatively small and very reliable multi-function printer. It prints receipts and two-color printing. The printer features a dual interface, so it can connect to the host terminal either through a USB or RS-232 connector.

  • Page 45: Other Integrated Devices And Indicators

    Chapter 1: Product Overview 1-29 Other Integrated Devices and Indicators Hard Disk Drive A 2.5" IDE hard disk is available. The drive is the standard type that is used by notebook PCs. Reset Switch The Reset Switch is provided as a last resort to reboot the system if the software reset port mechanisms fail.

  • Page 46: Pos Connector Board

    1-30 Chapter 1: Product Overview POS Connector Board The POS Connector Board is a small daughter board that mounts directly on the Cash Drawer and Parallel Port header. Connectors on the edge of this board form a second connector row above the Processor Board connectors.

  • Page 47: Power/Status Led

    Chapter 1: Product Overview 1-31 Power/Status LED The LED power indicator indicates that power is present. The LED is green when the processor and BIOS are operating properly. The LED is mounted behind the front bezel on the same board as the motion sensor.

  • Page 48: Power Supply

    1-32 Chapter 1: Product Overview Power Supply The terminal uses an AC adapter for its power supply, concealed in the terminal mounting. The supply is inaccessible when the terminal is in the normal operation and mounting position to prevent tampering, and sealed to help protect against spills or other environmental hazards.

  • Page 49: Usb Rs-232 Port Server

    Chapter 1: Product Overview 1-33 USB RS-232 Port Server The USB RS-232 Port Server is an intelligent, stackable expansion module that connects to the terminal Universal Serial Bus (USB) port, providing high-speed RS-232 serial ports. 7454/7401 USB Port RS-232 Ports 16944...

  • Page 50: Additional Pentium Iii And Celeron Connectors

    A connector can be added on Pentium III and Celeron models to add two additional RS-232 ports. To add the ports, install the Dual RS-232 Port Kit (7454-F072) as described in the Feature Kits appendix. The following illustration shows the RS-232 Connector, which is part of the Dual RS-232 Port Kit, installed on the Connector Row Bracket.

  • Page 51: Chapter 2: Hardware Installation

    Hardware Installation Chapter 2: Introduction The terminal is fully assembled at the factory. This chapter explains the mounting options and how to connect optional hardware components to the terminal. Installation Summary The terminal should be removed from the shipping packaging and visual checks made to verify the correct hardware configuration.

  • Page 52: Installation Restrictions

    AC power. This can result in system or printer damage. Warning: The 7454 must be mounted securely to prevent a hazard. It must be installed in accordance with local building codes. The post or wall on which the unit is mounted should be able to withstand four...

  • Page 53: Connecting The Cables

    Chapter 2: Hardware Installation Connecting the Cables Tilt Mount cable connectors are located on the underside of the Core Module, under a cable cover. Accessing the Cable Connectors 1. Tilt the display to access the cable connectors. Cable Cover Thumb Screw 15968 2.

  • Page 54: Routing The Cables

    Chapter 2: Hardware Installation Routing the Cables The 7454 has three places to secure cables to the base of the unit by using a cable tie wrap. Remove the power supply cover or customer display from the base of the unit, two thumb screws on bottom rear, and use a tie wrap to secure the Ethernet cable to one of the provided molded cable tie holders on the base.

  • Page 55: Identifying The Cable Connectors

    IRDA (not used) Microphone COM 2 (optional) RS-232 USB 1 (COM 3 & 4) USB 2 Parallel 19107 Note: COM1 and COM3 are powered ports. Note: The COM3 & COM4 RS-232 ports require the Dual RS-232 Port Kit (7454-F072) feature...

  • Page 56: Installing Peripherals

    7196 Thermal Receipt 7197 Thermal Receipt Owner’s Manuals/Guides NCR 7158 Thermal Receipt/Impact Printer Owner’s Guide (B005-0000-1112) NCR 7166 Multifunction Printer Setup & User’s Guide (B005-0000-1002) NCR RealPOS 7167 Two-Station POS Printer Owner’s Manual (B005-0000-1406) NCR 7194 Thermal Receipt Printer Owner’s Guide (B005-0000-1097) NCR 7196 Thermal Receipt Printer Operator Manual (B005-0000-1171) NCR RealPOS 7197 Receipt Printer Owner’s Manual (B005-0000-1409)

  • Page 57: Rs-232 Installation

    Chapter 2: Hardware Installation RS-232 Installation 1. Connect the Printer Interface Cable to the RS-232 Connector on the back or on the bottom of the printer. Cash Drawer Connector Power Connector RS-232 Connector 16632a 2. Connect the other end of the printer cable to one of the RS-232 (non-powered) ports on the terminal.

  • Page 58: Usb Installation

    Chapter 2: Hardware Installation USB Installation 1. Connect the Printer Interface Cable to the USB Connector on the back or on the bottom of the printer. Cash Drawer Connector Power Connector USB Connector 16632b 2. Connect the other end of the printer cable to one of the USB connectors (USB 1 or USB 2) on the terminal.

  • Page 59: 2214 Printer

    Chapter 2: Hardware Installation 2214 Printer 1. Connect the Printer Interface Cable to the RS-232 Connector on the back of the printer. RS-232 Connector Printer Interface Cable 18543 2. Connect the other end of the Printer Interface Cable to an RS-232 port (non-powered) on the terminal.

  • Page 60: Installing A Remote Customer Display

    2-10 Chapter 2: Hardware Installation Installing a Remote Customer Display The terminal supports three high-post remote customer displays. The mounting configuration is the same and appearance is similar: 5974 Remote Customer Display (4x20 characters, VFD) 5972-1000 Remote Customer Display (2x20 characters, VFD) 5973 International VFD Customer Display 5974 Remote Customer Display 16670...
  • Page 61 Chapter 2: Hardware Installation 2-11 3. Secure the Mounting Plate with 4 screws provided. Mounting Plate 4 Holes 0.40 mm (0.16 in.) Diameter 76 mm (3 in.) 16671 4. Connect the Display Cable to the Customer Display port on the terminal.

  • Page 62: 5972-1100 Remote Customer Display

    2-12 Chapter 2: Hardware Installation 5972-1100 Remote Customer Display 16257 1. Place the Display Mount on the desired surface within 4 meters (13 feet) of the host terminal. 2. Determine if the cable should be routed down through the mounting surface or if it should be run on top of the surface. 3.
  • Page 63 5972 Display Cable Parallel I/F Adapter Cable 497-0405676 - 4 M 497-0411000 - 0.6 M 1416-C278-0040 1416-C472-0006 Customer 7454 Cust. Display Display Port Power Brick 16291a 5. Connect the Parallel I/F Adapter Cable to the Customer Display port on the terminal.

  • Page 64: 5973 International Vfd Customer Display

    2-14 Chapter 2: Hardware Installation 5973 International VFD Customer Display (4) Screws 14528 1. Place the Display Mount on the desired surface within 4 meters (13 feet) of the host terminal. 2. Determine if the cable should be routed down through the mounting surface or if it should be run on top of the surface.
  • Page 65 Chapter 2: Hardware Installation 2-15 3. Connect the 5973 Parallel Cable to the Customer Display port on the terminal. Customer Display 15969b...

  • Page 66: Installing A High-Post Integrated Customer Display

    2-16 Chapter 2: Hardware Installation Installing a High-Post Integrated Customer Display The 7454 Integrated Customer Display supports four lines of twenty 5x7 characters. This is the same display module that is used with the low-profile integrated display. 16713...

  • Page 67: Installing An Integrated Customer Display (5972-F039)

    (5972-F039) The standard Power Supply Cover on the 5953-F022 Remote Table Top Mount does not support attachment of an integrated NCR 7454 4 x 20 Customer Display. In order to mount an integrated display you need to install 5972-F039, which includes: 1.
  • Page 68 2-18 Chapter 2: Hardware Installation Installation Procedure 1. Route the cable (display connector end) up through the Power Supply Cover, Display Post, and Top Bracket. This is a tight fit and the connector has to be angled in order to make it though the openings.
  • Page 69 Chapter 2: Hardware Installation 2-19 4. Connect the cable to the a) Remove the Integrated Display Bracket (2 screws). b) Connect the cable to the 2 x 20 VFD Assembly. c) Replace the Integrated Display Bracket. 4 x 20 VFD Assembly Integrated Display Bracket Phillips PH Screw (4-24 x 0.625)
  • Page 70 2-20 Chapter 2: Hardware Installation 6. Install the Nylon Hole Plug in the Power Supply Cover, locking the post in place. The slot permits the display to be rotated to personal preference. Nylon Hole Plug 7454 Customer Display Connector 16948...
  • Page 71 Press in on both sides of the cover and lift it up in the back to remove it. 20049 Press in on Both Sides Screws (2) 8. Install the Customer Display and Cover assembly onto the 7454 (2 screws). 16713 9. Connect the Display Cable to the Customer Display connector on the terminal.

  • Page 72: Installing A Cash Drawer

    2-22 Chapter 2: Hardware Installation Installing a Cash Drawer 1. Place the cash drawer in the desired location, within cable length of the terminal. 16269 2. Connect the cash drawer cable to the terminal cash drawer connector. Cash Drawer 15969c Note: The Cash Drawer can optionally be connected to the printer.

  • Page 73: Installing A Second Cash Drawer

    Chapter 2: Hardware Installation 2-23 Installing a Second Cash Drawer The terminal supports a 2-drawer configuration with a Y-cable (1416-C372-0006). 1. Place the cash drawer in the desired location, within cable length of the terminal. 2. Connect the Y-cable to the terminal cash drawer connector. Dual Cash Drawer Y-Cable 1416-C372-0006 16270...

  • Page 74: Mounting The 7454

    2-24 Chapter 2: Hardware Installation Mounting the 7454 A Tilt Mount terminal can be installed on a flat horizontal surface or a flat vertical surface. Table-Top Mount Wall Mount 16429...

  • Page 75: Wall Mounting A Tilt Mount

    Chapter 2: Hardware Installation 2-25 Wall Mounting a Tilt Mount To install the Tilt Mount on a flat vertical surface, use the K533 Wall Mount Bracket Kit. 1. Secure the Wall Plate to the wall with lag screws (4) into the studs or with hardware of similar strength.

  • Page 76: Finalizing The Installation

    2-26 Chapter 2: Hardware Installation Finalizing the Installation After the hardware installation has been completed, the terminal can be powered up to finalize the installation. The operating system, along with platform modifications, is pre-installed. The following sections list the steps involved to complete the system installation for each of the Gold Disk operating systems.

  • Page 77: Completing The Os Installation (Winnt)

    Chapter 2: Hardware Installation 2-27 3. Start the Network Setup Wizard. 4. Select options to identify the network information for the terminal environment. 5. Enter the Computer Description. 6. Enter the Computer Name. 7. Enter the Workgroup Name. 8. When prompted, press Finish to reboot the terminal. 9.

  • Page 78: Completing The Os Installation (Win95)

    1. When the terminal boots it enters the Windows setup routine. Note: When installing Win98 on terminals with early Processor Boards (7454-22xx) there are few differences in the procedure as follows: a) The terminal starts the Add New Hardware Wizard.

  • Page 79: Setting Auto-Logon (Winnt Terminal)

    Chapter 2: Hardware Installation 2-29 Setting Auto-Logon (WinNT Terminal) Since the client does not have a keyboard it is desirous to have it logon automatically. 1. Create a default user account that you want to use to logon to the client(s).
  • Page 80 2-30 Chapter 2: Hardware Installation d) Add the new user to the group. You need to do Administrators this in order to be able to later turn off the auto-logon function. e) Select to close the Group Membership box. f) Select to create the account.
  • Page 81 Chapter 2: Hardware Installation 2-31 5. Create a new string value to permit auto logon for the default user. Select the menu, select and then select Edit String Value 6. Name the new entry AutoAdminLogon...
  • Page 82 2-32 Chapter 2: Hardware Installation 7. Edit the string value. With the new entry selected, select the Edit menu and then select . Enter the value 1 for auto-logon. A Modify value of 0 sets it to no auto-logon. 8. Select to set the value.
  • Page 83 Chapter 2: Hardware Installation 2-33 11. Create a new string value to contain the password for the default user. Select the menu, select and then select Edit String Value 12. Name the new entry DefaultPassword 13. Edit the string value. With DefaultPassword selected, select the Edit menu and then select .

  • Page 84: Installing A Serial Mouse

    2-34 Chapter 2: Hardware Installation Installing a Serial Mouse Follow these steps to install a Serial Mouse on the terminal. 1. Edit the boot.ini file, which is located in the root of the C drive. a. Open Windows NT Explorer b.

  • Page 85: Guidelines For Calibrating The Touch Screen

    Chapter 2: Hardware Installation 2-35 Guidelines for Calibrating the Touch Screen The following guidelines should be observed for calibrating the touch screen. Calibration should be done at time of installation Recalibrate the touch screen when the system is installed at its final location.
  • Page 86 2-36 Chapter 2: Hardware Installation 4. Verify that the calibration was set accurately before making a service call. Perform the calibration again if necessary. If cursor is not stable, or false touches are suspected, run the Noise Check Utility from the Touchware Control Panel (Windows) or from the Microcal (DOS) program.

  • Page 87: Summary

    The customer is responsible for restoring operating system software and/or customer-specific data onto replacement disks sent to repair a failed or damaged disk in the field. NCR provides recovery tools for the operating system and platform software.

  • Page 89: Chapter 3: Setup

    Note: An external alphanumeric keyboard is not required to run the BIOS CMOS Setup Utility, but a keyboard makes the setup easier. BIOS Versions The Setup Menus in this chapter reference NCR 7401/7454 BIOS Version 1.5.0.4 (Pentium) and NCR 7401/7452/7453/7454/7455 BIOS Version 2.1.2.x (Pentium III).

  • Page 90: Entering Setup Using A Keyboard

    Chapter 3: Setup c) Using the same method as above, touch the circle near the upper-right corner of the screen. You should receive a Successful Calibration message and then the PhoenixBIOS Setup Utility should come up. d) Select the setup parameters by touching the controls at the bottom of the screen.

  • Page 91: Restoring Factory Settings

    Chapter 3: Setup Restoring Factory Settings To automatically reset all values to their default settings for the current screen, press F9. The terminal will automatically load BIOS default CMOS values for boot up. To reset all BIOS settings to their default settings go to the Exit menu, press F9, select either Save Changes &...

  • Page 92: Bios Default Cmos Values (Pentium)

    Chapter 3: Setup BIOS Default CMOS Values (Pentium) The following are the BIOS default CMOS values for the terminal. Note: When installing a new BIOS from the CD, the Processor Board type is automatically detected and the correct BIOS is automatically installed.
  • Page 93 Chapter 3: Setup IDE Secondary Master Type None IDE Secondary Slave Type None Enabled Memory Cache Enabled Cache System BIOS area Disabled Cache Video BIOS area 640 K System Memory 31744 K Extended Memory Disabled Power Savings Standby Timeout Auto Suspend Timeout Disabled Fixed Disk Disabled...

  • Page 94: Advanced Values

    Chapter 3: Setup Disabled PCI Bus Monitoring Boot sequence ® 1. LANDesk Service Agent II 2. Hard Drive Continuous POST Disabled Advanced Values I/O Device Configuration Primary Local Bus IDE adapter Auto Serial port A Auto Serial port B Normal Mode Auto Parallel port...

  • Page 95: Pci Configuration

    Chapter 3: Setup Secured Setup Configurations PCI Configuration ISA Graphics Device Installed Available (all) PCI/PNP ISA UMB Region Exclusion...

  • Page 96: Interrupts (Pentium)

    Reserved, Keyboard buffer full Reserved, Cascade interrupt Serial Port 2 Serial Port 1 User available Reserved, Floppy Parallel Port 1 Real Time Clock NCR Motion, Thermal interrupt Windows Sound System/USB Touch Screen Reserved, Math coprocessor On-board IDE (available if IDE is disabled)

  • Page 97: Memory Map (Pentium)

    BIOS Reserved (currently available as UMB) D0000-DFFFF 64 K Available HI DOS memory CE000-CFFFF Flash Disk (optional) CC000-CDFFF NCR Trigantor MSR (optional) C0000-CBFFF 48 K Onboard video BIOS A0000-BFFFF 128 K Reserved for video memory 9FC00-9FFFF Extended BIOS Data (moveable by...

  • Page 98: Bios Default Cmos Values (Pentium Iii/Celeron)

    3-10 Chapter 3: Setup BIOS Default CMOS Values (Pentium III/Celeron) The following are the BIOS default CMOS values for the workstation. Note: When installing a new BIOS from the CD, the Processor Board type is automatically detected and the correct BIOS is automatically installed.

  • Page 99: Advanced Values

    Chapter 3: Setup 3-11 Multi-Sector Transfers Disabled LBA Mode Control Disabled 32 Bit I/O Disabled Transfer Mode Standard Ultra DMA Mode Disabled Secondary Master None Type Auto Multi-Sector Transfers Disabled LBA Mode Control Disabled 32 Bit I/O Disabled Transfer Mode Standard Ultra DMA Mode Disabled...
  • Page 100 3-12 Chapter 3: Setup Memory Cache Enabled Cache System BIOS Write Protect Cache Video BIOS Write Protect Cache Base 0-512 K Write Back Cache Base 512K-640 K Write Back Cache Extended Memory Write Back Cache A000-AFFF Disabled Cache B000-BFFF Disabled Cache C800-CBFF Disabled Cache CC00-CFFF...
  • Page 101 Chapter 3: Setup 3-13 Floppy Diskette Controller Enabled Serial Port C Enabled Mode Normal Base I/O Address Interrupt IRQ 5 Powered Auto Serial Port D Enabled Base I/O Address Interrupt IRQ 11 Mode RS-232 Disk-On-Chip Address CE00 - CFFF MSR Address CC00 - CDFF MSR Interrupt System Monitors...
  • Page 102 3-14 Chapter 3: Setup On-board Intel LAN Enabled Parallel CD-ROM Boot Disabled On-board Intel PXE Enabled Lucent WaveLAN ROM Disabled WaveLAN PXE ROM Disabled Selectable ROM 7 Disabled Selectable ROM 8 Disabled Selectable ROM 9 Disabled Selectable ROM 10 Disabled Selectable ROM 11 Disabled Selectable ROM 12...

  • Page 103: Security Values

    Chapter 3: Setup 3-15 CC00 – CFFF Available D000 – D3FF Available D400 – D7FF Available D800 – DBFF Available DC00 - DFFF Available PCI/PNP IRQ Resource Exclusion IRQ 3 Available IRQ 4 Available IRQ 5 Available IRQ 7 Available IRQ 9 Reserved IRQ 10...

  • Page 104: Power Values

    3-16 Chapter 3: Setup Clear User Password Is Press ENTER Set Supervisor Password Press ENTER Set User Password Supervisor Diskette Access Normal Fixed Disk Boot Sector Disabled Password on Boot Power Values Disabled Power Savings Standby Timeout Auto Suspend Timeout Disabled IDE Drive 0 Monitoring Disabled...

  • Page 105: Interrupts (Pentium Iii/Celeron)

    Serial Port 1 Serial Ports 3 and 4 Reserved, Floppy Parallel Port 1 Real Time Clock NCR Thermal interrupt/PII4 SMBus Audio Mouse (available if disabled) Reserved, Math coprocessor On-board IDE (available if IDE is disabled) On-board IDE (available for MSR if IDE is disabled)
  • Page 106 3-18 Chapter 3: Setup...

  • Page 107: Memory Map (Pentium Iii/Celeron)

    BIOS Reserved (currently available as UMB) D0000-DFFFF 64 K Available HI DOS memory CE000-CFFFF Flash Disk (optional) CC000-CDFFF NCR Trigantor MSR (optional) C0000-CAFFF 42 K Onboard video BIOS A0000-BFFFF 128 K Reserved for video memory 9FC00-9FFFF Extended BIOS Data (moveable by...

  • Page 109: Chapter 4: Operating System Recovery

    Refer to the NCR FitClient Software User's Guide for information about that procedure. Prerequisites The following are required on the 7454 in order to perform an OS recovery using a CD. Bootable CD-ROM drive External 2336-K007 (Parallel CD-ROM – Series 5 or Series 6) The terminal BIOS must be 1.02.00.00 or greater.

  • Page 110: Updating Procedures

    Parallel Connector Power Connector Parallel Connector 18250 Note: The parallel port on the 7454 is the Customer Display port. Therefore, if your terminal is configured with a Customer Display, you must temporarily disconnect it in order to use the CD-ROM drive.
  • Page 111 D370-0516-0100 D370-0565-0100 D370-0501-0100 D370-0500-0100 **Discontinued D370-0445-0100 35xx, 36xx, 37xx Note: * The 22xx models have been discontinued. Contact NCR Product Manager for LPIN availability. ** Contact Product Manager for Controlled Delivery support of Windows 95 LPIN for 32xx model. 5. Boot the terminal.
  • Page 112 Chapter 4: Operating System Recovery 14. Follow the DOS screen prompts. After each entry you are asked to confirm your input. You can use 1 or y for Yes, 2 or n for No. 15. Enter whether or not you want to perform Disk verification (Answering Yes takes twice as long, but is recommended.) If Yes is selected:...

  • Page 113: Completing The Os Installation (Win2000)

    Chapter 4: Operating System Recovery 18. Remove the CD during reboot for the OS to begin. When system is restored, reset the BIOS to normal defaults. Completing the OS Installation (Win2000) The system automatically reboots when the image recovery is complete and starts the software installation.

  • Page 114: Completing The Os Installation (Winnt)

    1. When the terminal boots it enters the Windows setup routine. Note: When installing Win98 on terminals with early Processor Boards (7454-22xx) there are few differences in the procedure as follows: a) The terminal starts the Add New Hardware Wizard.

  • Page 115: Completing The Os Installation (Win95)

    Chapter 4: Operating System Recovery b) For each device found, permit Windows to search for new drivers (take defaults). c) After each driver is installed you are asked to reboot. Answer 2. At the User Information screen, enter the User information. This can be done using a keyboard or you can use the touch screen keyboard.

  • Page 116: Gold Disk Contents

    The NCR OS Recovery image can only be used to recover or update systems with licenses procured from NCR.

  • Page 117: Operating System Restrictions

    7454 terminal. Standby and Hibernate Mode Restriction When using a 7454 terminal without a keyboard or mouse, the Windows 2000, Windows XP PRO, and Windows XP Embedded OS Standby Mode and Hibernate Mode should be avoided. These two modes place the hardware in a low power state which requires an interrupt to restart the processor.

  • Page 118: Ncr 7454-32Xx Win2000 Operating System Recovery Software (Version 02.02.00.02)

    NCR 7454-32xx Win2000 Operating System Recovery Software (Version 02.02.00.02) (LPIN: D370-0516-0100) Note: This product should only be used on 7454 terminals with a Microsoft Windows 2000 license 7454-32xx Windows 2000 Operating System Recovery Software provides the means of restoring the operating system to the hard disk of a 7454 POS terminal.
  • Page 119 ‘Enable PME’ (in Intel Proset utility) set to ‘Hardware Default’ Disabled game port Enabled DMA Set color to 16 bit Added SetResolution.exe to RunOnce registry. Added TerminalCheck.exe to Run registry. Added NCR-specific EULA. Added '/noguiboot' parameter to boot.ini to hide splash at startup.

  • Page 120: Ncr 7454-3Xxx Winxpe Operating System Recovery Software (Version 02.02.00.01)

    NCR 7454-3xxx WinXPe Operating System Recovery Software (Version 02.02.00.01) (LPIN: D370-0565-0100) Note: This product should only be used on 7454 terminals with a Microsoft Windows XPe license. 7454-3xxx Windows XPe Operating System Recovery Software provides the means of restoring the operating system to the hard disk of a 7454 POS terminal.

  • Page 121: Ncr 7454-22Xx Win2000 Operating System Recovery Software

    Set ‘Enable PME’ (in Intel Proset utility) to ‘Hardware Default’ Set color to 24 bit Added SetResolution.exe to RunOnce registry. Added NCR-specific EULA. NCR 7454-22xx Win2000 Operating System Recovery Software (Version 01.01.00.00 (LPIN: D370-0489-0100) Installs the following software: Microsoft Windows 2000 Professional with Service Pack 1 Microsoft Internet Explorer 5.0 (5.00.3103.1000)
  • Page 122 Configures the following settings/revisions: Sysprep.inf answer file and sysprep.bat batch file created to: Skip EULA Preinstall the Product ID Number (PID) Placed the Gold Drive Part Number, Date Created, LPIN, and Release in Registry under: HKey-Local_Machine\Software\NCR\Gold Drive Windows Installer (Version 1.1) installed...

  • Page 123: Ncr 7454-32Xx Nt Operating System Recovery Software

    Microsoft Windows NT license. 7454-32xx NT Operating System Recovery Software provides the means of restoring the operating system to the hard disk of a 7454 POS terminal. The bootstrap program (di_intel.bsd) and disk recovery boot image (di_intel.bid) are downloaded to the target terminal over the network and restore the hard disk to the preinstalled state as shipped from the factory.
  • Page 124 Installed Intel Proset utility 'Enable PME' (in Intel Proset utility) set to 'Hardware Default' Enabled DMA Muted Volume Line-In Added SetResolution.exe to RunOnce registry. Added TerminalCheck.exe to Run registry. Added NCR-specific EULA. Added '/noguiboot' parameter to boot.ini to hide splash at startup.

  • Page 125: Ncr 7454-22Xx Nt Operating System Recovery Software

    Chapter 4: Operating System Recovery 4-17 NCR 7454-22xx NT Operating System Recovery Software (Version 01.04.01.00 (LPIN: D370-0433-0100) Installs the following software: Microsoft Windows NT Workstation 4.0 with Service Pack 4a. Service Pack 6 included (but not installed) on the disk Microsoft Internet Explorer 5.0...
  • Page 126 Preinstall the Product ID Number (PID) Places the Gold Drive Part Number, Date Created, LPIN, and Version in Registry under: HKey-Local_Machine\Software\NCR\Gold Drive Windows Installer (Version 1.1) installed Removes the following key from the registry (as a current COM9 issue workaround):...

  • Page 127: Ncr 7454-32Xx Win98 Operating System Recovery Software (Version 02.02.00.01)

    Microsoft Windows 98 license. 7454-32xx Win98 Operating System Recovery Software provides the means of restoring the operating system to the hard disk of a 7454 POS terminal. The bootstrap program (di_intel.bsd) and disk recovery boot image (di_intel.bid) are downloaded to the target terminal over the network and restore the hard disk to the preinstalled state as shipped from the factory.
  • Page 128 Set to High Color ‘Enable PME’ (in Intel Proset utility) set to ‘Hardware Default’ Muted the Volume Line-In Added SetResolution.exe to RunOnce registry. Added TerminalCheck.exe to Run registry. Added NCR-specific EULA. Added '/noguiboot' parameter to boot.ini to hide splash at startup.

  • Page 129: Ncr 7454-22Xx Win98 Operating System Recovery Software (Version 01.01.00.00)

    Chapter 4: Operating System Recovery 4-21 NCR 7454-22xx Win98 Operating System Recovery Software (Version 01.01.00.00) (LPIN: D370-0444-0100) Installs the following software: Microsoft Windows 98 Second Edition Microsoft Internet Explorer 5.0 MicroTouch TouchWare Version 5.4 for Mouse Port software Chips & Technologies 69000 Video driver...

  • Page 130: Ncr 7454-32Xx Win95 Operating System Recovery Software (Version 02.01.00.01)

    Microsoft Windows 95 license. 7454-32xx Windows 95 Operating System Recovery Software provides the means of restoring the operating system to the hard disk of a 7454 POS terminal. The bootstrap program (di_intel.bsd) and disk recovery boot image (di_intel.bid) are downloaded to the target terminal over the network and restore the hard disk to the preinstalled state as shipped from the factory.
  • Page 131 Preinstalled Win95 to include the Product ID Number (PID) Placed the Gold Drive Part Number, Date Created, LPIN, and Release in Registry under: HKey-Local_Machine\Software\NCR\Gold Drive Added Userinfo.exe to Start Menu to capture User Name, User Organization, Computer Name, and Workgroup (once the user has...

  • Page 132: Ncr 7454-22Xx Win95 Operating System Recovery Software (Version 01.02.00.00)

    4-24 Chapter 4: Operating System Recovery NCR 7454-22xx Win95 Operating System Recovery Software (Version 01.02.00.00) (LPIN: D370-0442-0000) Installs the following software: Win95 w/PID Msdos.sys file edited to include the following parameter: Autoscan = 2 MicroTouch version 5.4 Volume Line-in set to 0...

  • Page 133: Os Recovery From A Larger Disk Image

    Chapter 4: Operating System Recovery 4-25 OS Recovery from a Larger Disk Image The following procedure should be used to restore an Operating System when the destination disk is smaller than the source image (i.e., OS Recovery was made on a 10 GB source disk, but is being recovered on a 4.3 GB drive).
  • Page 134 4-26 Chapter 4: Operating System Recovery 10. The directory that Ghost is now looking in should be Z: (if not, switch to Z). Select the file File name to load image from (nnnnnnn.gho) and press Enter 11. Select the and press Local destination drive Enter 12.

  • Page 135: Chapter 5: Bios Updating Procedures

    BIOS Crisis Recovery section to recover the BIOS. Prerequisites The following are required on the 7454 in order to perform a BIOS update using a CD. Bootable CD-ROM drive External 2336-K007 (Parallel CD-ROM – Series 5 or Series 6) The terminal BIOS must be 1.02.00.00 or greater.

  • Page 136: Updating Procedures

    Connector Parallel Connector 18250 Note: The parallel port on the 7454 is the Customer Display port. Therefore, if your terminal is configured with a Customer Display, you must temporarily disconnect it in order to use the CD-ROM drive. 3. Apply power to the terminal so the CD-ROM drive can be opened.
  • Page 137 Chapter 5: BIOS Updating Procedures 6. Press at the screen prompt to enter the Setup Utility. 7. In the menu, select Advanced I/O Device Configuration 8. Verify that the is set to LPT 1 Mode 9. Go back to the menu, select Advanced Multiple ROM Menu...

  • Page 138: Bios Crisis Recovery

    Parallel Dongle Forces BIOS recovery 497-0414184 POS Connector Board 7454 parallel port (not required if already present) Required Software Acquire the following software from NCR. NCR 74xx BIOS and BIOS Update Software LPIN: A370-0022-0100, Release 3.0 or later P/N: 497-0424310...

  • Page 139: Recovery Procedures

    Customer 16993 Display Note: The parallel connector on the 7454 terminal is used for the Customer Display. If the terminal is equipped with a Customer Display you must temporarily disconnect the display cable. If the terminal is not equipped with a Customer Display then it is likely that the terminal does not have a parallel connector and you will have to install the POS Connector Board.
  • Page 140 Chapter 5: BIOS Updating Procedures 2. Connect the two machines with the RS-232 cable. Use COM Port 1 on both machines (COM1 is next to the USB ports on the 7454). NCR 7454 RS-232 Cable Parallel I/F Cable Parallel Dongle 16991 3.
  • Page 141 Chapter 5: BIOS Updating Procedures 8. Enter the update command: EMBflash [Enter] 9. Select the number for the 7454 terminal from the menu list: 1) 7454 2) 7401 3) 7452 4) 7453 5) 7455 6) 7460 7) 7451 8) 7456...

  • Page 142: Cable/Connector Pin-Out Information

    Chapter 5: BIOS Updating Procedures Cable/Connector Pin-Out Information Parallel Dongle 25-Pin D-shell Receptacle (Viewed from wiring side) 19513 RS-232 Cable 9-Pin 9-Pin D-shell D-shell Receptacle Receptacle 19512...
  • Page 143 Chapter 5: BIOS Updating Procedures...

  • Page 145: Chapter 6: Ncr 7454 4X20 Customer Display

    Chapter 6: Introduction This chapter defines the character sets and supported commands. The NCR 7454 4x20 Customer Display is IEEE 1284 Compatible and supports Extended Capability Parallel (ECP). Viewing Area The characters are arranged in 4 rows of 20 characters. Each character is a 5x7 dot matrix.

  • Page 146: Diagnostics

    Chapter 6: NCR 7454 4x20 Customer Display Diagnostics Power-Up Diagnostics occur soon after the hardware reset circuitry is released, or when a Reset Display command is received from the host software. When the hardware is powered down, all registers and memory are lost.

  • Page 147: Character Set

    Chapter 6: NCR 7454 4x20 Customer Display Character Set Page 1 – International...

  • Page 148: Page 2 - Japanese

    Chapter 6: NCR 7454 4x20 Customer Display Page 2 – Japanese...

  • Page 149: Code

    Chapter 6: NCR 7454 4x20 Customer Display Page 3 – Code Page 850...

  • Page 150: Command Descriptions

    Chapter 6: NCR 7454 4x20 Customer Display Command Descriptions Structure/Logic Description The Retail VFD firmware is comprised of operating system type services such as common subroutines, interrupt service routines, and data processing routines. Normally, the firmware is always active refreshing the Retail VFD to keep display data visible. The firmware will also act on interrupts due to host parallel communication.
  • Page 151 Chapter 6: NCR 7454 4x20 Customer Display Command Function Return Status/String 1B 01 Reset Display 1B 02 Erase Display 1B 03 Invalid Command 1B 04 Set Diagnostic State 1B 05 Set Display State On 1B 06 Set Low Power State On (Default)

  • Page 152: Reset Display

    Chapter 6: NCR 7454 4x20 Customer Display Reset Display Format: 1B 01 Description: This command executes the power-down power-up diagnostic sequence. The BUSY line is set to active condition. The micro-controller test consists of a sum-check test on the ROM and a write/read test on the RAM.

  • Page 153: Set Diagnostic State

    Description: This state is exclusive from the On and Low Power states. This command causes the firmware to display the current NCR part number and firmware version of the device. For example, the current part number and firmware version of the device are 008-0221537 and V1.00.01) for two seconds and then step through each installed 256-...

  • Page 154: Set Low Power State On

    6-10 Chapter 6: NCR 7454 4x20 Customer Display Set Low Power State On Format: 1B 06 Description: This state is used to reduce Retail VFD power consumption and extend the life of the Retail VFD. Power is only removed from the VFD and the display will not be refreshed.

  • Page 155: Set Screen Save Blank

    Chapter 6: NCR 7454 4x20 Customer Display 6-11 Set Screen Save Blank Format: 1B 09 Description: This command is intended to preserve the life of the display hardware unit. The firmware maintains a five-minute timer that triggers this feature. The Screen Save feature can be disabled through a command from the host software.

  • Page 156: Disable Screen Save Option

    6-12 Chapter 6: NCR 7454 4x20 Customer Display Disable Screen Save Option Format: 1B 0C Description: The firmware will cease to keep time for the screen save activity from the host software and the display will neither go blank nor begin to walk due to inactivity from the host.

  • Page 157: Move Cursor Left

    Chapter 6: NCR 7454 4x20 Customer Display 6-13 Move Cursor Left Format: 1B 0F Description: Moves the cursor one position to the left. When the cursor is at the left end of the rows 2-4, it moves to the right end of the row above it. When the cursor is at the left end of the row 1, it moves to the right end of the row 4.

  • Page 158: Move Cursor Down

    6-14 Chapter 6: NCR 7454 4x20 Customer Display Move Cursor Down Format: 1B 12 Description: Moves the cursor down one line. When the cursor is on the 1-3, the cursor is moved to the same column on the next row. When the cursor is on the row 4, the cursor is moved to the same column on the row 1.

  • Page 159: Brightness Adjustment

    Chapter 6: NCR 7454 4x20 Customer Display 6-15 Brightness Adjustment Format: 1B 17 nn Range: nn 05 Description: Adjusts the brightness of the entire display. Individual characters or display positions will not be adjusted. On power up, the default brightness setting is 5 (100%).

  • Page 160: Display Esc Character

    6-16 Chapter 6: NCR 7454 4x20 Customer Display Display ESC Character (Not a supported command) Format: 1B 1B Description: This command is a request for the ESC character to be displayed to the current cursor position. Select Character Set n...

  • Page 161: Appendix A: Cables

    Cables Appendix A: Cable Index Corporate ID Part Number Description 1416-C041-0030 497-0008623 Ethernet 10/100BaseT 1416-C262-0040 497-0404832 2010 coin dispenser 1416-C266-0040 497-0407943 9-pin female to 9-pin female RS-232 1416-C266-0152 497-0409379 7193 RS-232 50' 9-pin female to 9- pin female 1416-C320-0030 006-8601011 Cord set –...
  • Page 162 Appendix A: Cables Corporate ID Part Number Description 1416-C374-0040 497-0409433 14' cable 1416-C408-0030 230-0113955 Power, SEV 1416-C409-0030 230-0113956 Power, UK rectangular 1416-C411-0030 006-1012224 Power, international 1416-C417-0040 497-0411815 Printer extender, 9-pin female to 25-pin female 1416-C418-0040 497-0411816 Printer extender, 25-pin male to 25-pin female 1416-C419-0030 250-0023191...

  • Page 163: Appendix B: Feature Kits

    Feature Kits Appendix B: 7454 Kits Below is a comprehensive list of the optional hardware Feature Kits that can be installed in the customer environment. Kit installation instructions (for those requiring instruction) are available on the Information Products web sites.

  • Page 164: Kit Index

    Appendix B: Feature Kits Kit Index Kit Number Part Number Description 2010-K020-V001 497-0414206 Coin tray 2126-K161-V001 603-6211364 C-3 till 2126-K302-V001 603-6211312 C-3 till, lid with lock (2188-K202-V001) 2189-K052-V002 497-0009697 Slip tray (7450 G13) 2189-K053-V002 497-0009695 Coin tray (7450 G13) 2189-K060-V001 497-0009209 Till 2 ½...
  • Page 165 Appendix B: Feature Kits Kit Number Part Number Description 2336-K031-V001 497-0417051 Coin cartridge – 1 dollar coin, US standard 340406 2336-K032-V001 497-0417053 Coin cartridge – Canadian 340405 2336-K033-V001 497-0417357 56 K modem, PCMCIA 2336-K455-V001 008-0221553 Remote 256x64 graphic VFD 2336-K600-V001 497-0414963 30 lb POS scale, USA 2336-K610-V001 497-0414964 15 kg POS scale, Canada...
  • Page 166 Appendix B: Feature Kits Kit Number Part Number Description 2757-K150-V001 497-0423521 OAsys KDS base kit with AV1000 card 2757-K200-V001 497-0414900 OAsys video add-on kit 2757-K250-V001 497-0423522 OAsys KDS add-on kit with AV1000 card 2757-K300-V001 497-0414901 10 MB Ethernet card with software license 5945-K010-V002 497-0414162 Cable –...
  • Page 167 Modular cash drawer – 2260 7453-K007-V001 497-0414767 Till with lid and lock 7453-K641-V003 497-0413391 Serial modems for 7161 and 7193 printers 7454-K005-V001 497-0424210 Modular cash drawer – midrange, gray 105, with anti-temper drawer flange 7454-K040-V001 497-0411474 8 MB flash disk...
  • Page 168 Appendix B: Feature Kits Kit Number Part Number Description 7454-K456-V001 497-0414192 4x20 low post remote customer display in gray (G105) 7454-K457-V001 497-0427615 4x20 high post external customer display in charcoal gray (CGT01)
  • Page 169 Index Pentium III processor, 3-10 Compact Flash, 1-16 —7— Completing the OS Installation (DOS), 2-28, 4-7 7454 Kits, B-1 Completing the OS Installation (Win2000), 2-26, 4-5 —A— Completing the OS Installation (Win95), 2-28, 4-7 Advanced power management, 1-19 Completing the OS Installation (Win98),...
  • Page 170 Index-2 Move Cursor Left, 6-13 Hardware monitor, 1-13 Move Cursor Right, 6-13 Hardware options, 1-4 Move Cursor to Specified Position, 6-14 Features not supported, 1-6 Move Cursor Up, 6-13 Read Display Data String, 6-16 —I— Read Display ID Byte, 6-15 Read Display ID String, 6-16 Installing the Integrated Customer Reset Display, 6-8...
