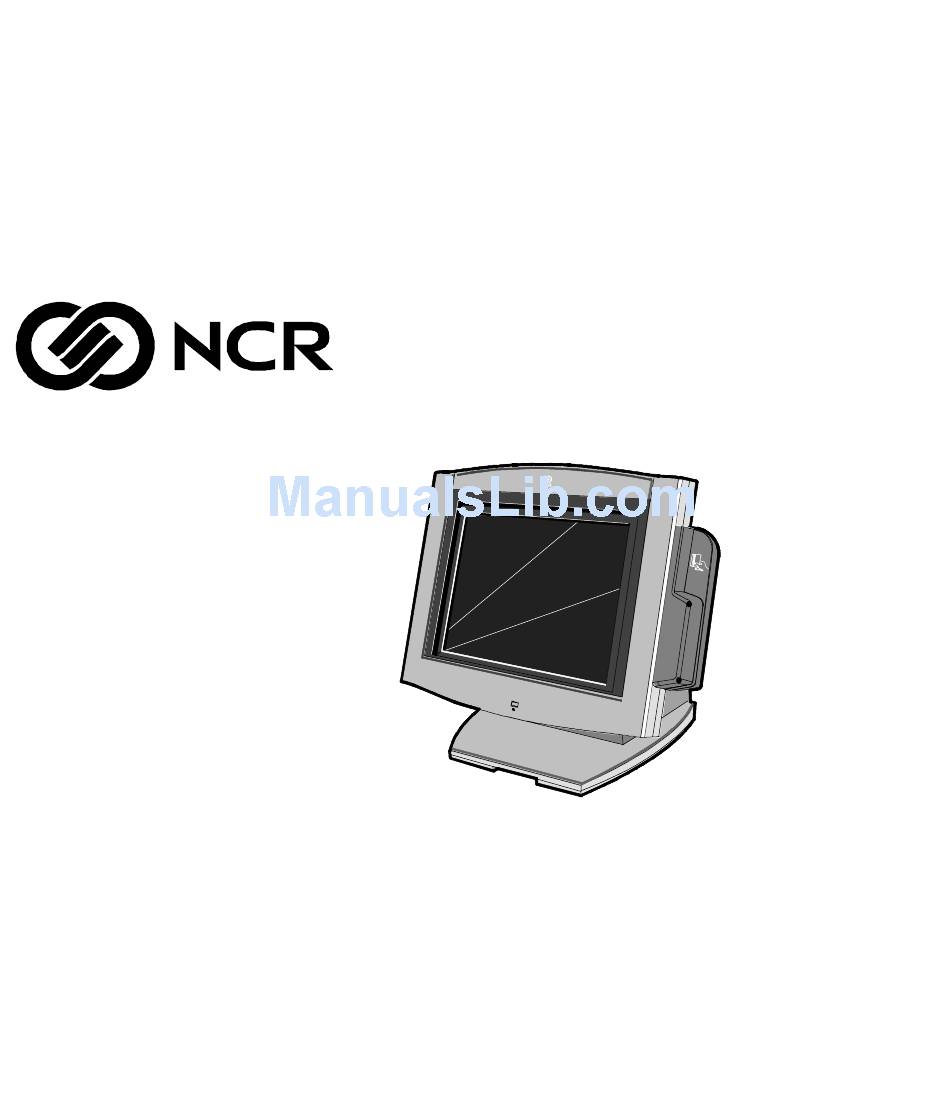

NCR 7454 Retail Terminal
Release 2.2
Site Preparation Guide
B005-0000-1257
Issue C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7454 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR 7454

Summary of Contents for NCR 7454

  • Page 1 NCR 7454 Retail Terminal Release 2.2 Site Preparation Guide B005-0000-1257 Issue C...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
  • Page 3 You are advised to read it carefully. It is the responsibility of the customer to assure that all installation preparations are complete and in compliance with NCR specifications and requirements and all applicable national, state, or local codes, regulations, and laws.
  • Page 4 This terminal should only be used with peripheral devices that are certified by the appropriate safety agency for the country of installation (UL, CSA, TUV, VDE) or those which are recommended by NCR Corporation. Caution: DO NOT connect or disconnect a printer, keyboard, or any other terminal-powered peripheral while the terminal is powered on.
  • Page 5 7454 Retail Terminal Site Preparation Environmental Consciousness NCR is demonstrating its concern for the environment by designing an intelligent power management system into this terminal that operates efficiently whether the system is in a stand-alone or network environment. Grounding Instructions...
  • Page 6 "Related Site Preparation Data" section. This book contains the information necessary for the preparation of a site that conforms to NCR specifications. It is very important that the site complies with the requirements specified in the document because,...
  • Page 7 NCR will not be liable in respect to any comment, suggestion, or advice given by its staff or in respect to any failure to give advice.
  • Page 8 7454 Retail Terminal Site Preparation...

  • Page 9: Table Of Contents

    Component Dimensions ..........9 NCR 7454 (12.1 Inch)..........9 NCR 7454 (15 Inch)..........10 NCR 7454 (12.1 Inch) with PCMCIA ..... 11 NCR 7454 (15 inch) with PCMCIA ......11 NCR 7454 (12.1 Inch) w/K450 Integrated Customer Display ........... 12 NCR 7454 (15 inch) w/K450 Integrated Customer Display ...........
  • Page 10 NCR 7196 Printer............. 17 NCR 7197 Thermal Receipt Printer......18 NCR 2214 Thermal Fiscal Printer......18 NCR 5974 4x20 Remote Customer Display ... 19 NCR 5972-1000 2x20 Remote Customer Display .. 20 Integrated 5973 International VFD Customer Display ..............21 5973 International VFD Customer Display ...
  • Page 11 7454 Retail Terminal Site Preparation Printer Interface Cables (RS-232) ......37 Printer Power Cables ..........38 NCR 5972-1000 Remote Customer Display and Adapter Cables............39 External CD-ROM Cable ........40 Power, AC..............41 Environmental Requirements Barometric Pressure ............42 Temperature ..............42 Humidity................
  • Page 12 7454 Retail Terminal Site Preparation Revision Record Issue Date Remarks Sep 00 First issue (Release 1.5) Feb 01 Updated to Release 2.0 Added 2214 printer Dec 02 Updated to Release 2.2...
  • Page 13 NCR is not responsible for any radio or television interference caused by unauthorized modification of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by NCR.
  • Page 14 7454 Retail Terminal Site Preparation Voluntary Control Council for Interference (VCCI) International Radio Frequency Interference Statement This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 15: Declaration Of Conformity

    Model Number 100-120 V/200-240 V, 2.0 A/1.0 A, 50-60 Hz Electrical Ratings (Input) NCR Corporation, 1700 South Patterson Boulevard, Dayton, OH 45459, USA, declares that the equipment specified above conforms to the referenced EU Directives and Harmonized Standards. EU Directive...
  • Page 16 7454 Retail Terminal Site Preparation...

  • Page 17: Introduction

    18051 This document provides the information necessary to prepare a site to NCR specifications prior to installing a terminal. The site must be properly prepared before the terminal is installed because site preparation deficiencies may be difficult to detect and correct after installation.

  • Page 18: Interpreting The Model Number

    7454 Retail Terminal Site Preparation Interpreting the Model Number NCR Model 7454 22 XX 80 Language 01 = International English Power Required 80 = 110 -240 VAC 50/60 Hz Operating System 00 = No OS 01 = Windows 03 = MS/DOS...

  • Page 19: Related Site Preparation Data

    BST0-2115-53 Peripherals Title Order Number NCR 7158 Thermal Receipt/Impact Printer B005-0000-1112 NCR 7161 Thermal Receipt Printer Owner's Guide B005-0000-1067 NCR 7166 Thermal Receipt/Impact Printer B005-0000-1002 NCR 7193 Thermal Receipt Printer Owner's Guide BD20-1439-A NCR 7194 Thermal Receipt Printer Owner's Guide...

  • Page 20: Customer Responsibilities

    Provide and install floor coverings and environmental systems that limit or control static electricity build-up and discharge In general, keep the NCR equipment area free from dust, smoke, lint, and other particles. Restrict smoking, eating, and drinking around the equipment. Avoid locating the equipment near other machines that generate ink, carbon, and paper dust particles.

  • Page 21: Ac Store Wiring Requirements

    The customer must provide suitable AC power for the retail terminals, associated equipment, and devices. A dedicated unswitched power line dedicated to the NCR equipment installation is recommended. Refer to the Workstation and Peripherals AC Wiring Guide (BSTO- 2115-53) for store AC wiring requirements. The AC outlet must be installed near the retail terminal and easily accessible to the operator.

  • Page 22: System Configuration Diagram

    7454 Retail Terminal Site Preparation System Configuration Diagram 2214 7196 7166 7892 7837 2010 Coin Dispenser 2336-K008 RS232 (4) PS/2 KBD 2 Optionally 7197 Powered 7194 7158 7167 Processor Board Note: 7158, 7167, 7194, and 7197 are available in POS Connector Bd.

  • Page 23: Physical Considerations

    7454 Retail Terminal Site Preparation Physical Considerations This section presents the following retail terminal information: • Operating and service clearance requirements • Display mounting considerations • Retail terminal and component dimensions • Component weights • Airflow requirements • Power requirements...

  • Page 24: Operating And Service Clearance Requirements

    7454 Retail Terminal Site Preparation Operating and Service Clearance Requirements Location Component Distance Reason 2214 Printer 371 mm (14.6 in.) Clearance to raise printer cover Above 7158 Printer 305 mm (12 in.) Clearance to raise printer cover 7166 Printer 280 mm (11 in.)

  • Page 25: Component Dimensions

    7454 Retail Terminal Site Preparation Component Dimensions NCR 7454 (12.1 Inch) 400 mm (16 in.) 370 mm (14.5 in.) 380 mm (15.0 in.) 360 mm (14.0 in.) 15970...

  • Page 26: Ncr 7454 (15 Inch)

    7454 Retail Terminal Site Preparation NCR 7454 (15 Inch) 425 mm (16.75 in.) 394 mm (15.5 in.) 412 mm (16.25 in.) 35 mm (14.0 in.) 18134...

  • Page 27: Ncr 7454 (12.1 Inch) With Pcmcia

    7454 Retail Terminal Site Preparation NCR 7454 (12.1 Inch) with PCMCIA 401mm (15.8 in.) 370 mm (14.5 in.) 40.7 mm (1.6 in.) 381 mm 312 mm (15.0 in.) (12.3 in.) 53.4 mm (2.1 in.) 73.7 mm (2.9 in.) 18200 NCR 7454 (15 inch) with PCMCIA 426 mm (16.8 in.)

  • Page 28: Ncr 7454 (12.1 Inch) W/K450 Integrated Customer Display

    7454 Retail Terminal Site Preparation NCR 7454 (12.1 Inch) w/K450 Integrated Customer Display 400 mm (16 in.) 480 mm (19.0 in.) 366 mm 16716 (14.3 in.)

  • Page 29: Ncr 7454 (15 Inch) W/K450 Integrated Customer Display

    7454 Retail Terminal Site Preparation NCR 7454 (15 inch) w/K450 Integrated Customer Display 425 mm (18.75 in.) 394 mm (15.5 in.) 480 mm (19.0 in.) 366 mm (14.3 in.) 16716a...

  • Page 30: Ncr 2183 Cash Drawer

    7454 Retail Terminal Site Preparation NCR 2183 Cash Drawer 455 mm (17.9 in.) 114 mm (4.50 in.) 450 mm (17.7 in.) Operating and Service Clearance for Drawer 263 mm 18038a (10.4 in.) NCR 2189 Cash Drawer 464 mm (18.25 in.) 133 mm (5.25 in.)

  • Page 31: Ncr 2113 Cash Drawer

    7454 Retail Terminal Site Preparation NCR 2113 Cash Drawer 400 mm (15.75 in.) 96 mm (3.75 in.) 450 mm (17.75 in.) 254 mm (10 in.) Operating and Service Clearance for Drawer 17310 NCR 7158 Printer 165 mm (6.50 in.) 305 mm (12.00 in.)

  • Page 32: Ncr 7166 Printer

    (6.75 in.) 280 mm (11.00 in.) 330 mm 248 mm (13.00 in.) (9.75 in.) 17308 NCR 7167 Thermal Receipt and Impact Slip Printer Top Cover Open 296 mm (11.7 in.) 174 mm (7.0 in.) 262 mm 190 mm (10.3 in.) (7.5 in.)

  • Page 33: Ncr 7194 Printer

    7454 Retail Terminal Site Preparation NCR 7194 Printer 212 mm 130 mm (8.3 in.) (5.10 in.) 85 mm (3.30 in.) 157 mm (6.20 in.) 187 mm (7.4 in.) 16492 NCR 7196 Printer 146 mm 254 mm 108 mm (5.75 in.) (10.00 in.)

  • Page 34: Ncr 7197 Thermal Receipt Printer

    7454 Retail Terminal Site Preparation NCR 7197 Thermal Receipt Printer Top Cover Open 256 mm (10.1 in.) 156 mm (6.25 in.) 184 mm 146 mm (7.25 in.) (7.75 in.) 19712c NCR 2214 Thermal Fiscal Printer 371 mm (14.6 in.) 175 mm (6.9 in.)

  • Page 35: Ncr 5974 4X20 Remote Customer Display

    7454 Retail Terminal Site Preparation NCR 5974 4x20 Remote Customer Display 180 mm 50 mm (7 in.) (3.5 in.) 110 mm (4.25 in.) 506 mm (22.1 in.) 95 mm 95 mm 16673 (3.75 in.) (3.75 in.)

  • Page 36: Ncr 5972-1000 2X20 Remote Customer Display

    7454 Retail Terminal Site Preparation NCR 5972-1000 2x20 Remote Customer Display 262 mm 30 mm (1.2 in.) (10.3 in.) 119 mm (4.7 in.) 506 mm (22.1 in.) 95 mm 95 mm 15708 (3.75 in.) (3.75 in.)

  • Page 37: Integrated 5973 International Vfd Customer Display

    7454 Retail Terminal Site Preparation Integrated 5973 International VFD Customer Display 262 mm 45 mm (10.3 in.) (1.8 in.) 110 mm (4.3 in.) 350 mm (13.8 in.) 95 mm 95 mm (3.75 in.) 17236a (3.75 in.)

  • Page 38: 5973 International Vfd Customer Display

    7454 Retail Terminal Site Preparation 5973 International VFD Customer Display 262 mm 45 mm (10.3 in.) (1.8 in.) 110 mm (4.3 in.) 556 mm (21.9 in.) 95 mm 95 mm (3.75 in.) (3.75 in.) 17236...

  • Page 39: Remote 5973 International Vfd Customer Display

    7454 Retail Terminal Site Preparation Remote 5973 International VFD Customer Display 262 mm 45 mm (10.3 in.) (1.8 in.) 110 mm 158 mm (4.3 in.) (6.2 in.) 173 mm 178 mm (6.8 in.) (7.0 in.) 17237...

  • Page 40: Ncr 2336-K007 External Cd-Rom Drive

    218 mm (8.6 in.) 23 mm (0.9 in.) 16951 Note: Allow 75 mm (3 in.) clearance in the back of the NCR 2336-K007 External CD-ROM Drive for connector and cable clearance. NCR 2336-K008 USB RS-232 Port Server 183 mm (7.2 in.)

  • Page 41: Component Weights

    7454 Retail Terminal Site Preparation Component Weights The following table shows the weight of the 7454 retail terminal components. Retail Terminal Component lbs. 2189 Cash Drawer 20.9 7454-K005 Cash Drawer 11.4 25.15 7454-K453 Remote Customer Display 5972-1000 Remote Customer Display...

  • Page 42: Ventilation Clearance

    7454 Retail Terminal Site Preparation Ventilation Clearance The following illustration shows the minimum clearances for proper cooling. 25 mm (1 in.) 76 mm (3 in.) Minimum Horizontal Minimum Vertical Clearance Clearance 16418...

  • Page 43: Power Requirements

    7454 Retail Terminal Site Preparation Power Requirements Core module contain a three-wire, single-phase, selectable 120/240 volt AC, 85 Watt power supply. The supply powers the retail terminal, scanner, VFD display, keyboard, USB interface, cash drawer, integrated speakers, and PCMCIA cards.

  • Page 44: 7454 Power Consumption Matrix

    7454 Retail Terminal Site Preparation 7454 Power Consumption Matrix The following table is provided as a reference of the power consumption of the peripherals available on the 7454 Note: All power data listed in table below is rated in amperage. Item Description 3.3VDC 5.0VDC...

  • Page 45: Cable Routing Considerations

    7454 Retail Terminal Site Preparation Item Description 3.3VDC 5.0VDC 12VDC Requires external power source (2336-K008, 497-0413014) USB to 2 port RS-232 0.50 (2336-K012, 497-0413710) 0.40 PCMCIA Controller 0.50 IRDA 0.80 5992 Signature capture device (497-0417590) 0.50 5945 Electronic Payment Device (497-0411818) 7837 Hand held Scanner 0.30...

  • Page 46: Considerations For Enclosed Installations

    Thermal Test Points (Case over Hard Drive and Processor) 18055a Note: For terminal servicing information refer to NCR 7454 Retail Terminal Hardware Service Guide (B005-0000-1342). Service Access The enclosure must provide access to certain locations for service...

  • Page 47: Flush Wall Mount

    7454 Retail Terminal Site Preparation Flush Wall Mount The 7454 can be mounted flush against a wall. The following shows mounting configuration and brackets: Flush Mount w/Power Supply Flush Mount w/Power Supply Mounted on the Outside Wall Mounted on the Inside Wall...

  • Page 48: Power Supply

    7454 Retail Terminal Site Preparation Power Supply 152 mm 102 mm (6 in.) (4 in.) 57 mm (2.25 in.) 17406 Wall mount the Terminal Bracket Drill a hole in the wall for the cables if you are mounting the power supply on the opposite side of the wall.

  • Page 49: System Cables

    7454 Retail Terminal Site Preparation System Cables Cable Type Cable Name NCR Part No. Corp. ID No. Approximate Cable Length Cash Drawer Dual Drawer, Y cable 497-0409394 1416-C372-0006 0.6 m/2 ft. 497-0008623 Communications Ethernet, 10/100Base-T (Unshielded) 497-0415949 1416-C528-0010 1 m/3.3 ft.
  • Page 50 7454 Retail Terminal Site Preparation Cable Type Cable Name NCR Part No. Corp. ID No. Approximate Cable Length Printer Extender 7161/7166/7196 497-0411815 1416-C417-0040 4 m/13 ft. Drop Cables Printer/Workstation (7453-K641) 7193/7194 Printer 497-0411816 1416-C418-0040 4 m/13 ft. Printer Power 7193 Printers...

  • Page 51: Cable Illustrations

    7454 Retail Terminal Site Preparation Cable Illustrations Dual Cash Drawer, Y-cable Cash DWR. #1 497-0409394 Cash DWR. #2 16 mm 51 mm Access Hole Diameters (0.625 in.) (2.0 in.) 15808 Ethernet, 10/100 Base-T Modular Modular 8-Pin 8-Pin Plug 497-0008623 Plug...

  • Page 52: Usb, 1- Or 4-Meter

    7454 Retail Terminal Site Preparation USB, 1- or 4-Meter 497-0415949 (1 meter) 1416-C528-0010 498-0415950 (4 meter) 1416-C528-0040 Type B Type A Access Hole Diameters 6.4 mm 15 mm (0.25 in.) (0.63 in.) 18433...

  • Page 53: 7454 Retail Terminal Site Preparation

    7454 Retail Terminal Site Preparation Printer Interface Cables (RS-232) 7161/7166/7196 25-pin 497-0407427 - 1 m 9-pin D-shell 497-0407429 - 4 m D-shell Plug 497-0407430 - 15 m Receptacle Workstation Printer RS-232 Port 38 mm 63.5 mm Access Hole Diameters (1.5 in.) (2.5 in.)

  • Page 54: Printer Power Cables

    7454 Retail Terminal Site Preparation NCR 7161 Printer with 7454-K641 Cable Extender 9-pin 25-pin 25-pin 9-pin D-shell D-shell D-shell D-shell Receptacle Plug Receptacle Plug Workstation 7161 7453- RS-232 Port Printer K641 497-0411815 - 4m 497-0411815 - 4m 1416-C417-0040 1416-C417-0040 16294...

  • Page 55: Ncr 5972-1000 Remote Customer Display And Adapter Cables

    7454 Retail Terminal Site Preparation NCR 5972-1000 Remote Customer Display and Adapter Cables Parallel I/F Cable 497-0411000 - 0.6 M To 7454 Cust. Display Port 25-pin 24-pin D-Shell 497-0405676 - 4 M Microfit Receptacle 1416-C278-0040 Receptacle Customer Display To Power...

  • Page 56: External Cd-Rom Cable

    7454 Retail Terminal Site Preparation External CD-ROM Cable 25-pin 28-pin 497-0413011 - 0.6 M D-Shell Sub-Miniture 1416-C464-0006 Receptacle D-Plug To 7454 To CD-ROM Cust. Display Parallel Port Connector To CD-ROM Power Connector 2 mm Plug Access Hole Diameters 57 mm...

  • Page 57: Power, Ac

    7454 Retail Terminal Site Preparation Automatic Change Dispenser Serial Cable 497-0404832 9-Pin 25-pin D-shell D-shell Receptacle Plug 18056 Power, AC 006-1009037 Workstation 45 mm Access Hole Diameter (1.75 in.) 15405...

  • Page 58: Environmental Requirements

    7454 Retail Terminal Site Preparation Environmental Requirements Barometric Pressure The 7454 Retail Terminal is designed to operate within the following barometric pressure conditions: • Maximum operating altitude: 3,000 m (9,843 ft.) • Operating range of pressure: 105 kPa to 69 kPa (15.2 lb/in. to 10.0 lb/in.)

  • Page 59: Humidity

    7454 Retail Terminal Site Preparation Humidity The 7454 Retail Terminal is designed to operate within the humidity ranges shown below. Continuous operation must be avoided, however, at or near the humidity limits, or in locations where humidity changes exceed the humidity restrictions. In no case should the 7454 Retail Terminal be subjected to condensation.
  • Page 60 7454 Retail Terminal Site Preparation...

  • Page 61: Ac Power Line Transient Protection

    Malfunction and/or component failure as a result of power quality problems is not covered by the NCR Maintenance Agreement. NCR accepts no liability for any such occurrence or for its consequences. When power transient suppression is required, the suppressors used should meet the following minimum requirements: •...

  • Page 62: Data Line Transient Protection

    Be installed in accordance with all applicable local, state, and national electrical codes and regulations. Note: In certain countries, NCR is able to supply both power and data line transient suppressors as well as a comprehensive line of power conditioning equipment. For application data, contact your NCR...
  • Page 65 7454 (15 inch) w/K450 2183 Cash Drawer, 14 Integrated Customer Display, 2189 Cash Drawer, 14 2214 Thermal Fiscal P, 18 7454 (15 inch) with PCMCIA, 11 2336-K007 External CD-ROM 7454 Power Consumption Drive, 24 Matrix, 28 2336-K008 USB RS-232 Port Server, 24 —A—...
  • Page 66 —T— Integrated 5973 International VFD Customer Display, 21 Thermal Test Points, 30 Transient Protection —M— AC Power Line, 1 Data Line, 2 Model Number, 2 —V— —N— Ventilation Clearance, 26 NCR 7197 Thermal Receipt Printer, 18 —W— Wiring Requirements, 5...
  • Page 68 B005-0000-1257 Dec 2002 Printed on recycled paper...
