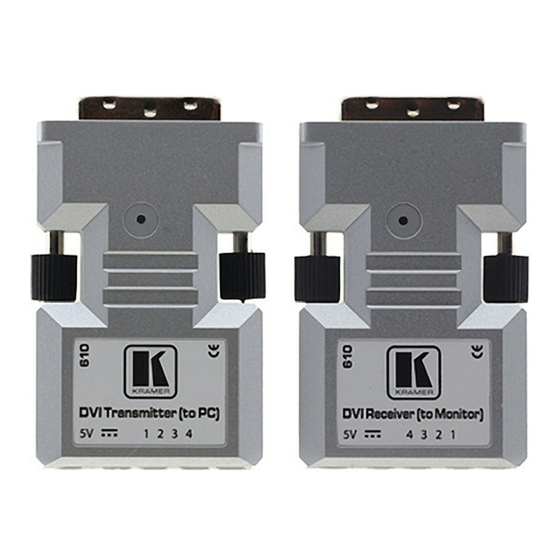

- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: 610T, Detachable Optical DVI Transmitter 610R, Detachable Optical DVI Receiver...
-
Page 2: Table Of Contents
Avoiding Pitfalls using the 610T and 610R Technical Specifications Figures Figure 1: 610 Detachable Optical DVI Transmitter and Receiver Figure 2: Connecting the Fiber Optic Cables Figure 3: Connecting the 610T/610R Detachable Optical DVI Transmitter/Receiver Tables Table 1: Technical Specifications of the 610T/610R... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Overview
Overview Overview The high performance Kramer 610T and 610R have a transmission range of up to 1640 ft. (500 meters) of single link high-resolution digital graphic data with LC connectors. The 610T converts electrical over four fiber optic cables signals to optical signals and the 610R decodes the optical signals back to electrical signals. -
Page 5: Powering The 610T And The 610R
The Kramer 610T can be powered either by an external power adapter or internally by the 5V pin on the DVI card of the computer. The 610T automatically detects if it is being powered via the external power adapter, and if so, the internal power supply will be cut off. -
Page 6: Using The Detachable Optical Dvi System
5.1.2 Capturing the Virtual EDID You can capture the EDID of the display device on the 610T so that when the computer connects to the 610T, it will read the virtual EDID information and identify the display device. This procedure is performed only once for the connected display device. -
Page 7: Connecting The Detachable Optical Dvi Transmitter/Receiver
Using the Detachable Optical DVI System 5.2 Connecting the Detachable Optical DVI Transmitter/Receiver To connect the 610T Detachable Optical DVI Transmitter with the 610R Detachable Optical DVI Receiver, as the example in Figure 3 illustrates, do the following: Set the EDID of the display device (see section 5.1). -
Page 8: Avoiding Pitfalls Using The 610T And 610R
Display Host Computer Figure 3: Connecting the 610T/610R Detachable Optical DVI Transmitter/Receiver 5.3 Avoiding Pitfalls using the 610T and 610R In the event that any of these problems occur, we recommend the following: If the display device shows only a black screen:... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications Table 1 includes the technical specifications: Table 1: Technical Specifications of the 610T/610R INPUTS: DVI IN (610T) OUTPUTS: DVI OUT (610R) RESOLUTION: Up to WUXGA @ 60Hz (1.65Gbps) OPERATING TEMPERATURE: 0° C to 50° C STORAGE TEMPERATURE: -40°... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
