Kramer 691 Quick Start Manual

691 Quick Start Guide
This guide helps you install and use your 691 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
691 HDBT 2.0 Optical Transmitter
1 Power adapter (12V DC)

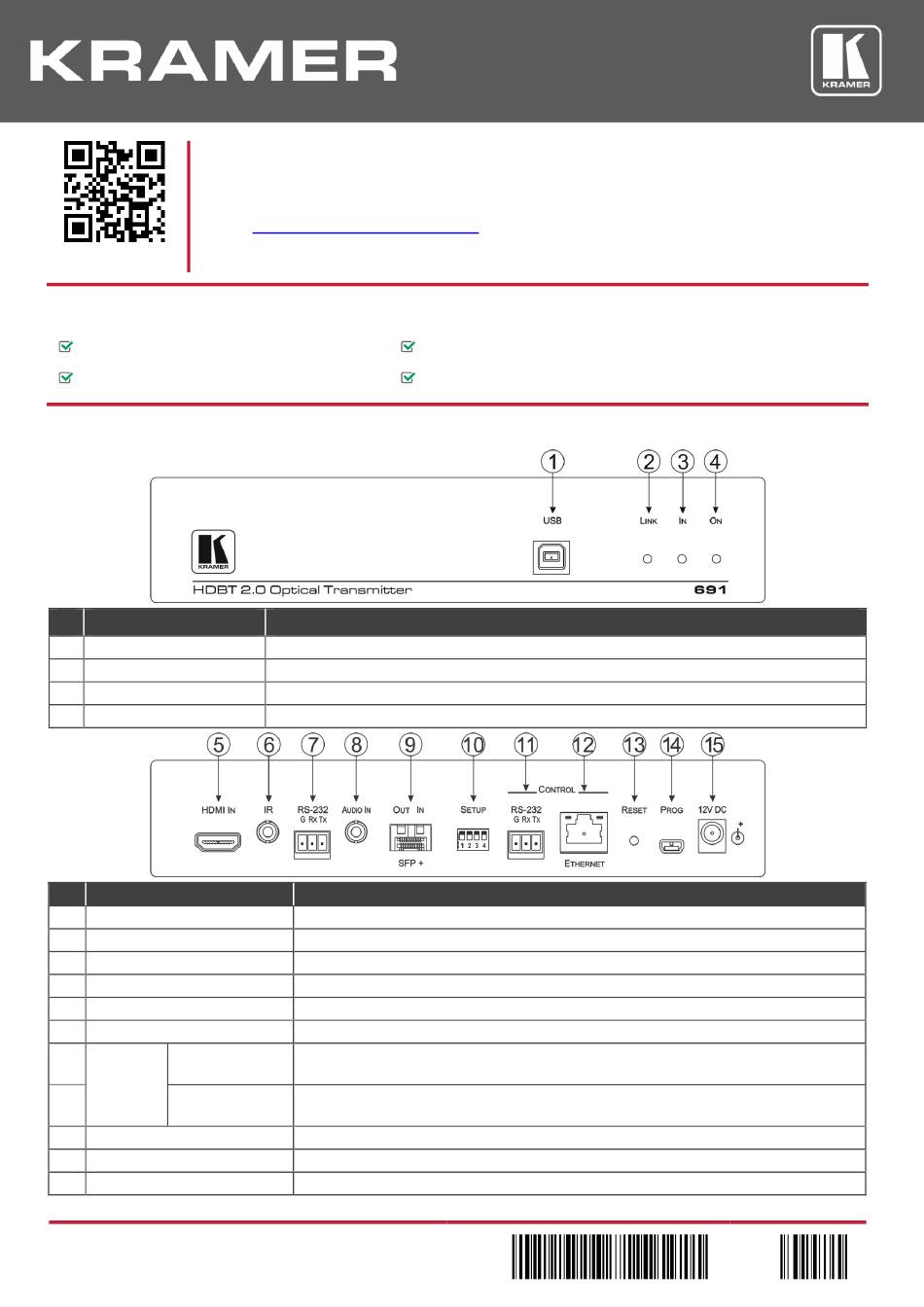

Step 2: Get to know your 691
# Feature
1 USB Connector
2 LINK LED
3 IN LED
4 ON LED
# Feature
5 HDMI IN Connector
6 IR 3.5mm Mini Jack Connector
7 RS-232 3-pin Terminal Block
8 AUDIO IN 3.5mm Mini Jack
9 OUT IN SFP+ Connector
10 SETUP 4-way DIP-switch
11 CONTROL RS-232 3-pin
Terminal Block
12 ETHERNET RJ-45
Connector
13 RESET Switch
14 PROG Mini USB Connector
15 12V DC Power Connector
691 Quick Start (P/N: 2900-300523QS REV 3)
www.kramerav.com/downloads/691
Function
Connect to the USB host for traffic extension, (for example, a laptop)
Lights green when the HDBT link is valid
Lights green when an HDMI active signal device is connected
Lights green when the device receives power
Function
Connect to the HDMI source
Connect to an external infrared transmitter or sensor for traffic extension
Connect to an RS-232 controller for traffic extension (for example, a PC to control the projector)
Connect to the stereo, analog audio source
Connect the fiber optic cable to the OUT IN SFP+ LC connector
Sets the device behavior
Connect to the serial controller to control this device
Connect to the Ethernet controller to control this device or to a LAN to extend network traffic to
the receiver
Press and hold while power-cycling the device to reset to factory default parameters
Connect to a PC to perform firmware upgrades
Connect to the supplied power adapter
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N:
2 9 0 0 - 3 0 0 5 2 3 Q S
Rev:
3
