Kramer 675T Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

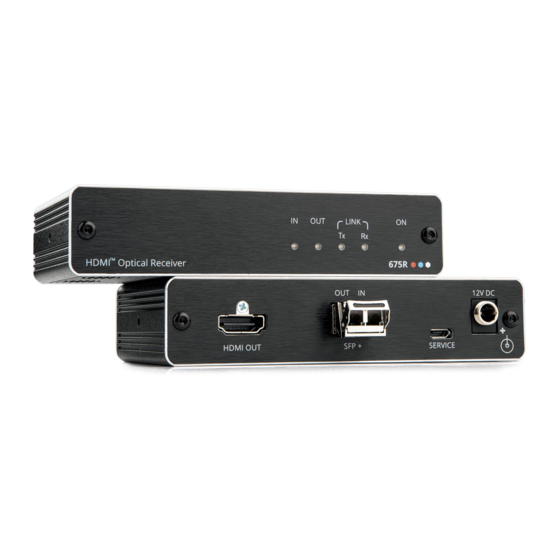

675T HDMI Optical Transmitter or
675R HDMI Optical Receiver

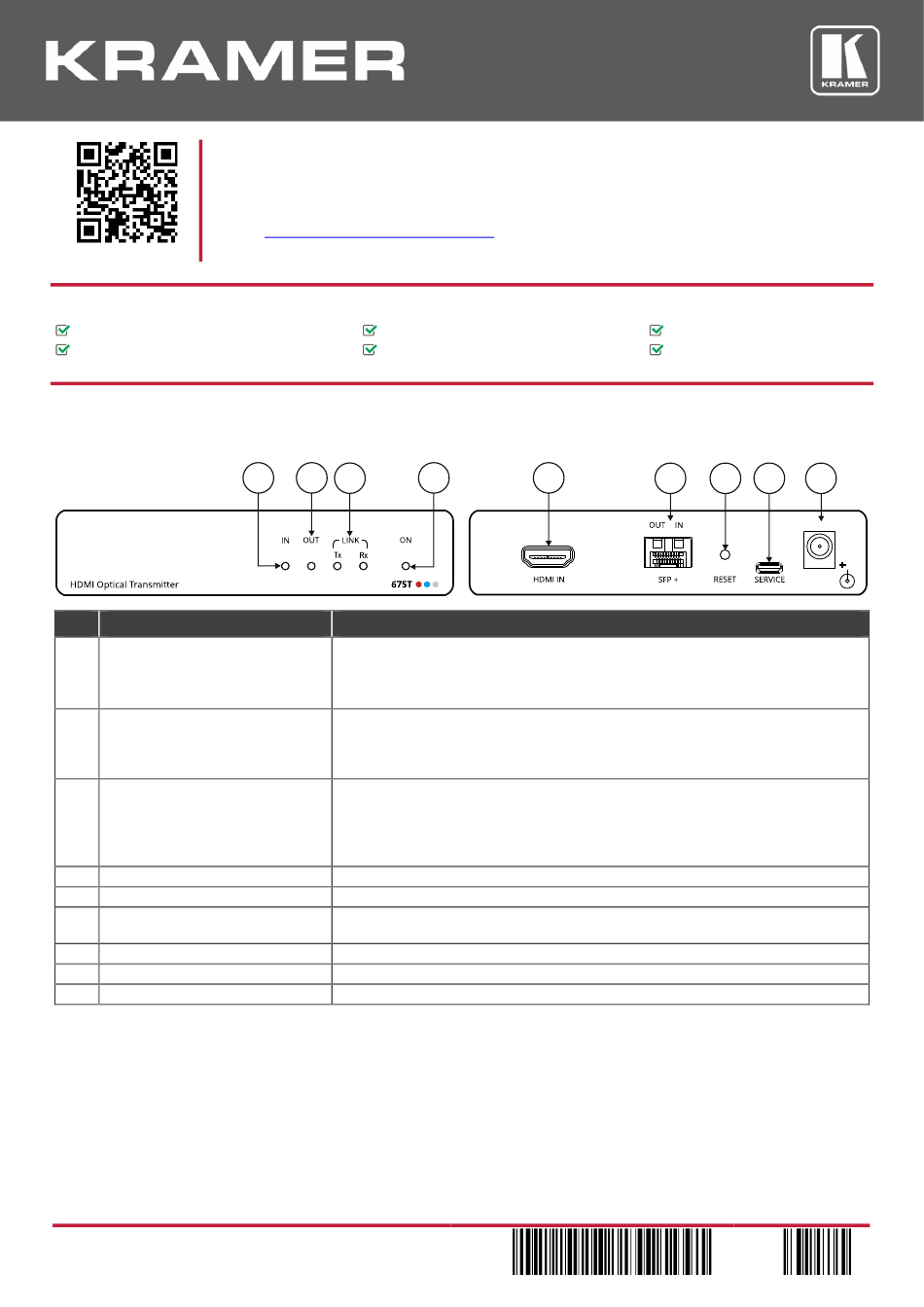

Step 2: Get to know your 675T and 675R
675T
# Feature
1 IN LED
2 OUT LED
3 LINK Tx and Rx LEDs
4 ON LED
5 HDMI™ IN Connector
6 OUT IN SFP+ Connector Opening
7 RESET Recessed Button
8 SERVICE Micro USB Port
9 12V DC Power Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
675T/ 675R Quick Start
675T/675R Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/675T
upgrades are available.
1 Power adapter and cord per device
4 Rubber feet
1 2 3
Function
Lights green when a connected source device (with an active HDMI signal) is
detected.
Flashes 4 times green when resetting the device.
Off when a connected source device with an active signal is not detected.
Lights green when both a connected HDMI source (with an active HDMI signal) and
a connected far-end HDMI acceptor are detected.
Off if either the source or the acceptor is not connected, or an active signal is not
present.
Light green when an optical module is connected and an active optical link is
detected.
Light red when an optical module is connected, but an active optical link is not
detected.
Off when the optical module is disconnected.
Lights green when the device receives power.
Connect to an HDMI source.
Connect the Kramer certified optical module and connect the fiber optic cable to the
module (purchased separately).
Press and hold to reset settings to factory default values.
Connect to a PC to perform firmware upgrade (via K-Upload).
12V DC connector for powering the unit.
675T/675R for the first time.
to download the latest user manual and check if firmware
4 5
P/N:
2900- 301294QS
1 Quick start guide
1 Bracket set per device
6 7 8 9
12V DC
Rev:
3
