- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: 611T, 611R Fiber Optic Transmitter/Receiver P/N: 2900-009009 Rev 4...
-
Page 3: Table Of Contents
Overview Defining the 611T, 611R Fiber Optic Transmitter/Receiver Connecting the 611T, 611R Technical Specifications Figures Figure 1: 611T Fiber Optic Transmitter Figure 2: 611R Fiber Optic Receiver Figure 3: Connecting the 611T, 611R Fiber Optic Transmitter/Receiver 611T, 611R – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer 611T, 611R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

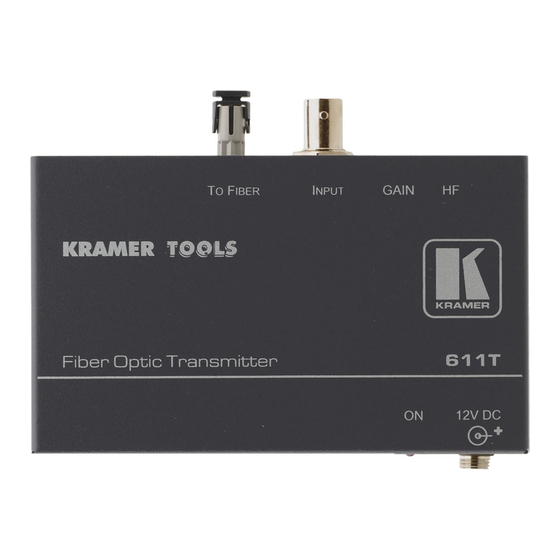

Overview The 611T and 611R are a high-performance fiber optic transmitter and receiver for composite video signals. The 611T transmitter converts a composite video signal into a fiber optic signal and the 611R receiver converts the fiber optic signal back into a composite video signal. -
Page 8: Figure 2: 611R Fiber Optic Receiver
Cable compensation (high frequency) control trimmer GAIN Trimmer Video level control trimmer ON LED Illuminates when the unit is powered ON 12V DC Power Connector Connects to the power supply to supply power to the unit 611T, 611R - Overview... -
Page 9: Connecting The 611T, 611R
2. On the 611R, connect the OUTPUT BNC connector to a composite video acceptor (for example, a video recorder). 3. Connect a fiber optic cable from the TO FIBER connector on the 611T to the FROM FIBER connector on the 611R. -
Page 10: Figure 3: Connecting The 611T, 611R Fiber Optic Transmitter/Receiver
Figure 3: Connecting the 611T, 611R Fiber Optic Transmitter/Receiver 611T, 611R - Connecting the 611T, 611R... -
Page 11: Technical Specifications
Technical Specifications INPUT: Composite video, 1Vpp/75Ω on a BNC connector (611T); Fiber optic ST connector (611R) OUTPUT: Fiber optic ST connector (611T); Composite video, 1Vpp/75Ω on a BNC connector (611R) OPERATION DISTANCE: Up to 5km (3.1mi) VIDEO BANDWIDTH (-3dB): 55MHz DIFF. - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
