- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: 614T One-Fiber Detachable Optical DVI Transmitter 614R One-Fiber Detachable Optical DVI Receiver P/N: 2900-300249 Rev 4...
-
Page 3: Table Of Contents
Using the Detachable Optical DVI System Capturing the EDID Connecting the One-Fiber Detachable Optical DVI System Avoiding Pitfalls with the 614T and 614R Technical Specifications Figures Figure 1: The Auto EDID Button on the 614T Figure 2: Connecting the 614T/614R 614T, 614R – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 614T, 614R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

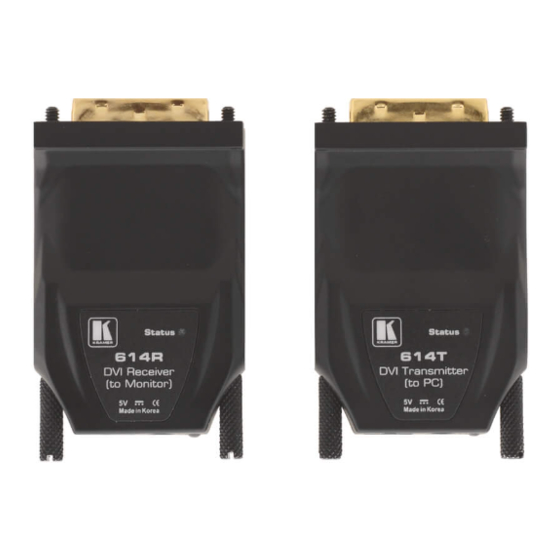

DVI-D signals with resolutions of up to 1920x1200 at 60Hz over one multimode fiber optic cable with SC connectors. The 614T converts the DVI-D signal to an optical signal that it transmits to the 614R. The 614R decodes the optical signals back to a single link DVI-D signal. -
Page 8: Powering The 614T And The 614R
Your 614T/614R pair comes with two 5V DC power adapters. The 614R module must always be powered by the power adapter. The 614T can be powered either by an external power adapter or internally by the 5V pin on the DVI card of the computer. -
Page 9: Using The Detachable Optical Dvi System
The factory default EDID is set to UXGA (1600x1200). If your display has this resolution, you do not need to capture the EDID. You can capture the EDID of the display device on the 614T so that when the computer connects to the 614T, it reads the virtual EDID information and identifies the display device. -
Page 10: Connecting The One-Fiber Detachable Optical Dvi System
Section 4.1). 2. Plug the 614T DVI connector directly to the DVI connector of the computer. Do not use any intermediate cable or adapter between them. 3. Connect the 614R to the 5V DC power adapter and connect the adapter to the mains electricity. -
Page 11: Avoiding Pitfalls With The 614T And 614R
7. If the transmitter does not power up, connect the 5V power adapter to the 614T transmitter, and connect the adapter to the mains electricity. You can use the power supplied through a DVI pin from the graphic cards instead of using the power adapter. - Page 12 Be sure that the resolution is set for WUXGA (1920x1200) at 60Hz, or lower Reset the system Disconnect and reconnect the optical DVI cables Be sure that at all times the cables are stored and used away from liquid or dirt. 614T, 614R - Using the Detachable Optical DVI System...
-
Page 13: Technical Specifications
Technical Specifications INPUTS: 1 single link DVI-D (614T), 1 multimode fiber optic with SC connector (614R) OUTPUTS: 1 multimode fiber optic with SC connector (614T), 1 single link DVI-D (614R) MAX DATA RATE: 2.25Gbps, up to WUXGA, 2K or 1080p @36bit color depth (does not support XGA) MAX. - Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
