Kramer Electronics, Ltd.
USER MANUAL
Models:
650T
DVI-Coax Transmitter
650R
Coax-DVI Receiver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 650T and is the answer not in the manual?

Questions and answers

Summary of Contents for Kramer 650T

  • Page 1 Kramer Electronics, Ltd. USER MANUAL Models: 650T DVI-Coax Transmitter 650R Coax-DVI Receiver...
  • Page 2: Table Of Contents

    Getting Started Quick Start Overview 650T DVI-Coax Transmitter 650R Coax-DVI Receiver Achieving the Best Performance Your 650T / 650R DVI-Coax Transmitter / Receiver Your 650T DVI-Coax Transmitter Your 650R Coax-DVI Receiver Using the DVI-Coax Transmitter/Receiver Technical Specifications Figures Figure 1: 650T DVI-Coax Transmitter Features...
  • Page 3: Introduction

    Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com...
  • Page 4: Quick Start

    Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 5: Overview

    650T / 650R away from moisture, excessive sunlight and dust 1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE 2 IR and RS-232 data is available only when using a 5-plug coax cable and the power coax line is connected...
  • Page 6: Your 650T / 650R Dvi-Coax Transmitter / Receiver

    Your 650T / 650R DVI-Coax Transmitter / Receiver Caution – No operator-serviceable parts inside unit. Warning – Use only the Kramer Electronics input power wall adapter that is provided with this unit Warning – Disconnect power and unplug unit from wall before installing or removing device or servicing unit.

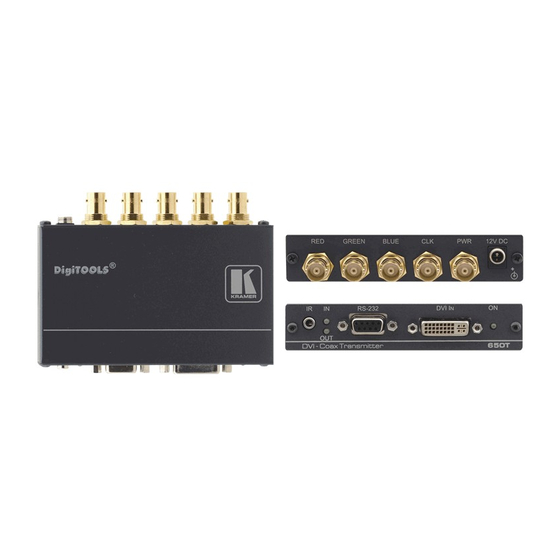

  • Page 7: Figure 1: 650T Dvi-Coax Transmitter Features

    RS-232 9-pin D-sub Connector Connects to an RS-232 computer source DVI IN Connector Connects to a DVI source ON LED Illuminates when receiving power 1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE...
  • Page 8: Your 650R Coax-Dvi Receiver

    12V DC +12V DC connector for powering the unit IR Connector Connects to an IR sensor or transmitter 1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 9: Using The Dvi-Coax Transmitter/Receiver

    Connect the 650T red, green, blue, and clock BNC connectors to the 650R red, green, blue and, clock BNC connectors Connect 12V DC power supplies to both the 650T and the 650R (not shown in Figure 3). The remote power, IR remote control...
  • Page 10: Figure 3: Dvi-To-Coax Transmitter And Receiver System

    Using the DVI-Coax Transmitter/Receiver Figure 3: DVI-to-Coax Transmitter and Receiver System KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 11: Technical Specifications

    Technical Specifications Technical Specifications 650T / 650R technical specifications are shown in Table 3: Table 3: 650T / 650R Technical Specifications 650T 650R INPUTS: 1 DVI connector 5 BNC connectors, IR on 3.5mm mini jack OUTPUTS: 5 BNC connectors 1 DVI connector, IR on 3.5mm mini jack BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel...
  • Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
