- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: 610T Detachable Optical DVI Transmitter 610R Detachable Optical DVI Receiver P/N: 2900-000152 Rev 6...
-
Page 2: Table Of Contents
Defining EDID Your Detachable Optical DVI Transmitter/ Receiver Using the Detachable Optical DVI System Capturing the EDID Connecting the Detachable Optical DVI Transmitter/Receiver Avoiding Pitfalls with the 610T and 610R Technical Specifications Figures Figure 1: 6 10 Detachable Optical DVI Transmitter and Receiver... -
Page 3: Introduction
• LED signboards in streets and in stadiums • Digital signage The package includes: • 610T Detachable Optical DVI Transmitter and 610R Detachable Optical DVI Receiver • 2 power adapters (5V DC input) • This user manual 610T, 610R - Introduction... -
Page 4: Getting Started
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer 610T, 610R away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning:... -
Page 5: Overview
Inputs: DVI-D on a DVI-I connector (610T); 4 LC optical connectors for R, G, B & clock (610R) • Outputs: 4 LC optical connectors for R, G, B & clock (610T); DVI-D on a DVI- I connector (610R) • No EMI/RFI •... -
Page 6: Defining Edid

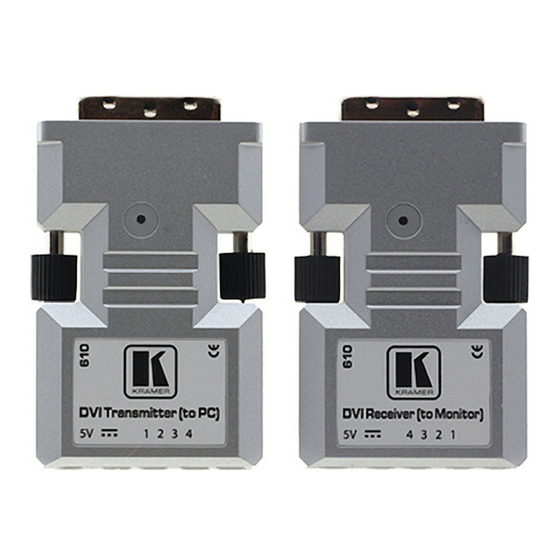

EDID is defined by a standard published by the Video Electronics Standards Association (VESA). Your Detachable Optical DVI Transmitter/ Receiver Figure 1 illustrates the 610T and 610R detachable optical DVI extension system: Figure 1: 610 Detachable Optical DVI Transmitter and Receiver 610T, 610R - Overview... -
Page 7: Using The Detachable Optical Dvi System
The EDID of the display device is captured onto the transmitter for the computer to read. You can capture the EDID of the display device on the 610T so that when the computer connects to the 610T, it will read the virtual EDID information and identify the display device. -
Page 8: Connecting The Detachable Optical Dvi Transmitter/Receiver
Section 4.1). 2. Plug the 610T DVI connector directly to the DVI connector of the computer. Do not use any intermediate cable or adapter between them. 3. Connect the 610R to the 5V DC power adapter and connect the adapter to the mains electricity. -
Page 9: Avoiding Pitfalls With The 610T And 610R
8. Set up the screen resolution as required. Figure 4: Connecting the 610T/610R Detachable Optical DVI Transmitter/Receiver Avoiding Pitfalls with the 610T and 610R If any of these problems occur, we recommend the following: If the display device shows only a black screen: •... - Page 10 Be sure that the resolution is set for WUXGA (1920 x 1200) at 60Hz, or lower • Reset the system • Disconnect and reconnect the optical DVI cables Be sure that at all times the cables are stored and used away from liquid or dirt. 610T, 610R - Using the Detachable Optical DVI System...
-
Page 11: Technical Specifications
Technical Specifications INPUTS: DVI IN (610T), 4 LC optical connectors (610R) OUTPUTS: 4 LC optical connectors (610T), DVI OUT (610R) RESOLUTION: Up to WUXGA @60Hz (1.65Gbps) POWER SOURCE: 5V DC, 200mA max. (610T); 380mA max. (610R) OPERATING TEMPERATURE: 0° to +50°C (32° to 122°F) STORAGE TEMPERATURE: -30°... - Page 13 " " P/N: 2900- 000152 Rev: 6...
