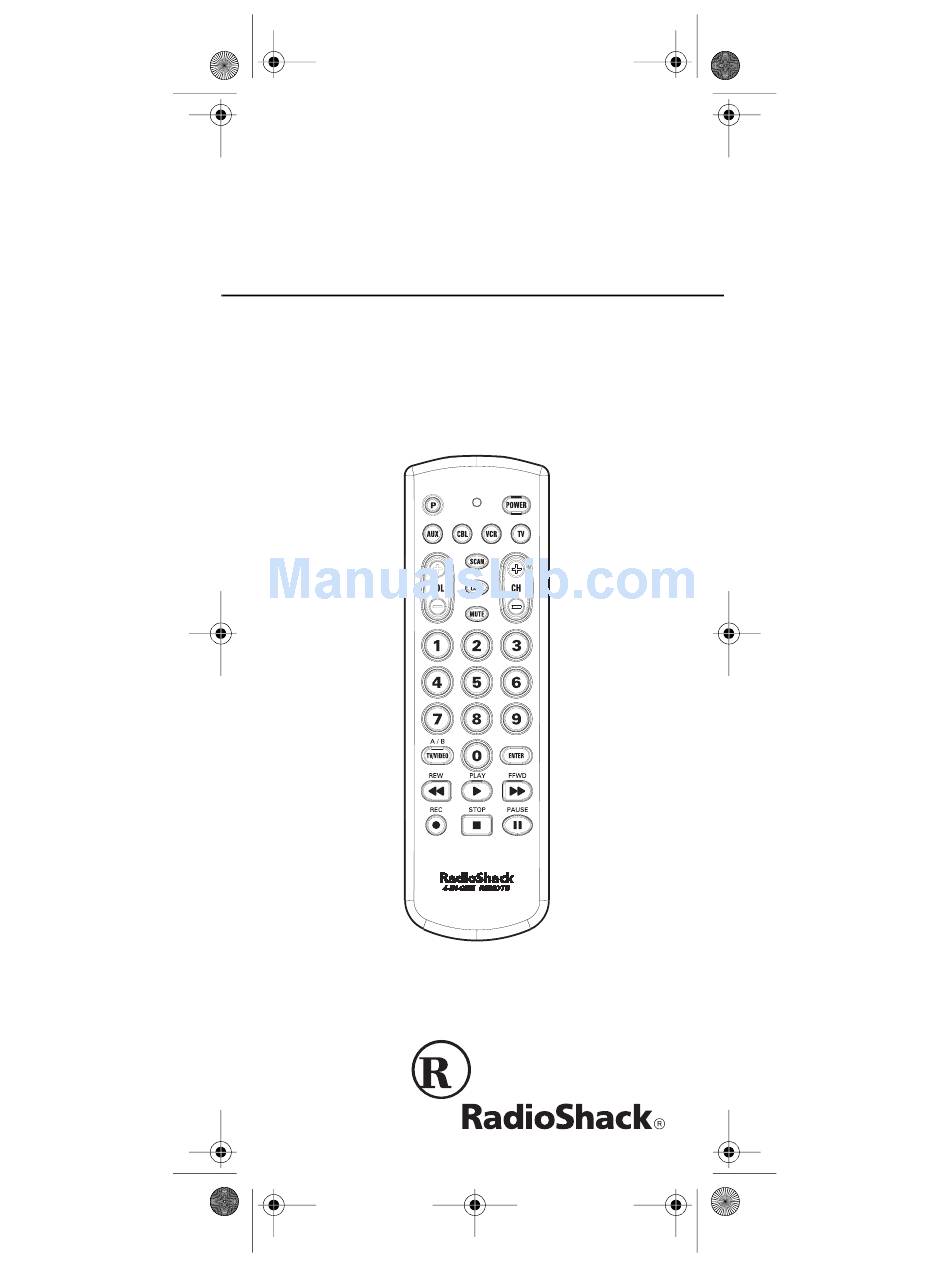

15-1991.fm Page 1 Wednesday, October 20, 1999 10:37 AM
Cat. No. 15-1991
OWNER'S MANUAL
4-in-One Remote Control
Please read before using this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4-IN-1 REMOTE CONTROL and is the answer not in the manual?

Questions and answers

Related Manuals for Radio Shack 4-IN-1 REMOTE CONTROL

Summary of Contents for Radio Shack 4-IN-1 REMOTE CONTROL

  • Page 1 15-1991.fm Page 1 Wednesday, October 20, 1999 10:37 AM Cat. No. 15-1991 OWNER’S MANUAL 4-in-One Remote Control Please read before using this equipment.
  • Page 2 15-1991.fm Page 2 Wednesday, October 20, 1999 10:37 AM FEATURES Your RadioShack 4-in-One Remote control can replace up to four infrared remote controls. You can use it to control your TV, VCR, TV/ VCR combination, cable converter, CD player and more. Unlike some universal remote controls, the 4- in-One Remote is preprogrammed with the most commonly used commands, so it does...

  • Page 3: Table Of Contents

    15-1991.fm Page 3 Wednesday, October 20, 1999 10:37 AM CONTENTS Introduction ..........4 Preparation ..........5 Installing Batteries ........5 Device Types .......... 6 Setting Up Your Remote Control .... 6 To Operate Your TV/VCR Combination .. 7 Operation ............ 8 Converting Device Keys ......

  • Page 4: Introduction

    15-1991.fm Page 4 Wednesday, October 20, 1999 10:37 AM INTRODUCTION Your RadioShack 4-in-One Remote was de- signed to control the most commonly used functions on your TV, VCR, TV/VCR combina- tion, cable converter, and CD player. It might not be able to duplicate some of your original remote control's seldom-used functions.

  • Page 5: Preparation

    15-1991.fm Page 5 Wednesday, October 20, 1999 10:37 AM PREPARATION INSTALLING BATTERIES Your remote control requires four AAA batter- ies (not supplied) for power. For the best per- formance and longest life, we recommend RadioShack alkaline batteries. Cautions: • Use only fresh batteries of the required size and recommended type.

  • Page 6: Device Types

    15-1991.fm Page 6 Wednesday, October 20, 1999 10:37 AM Note: Do not place objects on top of the re- mote control after you have installed the batter- ies. This can press keys for an extended period of time and reduce the battery life. DEVICE TYPES You can use the remote control's device keys to control the following types of devices:...

  • Page 7: To Operate Your Tv/Vcr Combination

    15-1991.fm Page 7 Wednesday, October 20, 1999 10:37 AM Note: If the code you entered is invalid, the red light blinks. 4. Point the remote control at your device and press . Your device should turn off POWER (or on, if it was off). If the remote does not operate your device, try the other codes listed in “Manufacturer Codes”...

  • Page 8: Operation

    15-1991.fm Page 8 Wednesday, October 20, 1999 10:37 AM OPERATION 1. Press the device key for the device you want to control. 2. Point the remote control toward the device you want to control, then press the desired command keys. 3.

  • Page 9: Punch-Through

    15-1991.fm Page 9 Wednesday, October 20, 1999 10:37 AM function, repeat Steps 1–2, then press twice. PUNCH-THROUGH The punch-through feature lets you alternately control two different devices without pressing the device keys for each one. A TV is often the only device that uses the vol- ume keys.

  • Page 10: Channel Scan

    15-1991.fm Page 10 Wednesday, October 20, 1999 10:37 AM Now, the device you chose will control volume whenever you press a volume key. CHANNEL SCAN You can use your remote control to scan through the channels of your TV, VCR, or cable box.

  • Page 11: If You Have Problems

    15-1991.fm Page 11 Wednesday, October 20, 1999 10:37 AM IF YOU HAVE PROBLEMS MANUAL CODE SEARCH If the 4-in-One Remote Control does not oper- ate your remote-controlled devices when you first set it up, you might have to manually find the correct codes for your devices.

  • Page 12: Determining The 4-Digit Code

    15-1991.fm Page 12 Wednesday, October 20, 1999 10:37 AM If necessary, repeat these steps for each de- vice. Note: Some VCRs and CD players do not have a POWER key on the original remote. If so, manually turn on the VCR, insert a tape or CD, and repeat the manual code search using instead of .

  • Page 13: Troubleshooting

    15-1991.fm Page 13 Wednesday, October 20, 1999 10:37 AM TROUBLESHOOTING If the remote control stops working after you have successfully tested the control for each device, or if you are unable to get the remote control to work at all: •...

  • Page 14: Manufacturer Codes

    15-1991.fm Page 14 Wednesday, October 20, 1999 10:37 AM MANUFACTURER CODES The following list tells you which 4-digit codes to enter to set up the remote control to operate your: • Cable Converter (see Page 14) • CD Player (see Page 16) •...
  • Page 15 15-1991.fm Page 15 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Cabletenna 0022 Cableview 0022 Century 0153 Citizen 0153, 0315 Colour Voice 0025 Comtronics 0040 Contec 0019 Eastern 0002 Emerson 0797 Everquest 0015, 0040 Focus 0400 GC Electronics 0207 Garrard 0153...

  • Page 16: Cd Players

    15-1991.fm Page 16 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. 0021 RadioShack 0015, 0315, 0883, 0303 0797 15-1288 Realistic 0207 16-1283, 15-1285A Recoton 0400 Regal 0020, 0259 Regency 0002 Rembrandt 0011 Runco 0000 SL Marx 0040 Samsung 0144, 0040 Scientific Atlanta...
  • Page 17 15-1991.fm Page 17 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. 0194 Burmester 0420 California Audio Lab 0029 Carrera 0194 Carver 0157, 0179, 0437 0000 Denon 0003, 0873 Emerson 0305, 0155, 0164, 0469 Fisher 0179, 0174, 0342 0009 Garrard 0420, 0393,...
  • Page 18 15-1991.fm Page 18 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Optimus 0000, 0087, 0280, 0671 0032 31-3042, 42-5041, 42-5044, 0179 13-1248, 14-545, 42-5015, 42-5049 0305 42-5048, 42-5061 0037 13-1251 0420 31-3041, 42-5022, 42-5025, 42-5071 0145 13-1258 0468 42-5045, 42-5060, 42-5062, 42-5063,...

  • Page 19: Home Automation

    15-1991.fm Page 19 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Rotel 0157, 0420 0157 0018 Sansui 0157, 0305 Sanyo 0179, 0087 Scott 0305, 0155, 0164 Sears 0305 Sharp 0037, 0180 Sherwood 0114, 0180, 0196, 0426 Sony 0000, 0185, 0490, 0604, 0605...

  • Page 20: Televisions

    15-1991.fm Page 20 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Expressvu 0775 General Instrument 0627, 0361, 0869 0775 Hitachi 0819 Hughes Network Sys- 0749 tems 0775 Jerrold 0627, 0361 Magnavox “0724, 0722 Memorex 0724 Next Level 0869 Optimus 0724...
  • Page 21 15-1991.fm Page 21 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Audiovox 0451, 0180, 0003, 0092, 0623 Baysonic 0180 Belcor 0019 Bell & Howell 0154, 0016 Bradford 0180 Brockwood 0019 Broksonic 0236, 0463, 0003 0180 Candle 0030, 0056, 0046 Carnivale 0030...
  • Page 22 15-1991.fm Page 22 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Emerson 0154, 0236, 0463, 0180, 0282, 0178, 0019, 0179, 0039, 0177, 0185, 0280, 0623, 0624 Envision 0030 Fisher 0154, 0159 Fujitsu 0179 Funai 0180, 0179, 0171 Futuretech 0180 0047, 0051,...
  • Page 23 15-1991.fm Page 23 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. 0056 0047, 0054, 0154, 0156, 0178 Logik 0016 Luxman 0056 0185 0150, 0030, 0178, 0019 0060, 0030, 0019, 0056, 0185 Magnavox 0054, 0030, 0179, 0020, 0096, 0187 Majestic 0016 Marantz...
  • Page 24 15-1991.fm Page 24 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Optimus 0154 13-1283 0166 31-3031, 31-3033, 31-3038, 31-3040 0250 Optonica 0093, 0165 Orion 0236, 0463, 0179 Panasonic 0051, 0250, 0055 Penney 0047, 0156, 0051, 0060, 0030, 0178, 0021, 0019, 0018, 0056, 0039, 0003,...
  • Page 25 15-1991.fm Page 25 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. RadioShack 0047, 0154, 0019, 0039 0165 16-232, 16-233, 16-236, 16-250, 16-260 0180 16-252, 16-253, 16-262, 16-292 0030 16-254, 16-255, 16-256, 16-265 0178 16-256, 16-263, 16-268, 16-280, 16-289 0056 16-288...
  • Page 26 15-1991.fm Page 26 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Sears 0047, 0054, 0154, 0156, 0178, 0179, 0056, 0159, 0171 Semivox 0180 Semp 0156 Sharp “0093, 0165, 0039 Shogun 0019 Signature 0016 Simpson 0187 Sony 0000 Soundesign 0180, 0178, 0179...

  • Page 27: Vcrs

    15-1991.fm Page 27 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Vidikron 0054 Vidtech 0178, 0019 Viking 0046 Wards 0054, 0165, 0030, 0178, 0021, 0019, 0179, 0056, 0016, 0020, 0096 White Westinghouse 0623, 0624 Yamaha 0030, 0019 Zenith 0017, 0016, 0092...
  • Page 28 15-1991.fm Page 28 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Curtis Mathes 0060, 0035, 0041, 0162 Cybernex 0240 Daewoo 0045, 0278, 0020, 0561 Daytron 0020 Denon 0042 Dynatech 0000 Electrohome 0037 Electrophonic 0037 Emerex 0032 Emerson 0037, 0184, 0000, 0121, 0043, 0209,...
  • Page 29 15-1991.fm Page 29 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Kenwood 0067, 0041, 0038 Kodak 0035, 0037 0037 Lloyd’s 0000, 0208 Logik 0072 0035 0240, 0043, 0061 MGN Technology 0240 0240, 0000 Magnasonic 0278 Magnavox 0035, 0039, 0081, 0000, 0149, 0110 Magnin...
  • Page 30 15-1991.fm Page 30 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. 0104, 0067, 0041, 0038, 0040 Nikko 0037 Nikon 0034, 0253 Noblex 0240 Olympus 0035 Optimus 0037 16-413, 16-419, 16-423, 16-534, 16-535, 16-624 0048 16-538, 16-539, 16-540, 16-542, 16-543, 16-544, 16-546, 16-627, 16-628...
  • Page 31 15-1991.fm Page 31 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Pilot 0037 Pioneer 0067, 0058 Portland 0020 Profitronic 0240 Proscan 0060, 0202 Protec 0072 Pulsar 0039 Quarter 0046 Quartz 0046 Quasar 0035, 0162, 0077, 0454, 1162 0060, 0035, 0048, 0240, 0042, 0149,...
  • Page 32 15-1991.fm Page 32 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Realistic (continued) 0240 16-514 0066 16-503 0048, 0062 Ricoh 0034, 0253 Runco 0039 0042 Samsung 0240, 0045 Sanky 0048, 0039 Sansui 0000, 0067, 0041, 0271, 0479 Sanyo 0047, 0240, 0104, 0046,...

  • Page 33: Tv/Vcr Combinations

    15-1991.fm Page 33 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Thomas 0000 Toshiba 0045, 0043, 0066, 0210, 0212 Totevision 0037, 0240 Unitech 0240 Vector 0045 Vector Research 0038, 0040 Video Concepts 0045, 0040, 0061 Videosonic 0240 Wards 0060, 0035, 0048, 0047,...
  • Page 34 15-1991.fm Page 34 Wednesday, October 20, 1999 10:37 AM RadioShack Manufacturer Code(s) Cat. No. Goldstar 0037 (TV: 0056) Harley Davidson 0000 Hitachi 0000 Lloyd’s 0000 Magnasonic 0278 Magnavox 0000, 0081 (TV: 0054) Magnin 0240 Memorex 0037, 1162 0240 Mitsubishi 0048 (TV: 0093) Optimus 1162...

  • Page 35: Care

    15-1991.fm Page 35 Wednesday, October 20, 1999 10:37 AM CARE To enjoy your 4-in-One Remote Control for a long time: • Keep the remote control dry. If it gets wet, wipe it dry immediately. • Use and store the remote control only in normal temperature environments.

  • Page 36: Specifications

    15-1991.fm Page 36 Wednesday, October 20, 1999 10:37 AM SPECIFICATIONS Power ........... 4 AAA Batteries IR Control Range ........26 ft 30 Dimensions (HWD) ..... 7 Inches (185 32 mm) Weight (Without Batteries) ..5.5 oz. (156 gm) Specifications are typical; individual units might vary.
