Summary of Contents for Spirit Empire SPT0045

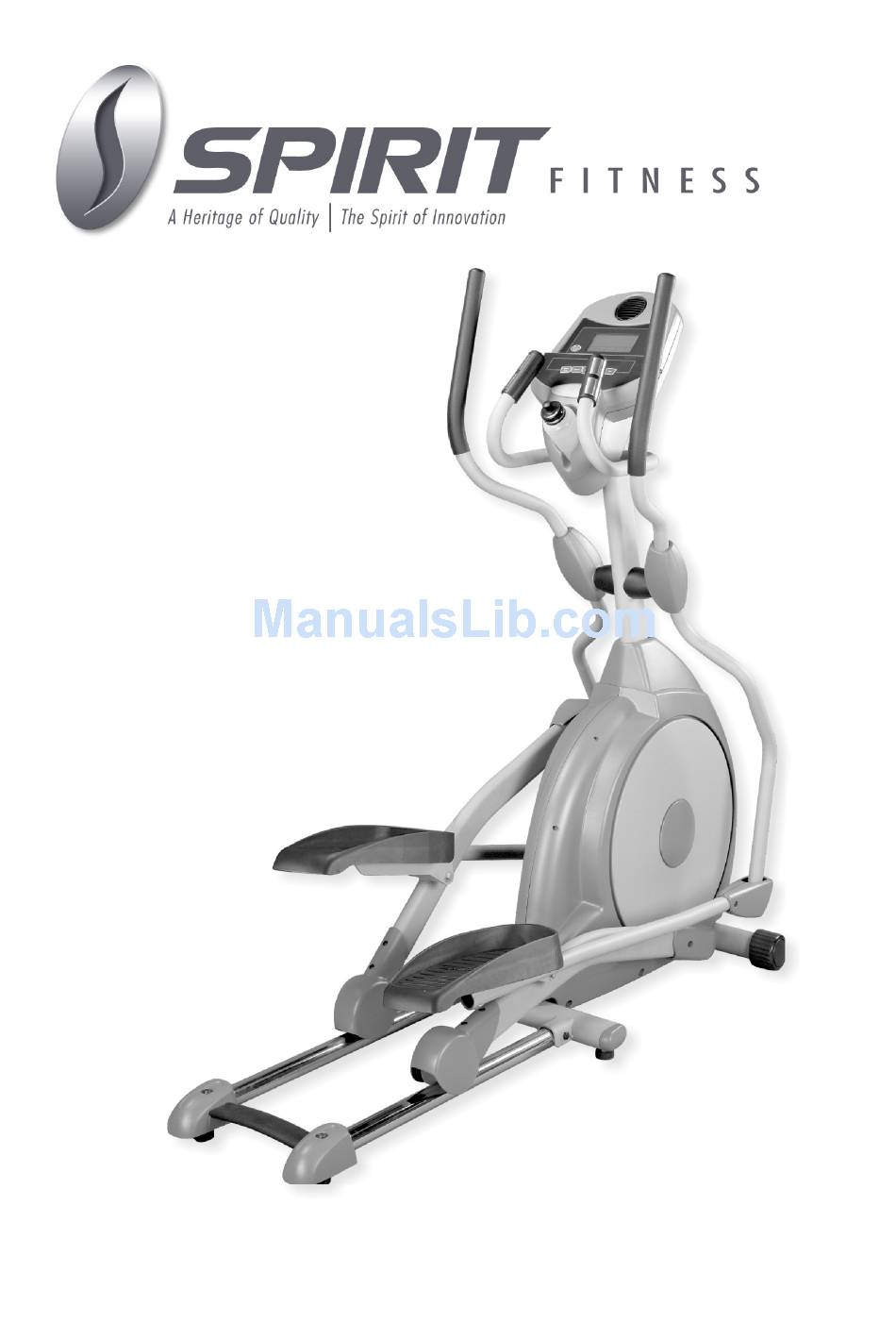

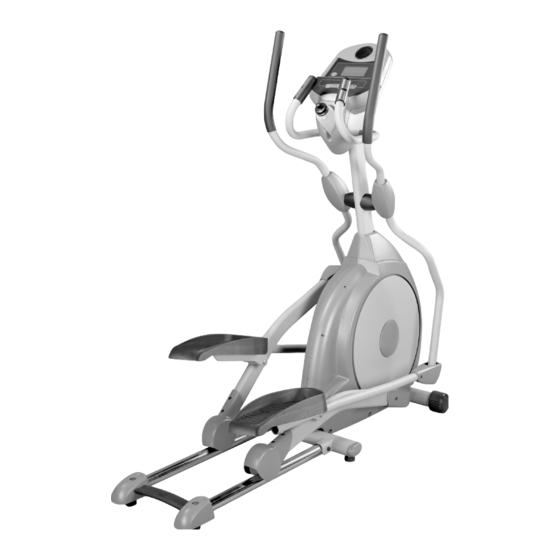

- Page 1 SPT0045 Empire Elliptical OWNER’S MANUAL Please carefully read this entire manual before operating your new elliptical...
-
Page 2: Table Of Contents
Table of Contents Product Registration………………………………………………………………………….. Important Safety Instructions………………………………………………………………… Important Electrical Information……………………………………………………………… Important Operation Instructions…………………………………………………………….. Assembly Instructions…………………………………………………………………………. Operation of Your New Elliptical……………………………………………………………... Maintenance……………………………………………………………………………………. Parts list…………………………………………………………….…………………………… Explode Drawing…………………………………………………………….…………………. Warranty / Service……………………………………………………………………………… ATTENTION- THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THAT APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY. -
Page 3: Product Registration
Congratulations on your new elliptical and welcome to the Spirit family! Thank you for your purchase of this quality elliptical trainer from Spirit Manufacturing, Inc. Your new elliptical was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING - Read all instructions before using this appliance. elliptical Do not operate on deeply padded, plush or shag carpet. Damage to both ■ elliptical carpet and may result. elliptical Keep children away from the ■ Keep hands away from all moving parts. ■... -
Page 5: Important Electrical Information
Important Electrical Information WARNING! NEVER remove any cover without first disconnecting AC power supply. ● If A.C. voltage varies by ten percent (10%) or more, the performance of your elliptical may be ● affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing. - Page 6 Assembly Pack Check List Step 1 #78. M5 x 10m/m #70. 5/16" x 15m/m #102. 5/16"x 23 x2T #97. 5/16"x 23 x1.5T Phillips Head Screw (4pcs) Hex Head Bolt (6pcs) Curved Washer (2pcs) Flat Washer (4pcs) Step 2 #75. 5/16" x 15m/m #70.
- Page 7 Assembly Pack Check List Step4 #84. 3.5x12m/m Sheet Metal Screw (8pcs) Tools #108. Combination M5 Allen Wrench & Phillips Head Screw Driver (1 pc) #110. 12m/m Wrench ( 1pc) #111. 13/14m/m Wrench ( 2pcs)
-
Page 8: Assembly Instructions
Assembly Instructions UNPACKING THE UNIT ■ 1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the dotted Line. Lift Box over the unit and unpack. 2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are found, or parts are missing, contact your dealer immediately. - Page 9 STEP 1: CONSOLE MAST ASSEMBLY Locate the Console Mast (10) and Console Mast Cover (41) and slide the Cover onto the Mast as far as it will go. Make sure the Console Mast Cover (41) is facing the correct way. At the top opening of the Main Frame (1) of the elliptical is a Computer Cable (32).
- Page 10 STEP 2: HANDLE BAR ASSEMBLY 1. Install the 2 pcs of Ø17 Wave Washers (101) onto the Left and Right side of the Handle Bar axle. 2. Slide the Lower Handle Bar (L&R) (4&5) onto the appropriate side of the axle. 3.
- Page 11 STEP 3: CONNECTING ARM ASSEMBLY Align the hole in the end of the Connecting Arms (L&R)(7&8)(pivoting rod end) with the hole in the bracket of the Lower Handle Bar (L&R) (4&5). The rod end should be on the inside of the Lower Handle Bar (L&R) (4&5). bracket. Take 2pcs of 5/16"×1-1/4" Hex Head Bolts (71) and install it through the Lower Handle Bar (L&R) (4&5)) bracket and the rod end.
- Page 12 STEP 4: PLASTICS ASSEMBLY 1. Install the Connecting Arm Covers (L & R) (59 & 60) over the connection of the rod end and Lower Handle Bar (L&R) (4&5) with 4pcs of M5×15m/m Phillips Head Screws(79) and 2pcs of Ø 3.5×12m/m Sheet Metal Screws (84) by using the Combination M5 Allen Wrench &...
-
Page 13: Operation Of Your New Elliptical
Transportation elliptical is equipped with two transport wheels which are engaged when rear of the Elliptical is lifted. Operation of Your Elliptical Getting familiar with the control panel Starting a program Quick Start After the console powers up you may press the Start key to begin, this will initiate the Quick Start mode. -
Page 14: Preset Programs
Manual Using the Up/Down keys, highlight the Manual icon at the top of the display and press Enter key. The profile will be blinking and you may use the Up/Down keys to adjust the program work level and then press Enter. The Time window will now be blinking. Use the Up/Down keys to adjust the program Time and then press Enter. - Page 15 User Program This mode allows you to build and save your own custom program. Press the Up or Down key until the User icon at the top of the display is blinking then press Enter. The first column of the profile will be blinking. Use the Up/Down keys to adjust the work level then press Enter.
- Page 16 FUNCTIONS TIME: Count up: accumulates training time from zero to 99:59. Count down: counts down from preset time to zero. SPEED/ RPM: Automatically toggles between SPEED and RPM every 6 seconds. Speed is in miles per hour (or kilometers per hour) DISTANCE: Count up: accumulates training distance from 0.00 to 99.99 miles.
-
Page 17: Maintenance
Maintenance: 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, or rough feeling, develops the cause is most likely dirt build-up on the rear rails and poly-urethane wheels. Clean the rails and wheels with a lint free cloth and rubbing alcohol. -
Page 18: Parts List
Parts List DESCRIPTION O'TY Main Frame Pedal Arm (L) Pedal Arm (R) Lower Handle Bar (L) Lower Handle Bar (R) Bushing Housing, Pedal Arm Connecting Arm (L) Connecting Arm (R) Cross Bar Console Mast Idler Wheel Assembly Crank Axle Swing Arm (L) Swing Arm (R) Rail Tube Rail Strap... - Page 19 DESCRIPTION O'TY Gear Motor 400m/m_Sensor W/Cable Sensor Rack 850m/m_Handpulse W/Cable Assembly 37~4 Ø3 × 20m/m_Tapping Screw Power Adaptor Sliding Wheel , Urethane 40~1 3/8" × 2"_Flat Head Socket Bolt Rubber Foot 40~2 Console Mast Cover Side Case （ ） Side Case （...
- Page 20 DESCRIPTION O'TY 5 × 16m/m_Tapping Screw 5 × 25m/m_Tapping Screw 4.8 × 38m/m_Sheet Metal Screw 5 × 16m/m_Tapping Screw Ø3.5 × 12m/m_Sheet Metal Screw Ø17_C Ring M8 × 7T_Nyloc Nut 1/4" _Nyloc Nut 3/8" × 7T_Nyloc Nut 3/8" -UNF26 × 4T_Nut 3/8"...
-
Page 21: Explode Drawing
Explode Drawing... -
Page 22: Warranty / Service
The various components of the Elliptical are warranted against defects and workmanship for the time periods specified as follows: SPT0045 – Empire Frame Lifetime Brake Lifetime parts... -
Page 23: Warranty Information
WARRANTY INFORMATION SPT0045 Congratulations on your purchase! As of January 1 2012, new legislation under the Australian Consumer Law requires certain information to be included in any product warranty issued in Australia. This warranty compliments the warranty found in the manual and has been developed in line with the Australian Consumer Law. - Page 24 The service centre representative will assess the claim. If: 1) there is a minor fault, they can offer either a replacement spare part, replacement unit, repair or other suitable remedy; 2) there is a major fault, they can offer a replacement, repair or suggest you return to the store you purchased it from for a full refund.
