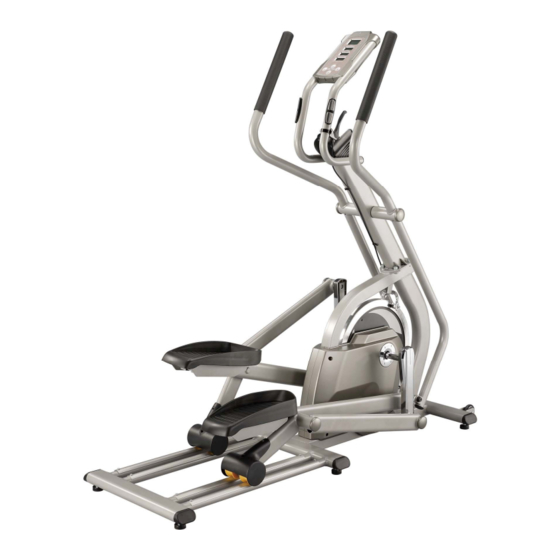

Spirit SE500 Service Manual
  1. Manuals
  2. Brands
  3. Spirit Manuals
  4. Elliptical Trainer
  5. SE500
  6. Service manual

Spirit SE500 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
SE500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE500 and is the answer not in the manual?

Questions and answers

Related Manuals for Spirit SE500

Summary of Contents for Spirit SE500

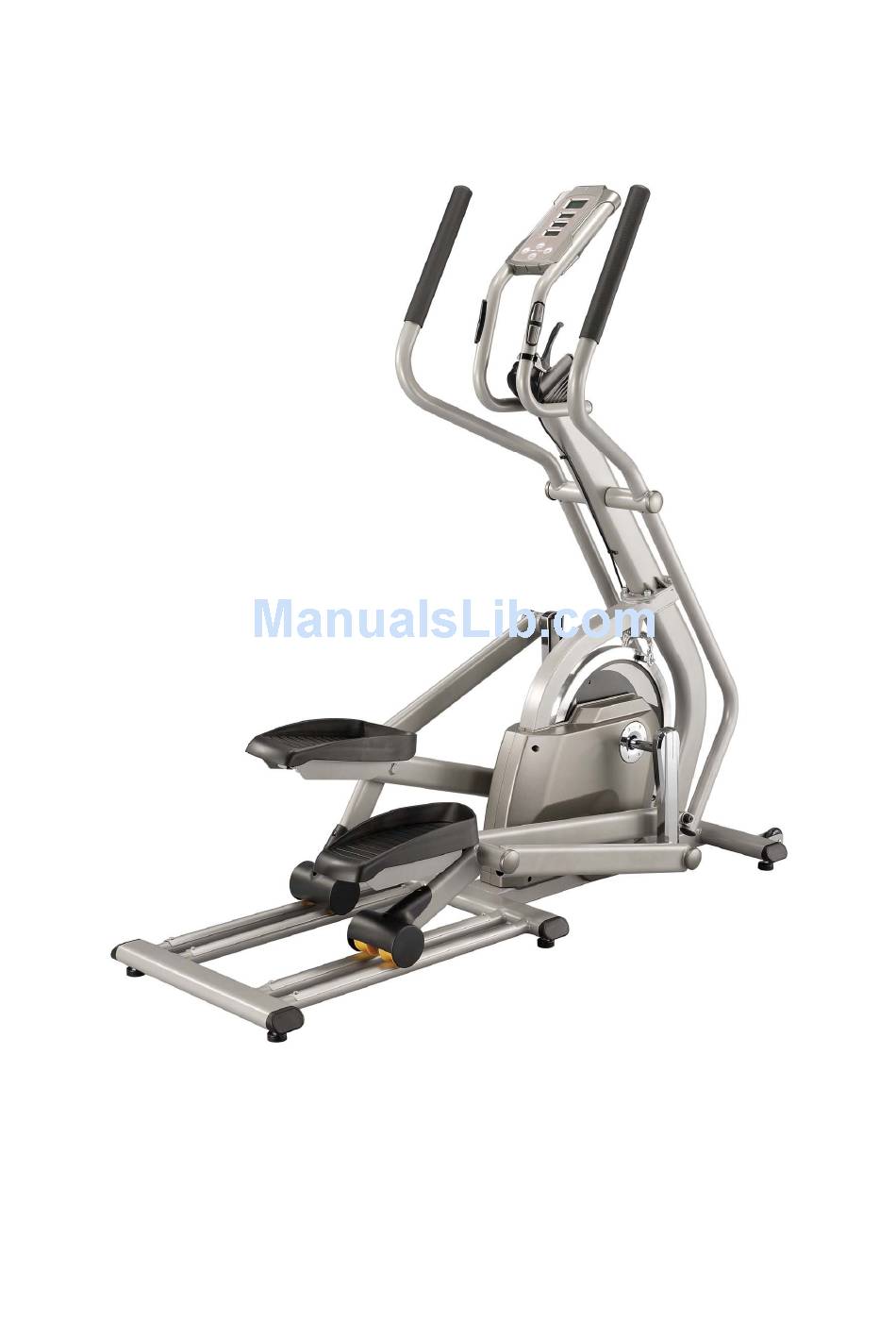

  • Page 1 SERVICE MANUAL SE500...
  • Page 2 Troubleshooting for Motor Error When “Err” signal is shown up in the message window, it means that either gear motor has lost its original reset point or the console cannot detect the feedback signal sent by the gear motor. Causes of Motor Error and dispositions Failure of the Gear Motor: The gear motor should be free from abnormal noises during operation.

  • Page 3: Troubleshooting Guide

    Troubleshooting guide MECHANICAL SYSTEM 1. Noises 1. Check if there are interactions between chain cover and the flywheel. 2. Check if there is any crack on the roller. 3. Check if the magnet system interacts with the flywheel. 2. No resistance 1.
  • Page 4 1. Noises 1. Check if there are interactions between chain cover and the flywheel. Turn the flywheel and check if there is gap between chain cover and the flywheel or if the flywheel swings or any other interactions. (If there are interactions, please refer to step 1.) Figure 1-1-1 2.
  • Page 5 (Figure 1-3-5) (Figure 1-3-6) (Figure 1-3-7) (Figure 1-3-8) (Figure 1-3-9) 2. No resistance 1. Check if gear motor runs normally. If there is any damage, replace the gear motor. (Refer to step 3 for replacing procedures.) Figure 2-1-1 2. Check if the magnet is installed properly. Please refer to checking procedure 1-3.
  • Page 6 3. Starting resistance is too high 1. Check if safety brake is released. Release the safety brake if it is not released. Figure 3-2-1 2. Check if steel cable is stuck. Replace the cable if it is stuck. Refer to step 1-3 to replace the cable. 4.

  • Page 7: Troubleshooting Procedures

    5. The flywheel does not revolve while pedaling 1. Check if the belt breaks. (Replace the belt following step 4 if it is broken.) Refer to 1-3 for checking procedure. Figure 5-1-1 Left side belt Figure 5-1-2 Right side belt Troubleshooting Procedures Step 1：...
  • Page 8 Step 2： ： ： ： Adjust the resistance to maximum value so that the magnet housing and the screw on the stopper touch each other, as shown in figure B-1 then adjust the screw, as shown in figure B-2, until the distance between the magnet and the flywheel is 2mm, as shown in figure B-3.
  • Page 9 Step 4： ： ： ： Refer to step 1 to remove left and right chain covers and check if the left and right sides belts break. If anyone does, replace it. To replace, loosen both left and right idler wheels, as shown in figure D-1.

  • Page 10: Exploded Diagram

    Customer Service EXPLODED DIAGRAM...
  • Page 11 Parts list DESCRIPTION O'TY Main Frame Console Mast Sliding Pedal Arm (R) Sliding Pedal Arm (L) Connecting Pedal Arm (R) Connecting Pedal Arm (L) Main Crank Axle Swing Arm (R) Swing Arm (L) Crank Arm Flywheel 11-1 Nylon Round Disk Ø174 Main Pulley Ø174 Drive Pulley Drive Axle...
  • Page 12 DESCRIPTION O'TY Phillips Head Screw M5 × 0.8 - 10mm Phillips Head Screw M6 × 1.0 - 10mm Split Washer M5 Split Washer M6 Split Washer M8 Split Washer M10 Nut M5 - 4t Set screw M5 - 5mm Idler Adj. Bolt M10 × 1.5 × 220L Woodruff Key ( 7 ×...
  • Page 13 DESCRIPTION O'TY Flat Washer Ø3/8" × Ø19 × 1.5T Flat Head Socket Bolt 3/8"×16UNC-2 Braking Magnet Poly-V Belt, 6PK Type PJ Belt Emergency Brake Lever Emergency Brake Assembly 91-1 Emergency Brake Pad Emergency Brake Cable 260m/m_Resistance Sensor Cable Gear Motor Speed Sensor W/Cable 850mm DC Power Cord 500mm Handpulse Wire, Coiled 500mm...
