- Page 1 HDMI Extender over Dual Cat.X with IR User Manual To avoid EMI issue, complete STP Cat6 cable is strongly recommended! rev: 131024 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-57C should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction

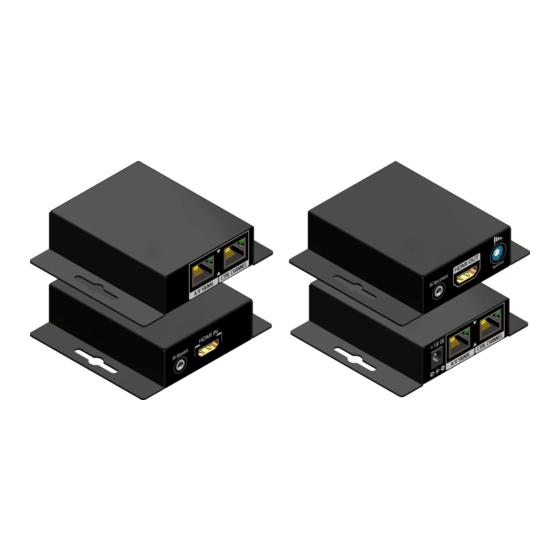

HDMI sources from the remote site instantly. The CV-57C includes two units: CV-57C-TX as the transmitting unit and CV-57C-RX as the receiving unit. The transmitting unit is used to transfer the HDMI or DVI and IR signals input and carry the signals through two RJ45 connectors over two low cost Cat-5/5e/6 cables. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-57C Technical CV-57C[Tx] CV-57C[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color... -
Page 5: Package Contents
PACKAGE CONTENTS ● 1x CV-57C [TX & RX] ● 1x IR blaster ● 1x IR receiver ● 1x DC 5V 4A wall wart ● 1x User Manual PANEL DESCRIPTIONS ► Transmitting unit CV-57C-TX Front Panel IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster... -
Page 6: Receiving Unit ► Cv-57C-Rx
Receiving unit ► CV-57C-RX Front Panel IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here. Signal Level: Adjust the 8-level signal level equalization control to the received HDMI signals. The HDMI signal level varies from 0 (strongest) to 7 (weakest) for respective transmission length from longest possible range to short distance. -
Page 7: Ir Pass-Through
IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other enf to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. - Page 8 Supported IR Data Format Data Format Suitable Not Recommended TOSHIBA MICOM CODE GRUNDIG CODE SONY 12 BIT CODE SONY 15 BIT CODE SONY 20 BIT CODE RCA CODE RCM CODE MATSUSHITA CODE ...
-
Page 9: Hardware Installation
1. Connect a video source (such as a Blu-ray Disc player) to the transmitting unit CV-57C-TX. 2. Connect the IR blaster to the transmitting unit CV-57C-TX, and make the IR blaster directly point to the IR sensor of the HDMI source device(s). -
Page 10: Notice
NOTICE 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2. -
Page 11: Rj45 / Cat5 Pin Definition
RJ45 / CAT5 PIN DEFINITION Audio/Video Port Control Channel Port... -
Page 12: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-57C features and specifications is subject to change without further notice.
