- Page 1 User Manual CV-57H HDMI Extender over Single Cat.X with Direct Plug-in Receiver To avoid EMI issue, complete STP Cat6 cable is strongly 7.1 CH 7.1 CH recommended! AUDIO AUDIO rev: 110127 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-57H should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
DVD players or PS3 transmit high quality video and audio with a greater distance at the minimal cost, when integrating several components apart. The CV-57H includes two units: transmitting (CV-57H-TX) and receiving (CV-57H-RX) units. The transmitting unit is used to capture the input HDMI/DVI signals and carry the signals through one RJ45 connector into one cost effective Cat-5/5e/6 cable. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-57H Technical CV-57H[Tx] aka CV-57G-TX CV-57H[Rx] aka CV-715s Role of usage Transmitter [TX] Receiver [RX] HDMI compliance High Speed HDMI - Deep Color & 3D support HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Transmitting unit ► CV-57H-TX aka CV-57G-TX Front Panel MODE: 0 = [Video] - supports up to HDMI 1.3 output. [Audio] - supports up to 7.1ch output 1 = [Video] - supports up to HDMI 1.3 output. [Audio] - locks to stereo audio output 2 = [Video] - locks to HDMI 1.2 output. -
Page 6: Receiving Unit
+5V DC: Connect to 5V DC power supply. RJ45-OUT: Plug in a CAT-5/5e/6 LAN cable that needs to be linked to the RJ45 connector of the receiving unit CV-57H-RX. Receiving unit ► CV-57H-RX aka CV-715s HDMI HDMI output RJ45: HDMI Signal input... -
Page 7: Installation

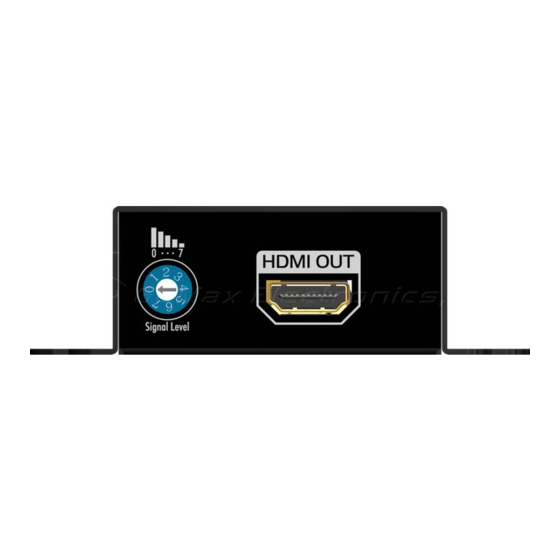

4. Turn the Mode of CV-57H-TX clockwise from 7 to 0 (for surround sound) or 1 (for stereo). The most important thing is don't let the rotary arrow pass through 6 which will erase the EDID just learned and restore to default EDID. -
Page 8: Connection Diagram
CONNECTION DIAGRAM... -
Page 9: Notice
NOTICE 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2. -
Page 10: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-57H features and specifications is subject to change without further notice.
