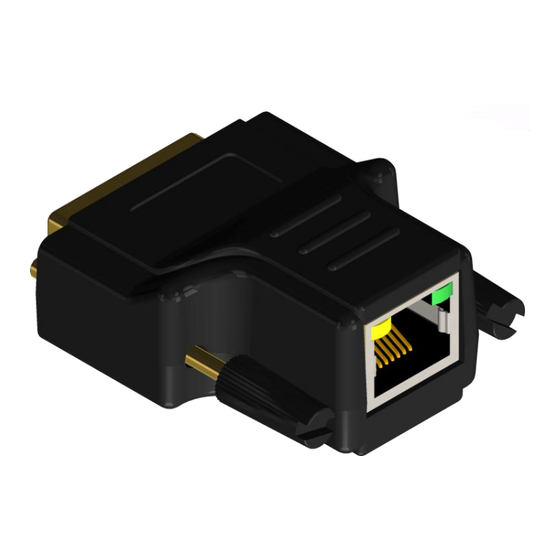

DVI Passive Extender
over Single Cat.X
User Manual
rev: 111208
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-117 and is the answer not in the manual?

Questions and answers

Related Manuals for GoMax Electronics CV-117

Summary of Contents for GoMax Electronics CV-117

  • Page 1 DVI Passive Extender over Single Cat.X User Manual rev: 111208 Made in Taiwan...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the CV-117 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    PC DVI transmission distance up to 30m (100ft) with resolution 1024x768 @60Hz. With CV-117, users can transmit high quality digital video of PC applications through one cost effective CAT-5/5e LAN cable to the remote monitor or projector, instead of using short and expensive DVI cables.

  • Page 4: Specifications

    SPECIFICATIONS Model Name CV-117 Technical Role of usage Transmitter [TX] Receiver [RX] DVI compliance DVI 1.0 HDCP compliance Single-link 165MHz [4.95Gbps] Video bandwidth Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz] 1920x1200@60Hz – 15m [50ft] Video support 1024x768@60Hz – 25m [80ft]...

  • Page 5: Hardware Installation

    HARDWARE INSTALLATION 1. Connect one of the CV-117 to your DVI source. 2. Connect the other CV-117 to your DVI display. 3. Make sure the CAT-5/5e/6 cable is tightly connected between the DVI source and the display with the CV-117.

  • Page 6: Dvi Over Single Cat5 Series Lineup

    DVI OVER SINGLE CAT5 SERIES LINEUP CV-15 CV-17 CV-117 CV-117E WP-117A Output to display HDMI Transmission over CAT5 25m [80ft] 60m [200ft] 25m [80ft] 25m [80ft] 30m [100ft] at 1024x768@60Hz Transmission over CAT5 15m [50ft] 40m [130ft] 15m [50ft] 15m [50ft]...

  • Page 7: Notice

    NOTICE 1. The CV-117 may not be compatible with the DVI sources and displays that feature resolutions not in the aspect ratio of 4:3, 16:9 and 16:10. 2. All DVI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C.

  • Page 8: Warranty

    SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-117 features and specifications is subject to change without further notice.
