GoMax Electronics CV-54B User Manual

C V -
C V -
HDMI over Coaxial Extender with
Bi-directional IR Pass-through
User Manual
5 4 B
5 4 B
rev: 141113
Made in Taiwan
Safety and Notice
The CV-54B HDMI over Coaxial Extender with Bi-directional IR Pass-through
for conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipments, the CV-54B should be used with care. Please read and
follow the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.

TABLE OF CONTENTS

INTRODUCTION................................................................................................................. 1
FEATURES ......................................................................................................................... 1
PACKAGE CONTENTS ...................................................................................................... 1
SPECIFICATIONS .............................................................................................................. 2
PANEL DESCRIPTIONS ..................................................................................................... 3
Transmitting unit ► CV-54B-TX ............................................................................... 3

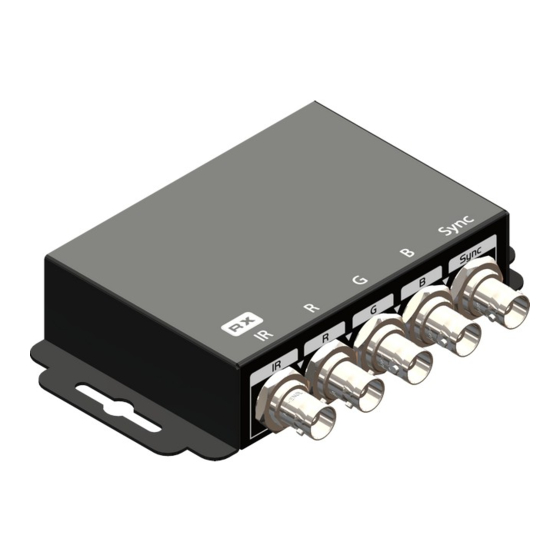

Receiving unit ► CV-54B-RX .................................................................................. 4
IR PASS-THROUGH ........................................................................................................... 5
HDMI PIN DEFINITION ....................................................................................................... 6
COAXIAL CABLE ................................................................................................................ 6
NOTICE .............................................................................................................................. 7
CONNECTION DIAGRAM .................................................................................................. 7
WARRANTY ....................................................................................................................... 8
has been tested
