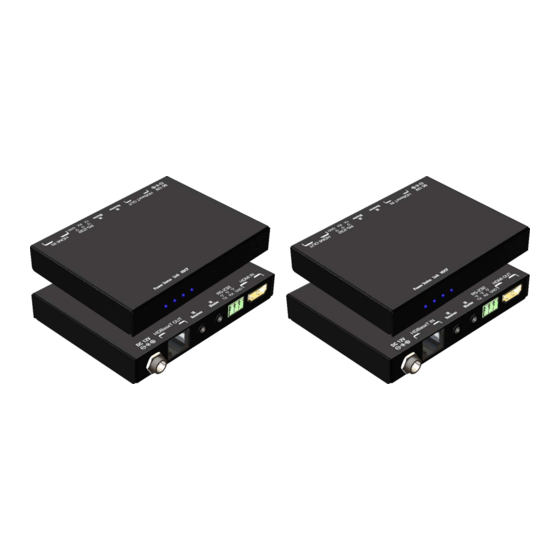

- Page 1 HDMI Extender over Single Cat.X with HDBaseT-Lite, RS-232, Bi-directional IR & PoC User Manual rev: 150114 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-57VA should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
60m (198ft) in HDTV 1080p with 48-bit color depth. CV-57VA also supports the most advanced 3D video format complaint with HDMI specification and therefore guarantees the highest 3D video compatibility on the market. With only one cost effective Cat.5/5e/6 cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3,... -
Page 4: Specifications
SPECIFICATIONS Model Name CV-57VA Technical CV-57VA[Tx] CV-57VA[Rx] Role of usage Transmitter [TX] Receiver [RX] HDMI compliance HDMI Deep Color, full 3D & 4K2K@30 HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60... -
Page 5: Package Contents
PACKAGE CONTENTS ● 1x CV-57VA [TX & RX] ● 1x IR blaster ● 1x IR receiver ● 1x DC 12V 1.5A in-line with C7 power cord ● 1x User Manual CONNECTION DIAGRAM... -
Page 6: Panel Descriptions
2. Latch-locking power jack: Connect to 12V DC power supply 3. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit CV-57VA-RX 4. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 5. -
Page 7: Receiving Unit ► Cv-57Va-Rx
9. Latch-locking power jack: Connect to 12V DC power supply 10. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit CV-57VA-TX 11. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver 12. -
Page 8: Ir Pass-Through
IR PASS-THROUGH IR Extenders IR Blaster IR Receiver IR Sockets IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other enf to control the devices corresponding to the IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. -
Page 9: Hdmi Pin Definition
4. Connect a Cat-5/5e/6 cable between the transmitting and receiving units. 5. Make sure this Cat-5/5e/6 cable is tightly connected and not loose. 6. Plug in 12V DC power supply unit to the power jack of the receiving unit CV-57VA-RX or the transmitting unit CV-57VA-TX. -
Page 10: Notice
NOTICE 1. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C & VG-870B. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets. -
Page 11: Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-57VA features and specifications is subject to change without further notice.
