- Page 1 12G/6G/3G/HD/SD-SDI over Single mode SFP-type Fiber Optic Extender Immune to Pathological User Manual rev: 170218 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the EX-36K should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The EX-36K is an ideal and economic solution designed for transmission of multi-rate SDI video, with embedded audio and metadata over a single-mode fiber optic cable. The transmitter module receives one 12G/6G/3G/HD/SDI electrical input, perfectly converts SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 2082 or DVB-ASI electrical SDI signal to single-mode optic SDI signals. -
Page 4: Package Contents
Immune to RP-198 ● 3G/HD/SD Detection ● Re-clocking ● Cable EQ ● Jitter (<0.2 UI) ● Bandwidth(2.97Gbps) Fiber Type Optics type Transmission ~10km PACKAGE CONTENTS ● 1x EX-36K [TX & RX] ● 2x 5V power adapter ● 1x User Manual... -
Page 5: Specifications
SPECIFICATIONS Model Name EX-36K Technical EX-36K-TX EX-36K-RX Role of usage Transmitter [TX] Receiver [RX] SDI standards SD-SDI/ HD-SDI/ 3G-SDI/ 6G-SDI/12G-SDI Auto HD/SD-SDI detection SMPTE 259M (270Mbps / 360Mpbs), DVB ASI (270Mbps) SMPTE 292M / HDTV (1.485Gbps and 1.485/1.001Gbps) SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps) Supported protocols SMPTE 2082-1 / HDTV (5.94Gbps and 5.94/1.001Gbps) -
Page 6: Connection Diagram
CONNECTION DIAGRAM... -
Page 7: Panel Description

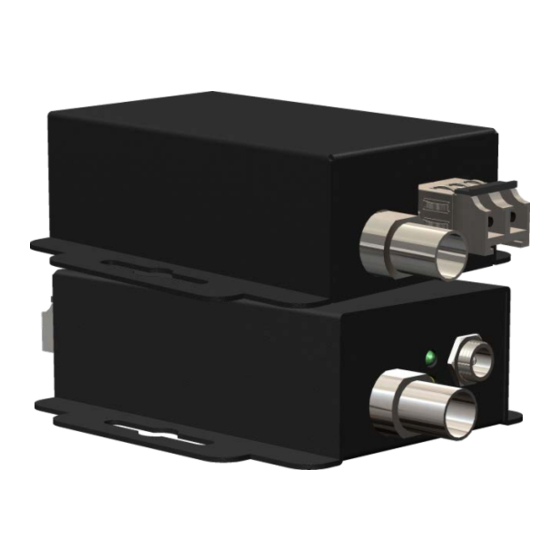

Transmitting unit EX-36K-TX Front Panel Rear Panel 12G/6G/3G/HD/SD-SDI input Power indicator Link indicator 5V DC power jack 12G/6G/3G/HD/SD-SDI loopout Optical output Receiving unit ► EX-36K-RX Front Panel Rear Panel 12G/6G/3G/HD/SD-SDI output Power indicator Link indicator 5V DC power jack Optical input... -
Page 8: Limited Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the EX-36K features and specifications is subject to change without further notice.
