Motech DS3640 User Manual

Motech DS3640 User Manual

Programmable dc power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

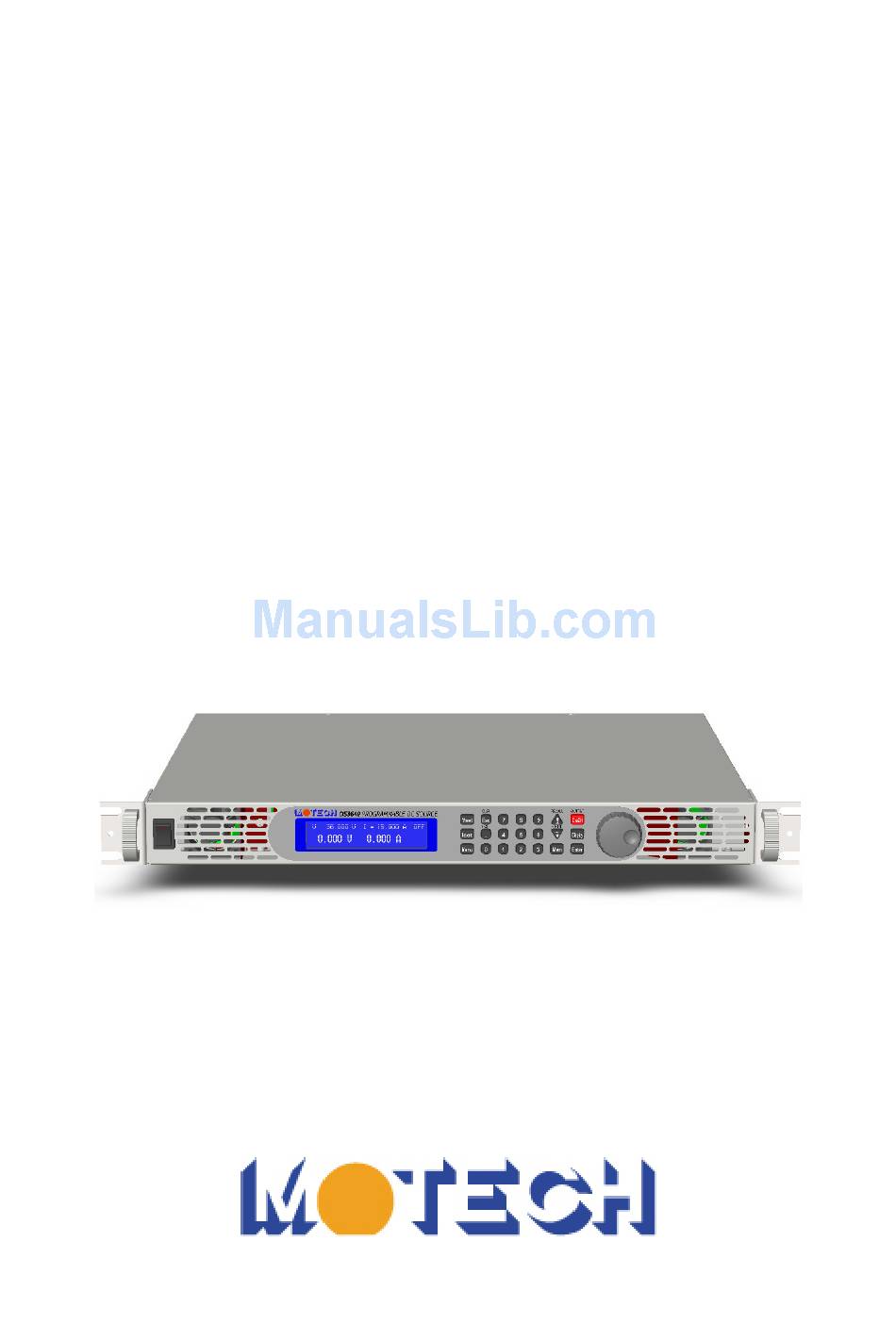

DS3640/DS6024/DS8018/DS10014
Programmable DC Power Supply
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS3640 and is the answer not in the manual?

Questions and answers

Related Manuals for Motech DS3640

Summary of Contents for Motech DS3640

  • Page 1 DS3640/DS6024/DS8018/DS10014 Programmable DC Power Supply User’s Manual...

  • Page 2: Legal Notices

    Legal Notices The information in this document is subject to change without notice. MOTECH makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. MOTECH shall not be held liable...
  • Page 3 MOTECH does not take a repair-free responsibility to any one of the following situations; and we will charge to the respective repairs in accordance with the maintaining situation: (1) The product is not sold by MOTECH’s formally authorized agency...
  • Page 4 For any double or unclear thing in operation, please contact MOTECH or our agent’s professional service personnel. While removing the outer cover to repair by the professional person, proper protection is still necessary to prevent people from getting an electric shock.
  • Page 5 electrical equipment it collocates in operation to ensure personnel and equipment' s safety. Suitable user of this equipment is one who can hold basic electrical idea and comprehend this User Manual in details. The power cable attached to this product meets with the related safety regulations and can secure operating safety under correct use.
  • Page 6 Store/Move/Maintain/Handle Storage this When device is not in use, properly package it and store it on environment suitable for storage (if in a good preserving environment, the packaging process can be waived). Freight While moving this product, move it by using the original wrappings to pack this product in advance.

  • Page 7: Table Of Contents

    Storage ..................10 Power-line voltage ................10 Fuses ....................10 Preheating Time ................11 End test ..................11 Cautions in Operation ..............11 Panel Demonstration................12 DS3640/DS6024/DS8018/DS10014 Panel ........12 4.1.1 Front Panel ................12 4.1.2 Rear Panel ................30 Operation Interpretation ..............34 Voltage Setting................34 Current Setting ................34 Over-voltage Protection OVP............34...
  • Page 8 Error Input Message ..............57 Remote Interface communication protocol ........58 Prefaces ..................58 Parameters Definition ..............58 The Error/Event List ..............59 Compatible Protocol of MOTECH LPS & PPS Product Family..60 SCPI Conformable Information.............63 7.5.1 Common SCPI commands ............63 7.5.2 SCPI Command subsystem ............64...
  • Page 9 State Bit Definition ...............75 LAN Communction ..............75 7.7.1 Using Web Server ..............76 7.7.1.1 Main Page (Home) ..............76 7.7.1.2 Setting Page (Configuration)............77 7.7.1.3 Status of Page (Status) .............77 7.7.1.4 Web Control ................78 7.7.2 Using Telnet ................78 7.7.3 Using Sockets ................79 Assemble Accessories .................80 Assemble Rack Mount Brackets............80 Assembly of Output Protective Shield (DS6024/DS8018/DS10014) .....................80...

  • Page 10: Preface

    5760 watts. When four (4) DS10014 are cascade connected, the maximum output voltage can reach up to 400V. When four (4) DS3640 are put in parallel connections, the output current can reach up to 160A. The feature of series/parallel connections makes DS3640/DS6024/DS8018/DS10014 more convenient and flexible for varies applications.

  • Page 11: Features

    Features 1) Output Voltage & Current Voltage output range: 0 ~ 36V (DS3640) / 0 ~ 60V (DS6024) 0 ~ 80V (DS8018) / 0 ~ 100V (DS10014) Current output range: 0 ~ 40A (DS3640) / 0 ~ 24A (DS6024) 0 ~ 18A (DS8018) / 0 ~ 14.4A (DS10014)
  • Page 12 The series-parallel connection mode of two or more units (maximum to 4 units) largely increases product’s power-supplying capability. Under the parallel connection mode of four DS3640 the maximum output is 36V/160A; and under the cascaded connection mode of four DS10014, the maximum output is 400V/14.4A.

  • Page 13: Specification

    Specification DS3640/DS6024 Specifications Output Rate DS3640 DS6024 Output Voltage 0~36V 0~60V Output Current 0~40A 0~24A Output Power 1440W 1440W Line Regulation Voltage Current Load Regulation Voltage Current Ripple and Noise (20Hz-20MHz) 5mVrms/ 60mVpp 6mVrms/ 70mVpp Normal Mode Voltage (Load 0.5%) (Load 0.5%)
  • Page 14 Command Response Time 50mS 50mS 0.99 0.99 Power Factor (Full load) (Full load) Remote Sense Compensation 15mS 20mS Rising Time at Full Load 15mS 20mS Rising Time at No Load Falling Time at Full Load 15mS 20mS Falling Time at No Load 1000mS 1000mS Standard Interface...
  • Page 15 DS8018/DS10014 Specifications Output Rate DS8018 DS10014 0 80V 0 100V Output Voltage 0 18A 0 14.4A Output Current Output Power 1440W 1440W Line Regulation 8mV ! 10mV ! Voltage 4mA ! 4mA ! Current Load Regulation 10mV ! 12mV ! Voltage Current 6.5mA !
  • Page 16 70 ) Temperature Ratings(S) Dimensions(W*H*D) 420*43.6*432 mm Weight Features of DS3640/DS6024/DS8018/DS10014: Graphical LCD easy to read Compact, high efficiency and high power density 40A output connector for fast connecting Numerical & function keys for friendly setting Store and recall settings (up to 10 sets)
  • Page 17 Programmable (SCPI command only), with up to 10 sets of program and maximum 150 steps in total Extra 5V/1A output, suitable for fixture circuit without the need of additional power Precise voltage and current measurement OVP, OCP and key-lock function Series &...

  • Page 18: Cautions Before Using

    Cautions Before Using Check and Confirm Accessories before Using As to safeguard your rights, after receiving this product, please confirm the items received in accordance with the ones listed below: The appearance of the products is without scratch or other damages. Standard parts as shown in Attachment 1 (Parts List) of Chapter 9.

  • Page 19: Storage

    Storage The storage temperature range of this product is within -10ºC ~ 70ºC and R.H. should be within 80% without moisture condensing. If not operating this product for a long time interval, pack it with original packaging or similar one and put it in a dry place without hit by direct sunlight. Power-line voltage Rated AC power source connected to this product is within 100V~240V (refer to the Product Specification for details).

  • Page 20: Preheating Time

    A. While under cascaded connection mode, each DS3640/DS6024/DS8018/ DS10014 shall be in power-on state and output shall be "ON". In case there is any one DS3640/DS6024/DS8018/DS10014 is in power-off state or output is "OFF", the associated output current will flow over the output bypass diode of the power-off unit and burn it out.

  • Page 21: Panel Demonstration

    Panel Demonstration DS3640/DS6024/DS8018/DS10014 Panel 3 4 5 14 13 4.1.1 Front Panel Power switch: Please consult the “Cautions before use” before turnning on power switch. Display: 192*32 Graphic LCD Module Current setting Press to set up the current limit. Voltage setting Press to set up the output voltage.
  • Page 22 Numerical keys They are used to fast input the voltage or current value or choose the setting option in Menu page. Down/Right/Store This key is a compound key for the following three functions: Down: In “Menu Setting” status, use this “Down” key to move cursor to the next item.
  • Page 23 (11) Output Control the On/Off of the output power. (12) The knob controller: Use this tuner to adjust voltage or current (press first to let cursor display first). It is an option item in Menu Setting. (13) Enter This key is the confirming key of current or voltage setting value; or press under output status to dynamically adjust voltage (at CV mode) or current (at CC mode).
  • Page 24 *USB interface is a virtual COM port, baud rate is 57600bps Data bit Parity check :none Stop bit Please download USB Driver on http://www.motech.com.tw. *If entering the Remote mode, screen will present RMT symbol as shown in the following picture.
  • Page 25 Set up GPIB ADDRESS (1~31) GPIB ADDRESS: EXTERN CONTROL: Set up the external control to voltage control (VOLT 0~10V or 0~5V), resistance control (RES 0~5K) or off (OFF). STATIC :users input IP address IP CONFIG: DHCP : IP address is assigned by the server. IP ADDRESS: If IP CONFIG is set to STATIC, users shall enter the IP addresses here.
  • Page 26 When OFF is selected, DS3640/DS6024/DS8018/DS10014 will do nothing after power on. If LAST is selected, then after power on, DS3640/DS6024/ DS8018/DS10014 will be set to the last output state when power off. If USER (user defined) is selected, it will jump to next line to make setting of output voltage, current, and output state.
  • Page 27 OUTPUT SETTING: Press in the first page of Menu Setting to enter OUTPUT SETTING page. . 1 2 F LL VOLT LIMIT: Limit of the output voltage setting CURR LIMIT: Limit of the output current setting VOLT SLEW RATE: Voltage ascending/descending slope (3640:0.01 ~ 2.4V/mS) (6024:0.01 ~ 3V/mS) (8018:0.01 ~ 3.2V/mS)
  • Page 28 (6024:0.01 ~ 1.2A/mS) (8018:0.01 ~ 0.72A/mS) (10014:0.01 ~ 0.48A/mS) CONNECTOR DROP Turn on/off the connector drop calibration function EXT FULL VOLT: External tuning setting with full-scale voltage (10V / 5V) PROTECTION SETTING (PROTECTION) Press key in the first page of Menu Setting to enter PROTECTION page.
  • Page 29 SERIES/PARALLEL SETTING Press in the second page of Menu Setting to enter SERIES/PARALLEL page. SELECT MODE: Choose the Series/Parallel mode. 5.8:Series/Parallel MASTER/SLAVE: Refer Setting detailed setting procedure of MASTER/SLAVE mode. INFORMATION Press in the second page of Menu Setting to enter INFORMATION page.
  • Page 30 PROGRAM MODE page. Before running the program, user needs to input the programs through the USB or GPIB interface into DS3640/DS6024/ DS8018/DS10014. Users may save 10 programs (program number 1 through 10) in the hardware and recall here in this...
  • Page 31 TIMER: Turn on/off TIMER function. TIME: Set up OUTPUT ON time (Max:999Hr 59Min 59Sec) 8. CALIBRATION Press in the third page of Menu Setting to enter CALIBRATION page. Users shall enter the password and then access to the calibration procedures. 8.1 Equipment Requirments 1.
  • Page 32 8.2 Calibration Items and Procedures 8.2.1 VOLTAGE CALIBRATION A. Connect DS3640 output terminal to DVM (as shown in Figure 1). Then, select DVM at DC volatage measurement and turn on DS3640. Once entering main page, press MENU and select 8.Calibration and key in password “13579”...
  • Page 33 B. Press 1 to access Voltage calibration procedure C. According to voltage value displayed on DVM, please fill in with the corresponding function and press ENTER. If any DVM read-back value at each voltage function does not fit with the following table, please inspect the hardware.
  • Page 34 DS 8018 Function Setting Range of Transformation Value 3.6 ~ 4.4 V MIDL 23.5 ~ 28.5 V MIDH 48 ~ 58 V 69 ~ 83 V DS 10014 Function Setting Range of Transformation Value 4.5 ~ 5.5 V MIDL 29.7 ~ 36.3 V MIDH 59 ~ 72 V 85 ~ 104 V...
  • Page 35 OVP circuit. 8.2.3 CURRENT CALIBRATION A. Connect two output terminals of DS3640 to two ends of current shunt, and connect DVM to the sensor of current shunt to measure DC voltage as shown Figure 2. Press 3 to enter current calibration...
  • Page 36 Figure 2 B. First, input transformation parameter (resistance of current shunt, m ) of current measurement fixture. According to voltage value shown on DVM, fill in with the corresponding function and press ENTER key.
  • Page 37 = L 1 . 8 9 58 246 . 7 5 9 C. Please inspect the hardware, if the current value is inconsistent with the value in the tolerance error table after the value of calibration function is transformed to actual current value. DS 3640 Setting Range of Transformation Value...
  • Page 38 DS 10014 Setting Range of Transformation Value Function 0.03625A 0 ~ 0.1 A MIDL 4.7A 4.2 ~ 5.2 A MIDH 9.5A 8.55 ~ 10.45 A 13.7A 12.33 ~ 15.07 A D. The calbriation value will be stored in FLASH after pressing ENTER at Hi function.

  • Page 39: Rear Panel

    4.1.2 Rear Panel 25 24 23 Rear Panel of DS3640 25 24 Raer Panel of DS6024/DS8018/DS10014 (16) Cooling fans: Automatically adjust fan’s rpm according to the internal tempeture. This is a wisdom design. (17) Power output terminal: Please pay attention to the correct polarities when doing the connections.
  • Page 40 When Local sense is selected, the wire connection shall be as follows (shown in the figure above):positive sense (+S) is connected to the positive lead (+) and negative sense (-S) is connected to the negative lead (-), whereas the positive lead (+) of the DC output is connected to the positive end (+) of the device and the negative lead (-) of the DC output is connected to the negative end (-) of the device under test.
  • Page 41 0 ~ 5K ohm which is corresponding to the output voltage of 0 ~ 36V for DS3640 and 0 ~ 60V for DS6024 and 0 ~ 80V for DS8018 and 0 ~ 100V for DS10014 and corresponding to the output current of 0 ~ 40A for DS3640 and 0 ~ 24A for DS6024 and 0 ~ 18A for DS8018 and 0 ~ 14.4A for DS10014.
  • Page 42 (28) Protection shield of the output leads (DS6024/DS8018/DS10014): WARNING: This PRODUCT is designed meeting safety code and has passed the related qualification test. To assure user the consistency of safety, user should, after equipping DC output cable according to field condition, follow the Manual’s suggestion to install the fixing sheets.

  • Page 43: Operation Interpretation

    Operation Interpretation Voltage Setting Press and set the output voltage by press numerical keys directly, and then press to confirm it and complete the setting. = 15 Current Setting Press and set the output current by press numerical keys directly and then press to confirm it and complete the setting.

  • Page 44: Voltage Output

    to confirm it. Now the cursor will move to the value setting for the OCP on the right hand side. Enter the OCP value by press the numerical keys. 4 1 4 Voltage Output After the voltage, current and protection point settings, press output voltage.

  • Page 45: Make Series (Cascade)/Parallel Setting

    After wiring is complete, select one DS3640/DS6024/DS8018/DS10014 as the Master and the other three are Slave A, B and C. After the DS3640/DS6024/ DS8018/DS10014 is set to the Master, it will start searching for all Slaves that...
  • Page 46 Slaves before the Master is set. To set a DS3640/DS6024/DS8018/DS10014 to the slave mode, press in the main page to enter the series/parallel setting option. , and And then select the parallel mode by turning the knob (SCPI command is “...

  • Page 47: Cascade Setting

    OFF for series/parallel selection to leave the series or parallel operation mode and back to the local operation mode that the DS3640/DS6024/DS8018/DS10014 can be controlled by press the keys again. It shall not change the operation mode while DS3640/DS6024/DS8018/DS10014 is in output state or it will cause the Master’s communication failure and...
  • Page 48 After wiring is complete, select one DS3640/DS6024/DS8018/DS10014 as the Master and the other three as the Slave A, B, and C. After the DS3640/DS6024/ DS8018/DS10014 is set to the Master, it will start searching for all Slaves that are connected to the Master. Therefore, in order to reach the control status, user must set up the Slaves before the Master is set.
  • Page 49 OFF for series/parallel selection to leave the series or parallel operation mode and back to the local operation mode that the DS3640/DS6024/DS8018/DS10014 can be controlled by press the keys again. It shall not change the operation mode while DS3640/DS6024/DS8018/DS10014...

  • Page 50: 5.8.3 Error Message Of Series/Parallel Connection

    If more than one Master being set in the series/parallel operation mode, the following message will be displayed. LL L If one of the DS3640/DS6024/DS8018/DS10014 is set to different series/ parallel operation mode, screen will appear the following message. After finishing setting procedure, if the Master cannot have a communication with one of the three (3) Slaves, Master will present the following error message (Slave A in this example).

  • Page 51: External Tuning Setting

    0 ~ 5 Kohm to control the output voltage (0 ~ 36V for DS3640 and 0 ~ 60V for DS6024 and 0 ~ 80V for DS8018 and 0 ~ 100V for DS10014) and the output current (0 ~ 40A for DS3640 and 0 ~ 24A for DS6024 and 0 ~ 18A for DS8018 and 0 ~ 14.4A for DS10014).

  • Page 52: Timer Of Current Flow

    Since the external control circuit uses a 12bit D/A converter for 0 ~ 36V for DS3640 (or 0 ~ 60V for DS6024 or 0 ~ 80V for DS8018 or 0 ~ 100V for DS10014) output voltage and 0 ~ 40A for DS3640 (or 0 ~ 24A for DS6024 or 0 ~ 18A for DS8018 or 0 ~ 14.4A for DS10014) output...
  • Page 53 Press , and then in the main page to enter to the current flow counter page. = 1 . = 1 . After setting up output voltage/current and press to output, system will start counting the timer till the breaker or fuse is open. The resolution of the timer is 100us (0.1 ms) and the maximum counting period is one hour.

  • Page 54: Programmable Capability (Scpi Command Only)

    5.11 Programmable Capability (SCPI Command Only) DS3640/DS6024/DS8018/DS10014 provides the capability for users to program it. There are memory spaces to store 10 programs that can have 150 steps in total for setting purpose. Each program does not restrict the step quantity, however, the sum of 10 programs are restricted to 150 steps.
  • Page 55 Example 1: To output the wave form shown above, users may edit the program as the following orders: PROG 1 Choose program number PROG:CLE Clear program 1 data PROG:REP 0 No repeat (repeat one time for “ 1” ) PROG:TOTA 8 Set program 1 to have 8 steps in total PROG:STEP 1 Following 3 settings are for step 1...
  • Page 56 PROG:STEP:CURR 1 PROG:STEP:VOLT 20 PROG:STEP:ONT 0.1 PROG:STEP 5 Choose step 5 PROG:STEP:CURR 1 PROG:STEP:VOLT 15 PROG:STEP:ONT 0.1 PROG:STEP 6 Choose step 6 PROG:STEP:CURR 1 PROG:STEP:VOLT 10 PROG:STEP:ONT 0.1 PROG:STEP 7 Choose step 7 PROG:STEP:CURR 1 PROG:STEP:VOLT 5 PROG:STEP:ONT 0.1 PROG:STEP 8 Choose step 8 PROG:STEP:CURR 1 PROG:STEP:VOLT 0...
  • Page 57 Example 2: To output the wave form shown above, the following example program can be used. PROG 2 Choose program number PROG:CLE Clear program 2 data PROG:REP 0 No repeat after running this program PROG:TOTA 8 Set program 2 to have 8 steps in total PROG:STEP 1 Settings for step 1 PROG:STEP:CURR 2...
  • Page 58 PROG:STEP:VOLT 10 PROG:STEP:ONT 0.5 PROG:STEP 5 Choose step 5 PROG:STEP:CURR 1 PROG:STEP:VOLT 20 PROG:STEP:ONT 0.5 PROG:STEP 6 Choose step 6 PROG:STEP:CURR 2 PROG:STEP:VOLT 5 PROG:STEP:ONT 0.5 PROG:STEP 7 Choose step 7 PROG:STEP:CURR 2 PROG:STEP:VOLT 20 PROG:STEP:ONT 0.5 PROG:STEP 8 Choose step 8 PROG:STEP:CURR 2 PROG:STEP:VOLT 0 PROG:STEP:ONT 0.5...
  • Page 59 Example 3: If it needs to execute Program 2 right after Program 1 is executed then program 1 shall be modified to have NEXT 2 command. The following steps can be taken for the modification and execute the programs. PROG 1 Select program 1 PROG:NEXT 2 Change the NEXT command from...

  • Page 60: Series Connection Function (Rs485)

    5.12 Series Connection Function (RS485) DS3640/DS6024/DS8018/DS10014 can use RS485 to provide multi-units series connection function for up to 31 units (If more than 10 units, please add the resistance 120 et CHAIN ON/OFF as ON (Series/Parallel connection will be cancelled) and set each unit with the distinct Address (1 ~ 31).
  • Page 61 SYSTEM CONTROL COMMAND Command Description ================================================== CADR followed by address, which can be 1 to 31 and is used to access the power supply CCLS Clear status CRST Reset command. Brings the power supply to a known state CIDN? Returns the power supply model identification CREV? Returns the firmware version CSN?
  • Page 62 Sets the OPP on/off ================================================== EXAMPLES Q1. How to read back ID for Address 5 on the system? CADR 5 CIDN? Motech inc. DS 3640,A1234567,1.13,0 Q2. How to set up Voltage for Address 7 on the system? CADR 7 CPV 20...

  • Page 63: 5.12.2 Error Response List

    Q3. How to set up Output for Address 7 on the system? CADR 3 COUT 1 Q4. How to read back Voltage value for Address 1 on the system? CADR 1 CMV? 10.001 Q5. How to set up Current for all the systems? GPC 5 No response Q6.

  • Page 64: Protections And Error Messages

    Protections and Error Messages Over-voltage Protection (OVP) When the OVP is activated and voltage measured is over the setting point of protected voltage, system will enter the “ Over Voltage Protect” mode that will shut off the output and show OVP on the display. Press to reset the protection mode and deactivate buzzer.

  • Page 65: Constant Voltage Protection (Cv To Cc)

    Constant Voltage Protection (CV TO CC) When this function is activated DS3640/DS6024/DS8018/DS10014 will stay in CV mode. If load changes and forces the system turning from CV to CC (constant current) mode, system will enter the “ CV TO CC Protect” that will shut off the output and display the CVC message on the screen.

  • Page 66: Low Voltage Protection (Acd)

    Low Voltage Protection (ACD) When the machine has detected abnormally low AC power input, system will enter the “ AC Detect Low Protect” mode that will shut off output and display the error message shown in the following figure. Press to reset the protection and deactivate buzzer.

  • Page 67: Remote Interface Communication Protocol

    Note: All commands shall be ended with the <Rtn> and <NL>. And there shall be a space between the command and the parameter. For example, to set the GPIB address of 10 to a DS3640/DS6024/DS8018/DS10014. The command line is as follows: ADDR 10<Rtn><NL >...

  • Page 68: The Error/Event List

    The Error/Event List SCPI interface can offer an error/event list that contains up to 10 errors/events. We can read the errors/events through the “ error?” command in a first-in first-out manner. Once an error/event is read, the read process will clean it from the memory.

  • Page 69: Compatible Protocol Of Motech Lps & Pps Product Family

    Compatible Protocol of MOTECH LPS & PPS Product Family Command Description ADDRess set the address of the machine ADDRess? return the address of the machine BEEP set beep on(1) or off(0) clear protect status CURRent set current CURRent? return current setting...
  • Page 70 Examples: Q 1:How to set GPIB address? ADDR 10 ==>address is 10 Q 2:How to read back GPIB address? ADDR? ==>return GPIB address ADDRESS? ==>return GPIB address Q 3:How to set up buzzer? BEEP 1 ==>trigger beep to on BEEP off ==>trigger beep to off Q 4:How to clear the protecting state? ==>clear protect status...
  • Page 71 Q 11:How to read the current outputting value? IOUT? ==>return current output Q 12:How to lock buttons and the knob controller? LOCK 1 ==>lock the keypad and knob LOCK ON ==>lock the keypad and knob Q 13:How to read the product model number? MODEL? ==>return machine model name Q 14:How to set up OVP function?

  • Page 72: Scpi Conformable Information

    SCPI Conformable Information SCPI is entirely compatible with all IEEE-488.2 and SCPI commands (1995). Commands are included in SCPI commands (in Vol. 2, 1995). 7.5.1 Common SCPI commands Command Explanation *CLS Clear status (include error code) *IDN? Response:<Manufacturer>, <model>, <serial number>, <firmware type, &...

  • Page 73: Scpi Command Subsystem

    7.5.2 SCPI Command subsystem ABORt Abort the Output Action FETCh Fetch Subsystem :CURRent? Return the fetched output current :VOLTage? Return the fetched output voltage MEASure Measure subsystem :CURRent? Return the measured output current :VOLTage? Return the measured output voltage MEMory Memory Subsystem <NR1 | ? >...
  • Page 74 :CLEar clear program n parameters :ALL clear all program parameters :NEXT <NR1 | ? > ser or return next program number (1 ~ 10 , 0 for end) :REPeat <NR1 | ? > set or return repeat times (max. 50000) :RUN<Boolean | ? >...
  • Page 75 set or return parallel/series mode :TYPE <MASTER/0,SLAVEA/1,SLAVEB/2,SLAVEC/3|?> set or return master/slave setting [SOURce] Source Subsystem :CURRent <NRf | ? > set or return current level:0~40/0~24A :PROTection <Boolean | ? > set or return over-current state :LEVel <NRf | ? > set or return over-current level :VOLTage <NRf | ? >...
  • Page 76 :LCD :BL <Boolean | ? > set or return LCD backlight state :POWer :CURRent <NRf | ? > set or return user define current level :STATe <Boolean | ? > set or return user define output state :TYPE <OFF/0,LAST/1,USER/2 | ? > set or return power up mode :VOLTage <NRf | ? >...
  • Page 77 Examples: Q 28:How to cancel all actions? ABOR ABORT Q 29:How to fetch current value? FETC:CURR? FETCH:CURRENT? Q 30:How to fetch voltage value? FETC:VOLT? FETCH:VOLTAGE? Q 31:How to measure current? MEAS:CURR? MEASURE:CURRENT? Q 32:How to measure voltage? MEAS:VOLT? MEASURE:VOLTAGE? Q 33:How to set up and read back the specific memory set? MEM 1 MEMORY 3 MEM?
  • Page 78 MEMORY:ISET? Q 36:How to save data to memory set? MEM:SAVE MEMORY:SAVE Q 37:How to set up and cancel output? OUT ON OUTPUT 0 Q 38:How to set up and read back the voltage limit? OUT:LIM:VOLT 30 OUT:LIM:VOLT? OUTPUT:LIMIT:VOLTAGE 35 OUTPUT:LIMIT:VOLTAGE? Q 39:How to set up and read back the current limit? OUT:LIM:CURR 30 OUT:LIM:CURR?
  • Page 79 PROTECTION? Q 44:How to set up and read back the CC to CV protection state? PROT:CCCV ON PROT:CCCV? PROTECTION:CCCV 0 PROTECTION:CCCV? Q 45:How to set up and read back the CV to CC protection state? PROT:CVCC ON PROT:CVCC? PROTECTION:CVCC 0 PROTECTION:CVCC? Q 46:How to clear the state of protection? PROT:CLE...
  • Page 80 Q 49:How to set up and read back the overpower protection state? PROT:OPP ON PROT:OPP? PROTECTION:OPP 0 PROTECTION:OPP? Q 50:How to set up and read back the overpower protection point? PROT:OPP:LEV 30 PROT:OPP:LEV? PROTECTION:OPP:LEVEL 40 PROTECTION:OPP:LEVEL? Q 51:How to set up and read back the overvoltage protection state? PROT:OVP ON PROT:OVP? PROTECTION:OVP 0...
  • Page 81 Q 55:How to read back error code? SYS:ERR? SYSTEM:ERROR? Q 56:How to set up and read back the external adjustment state? SYS:EXT VOLT SYS:EXT? SYSTEM:EXTERNAL RESISTANCE SYSTEM:EXTERNAL? Q 57:How to set up and read back the GPIB address? SYS:GPIB:ADDR 5 SYS:GPIB:ADDR? SYSTEM:GPIB:ADDRESS 6 SYSTEM:GPIB:ADDRESS?
  • Page 82 SYS:POWER:TYPE? SYSTEM:GPIB:ADDRESS? Q 63:How to set up and read back the voltage under user-defined booting mode? SYS:POW:VOLT 10 SYS:POW:VOLT? SYSTEM:POWER:VOLTAGE 20 SYSTEM:POWER:VOLTAGE? Q 64:How to set up and read back the current under user-defined booting mode? SYS:POW:CURR 10 SYS:POW:CURR? SYSTEM:POWER:CURRENT 20 SYSTEM:POWER:CURRENT? Q 65:How to set up and read back the output state under user-defined booting mode?
  • Page 83 SOUR:VOLT? SOURCE:VOLTAGE 35 SOURCE:VOLTAGE? Q 70:How to set up and read back the output current? SOUR:CURR 40 SOUR:CURR? SOURCE:CURRENT 35 SOURCE:CURRENT? Q 71:How to set up and read back parallel/series mode? PS:MODE PARALLEL PS:MODE? PS:MODE 2 PS:MODE OFF Q 72:How to set up and read back master/slave in parallel/series mode? PS:TYPE MASTER PS:MODE? PS:MODE SLAVEB...

  • Page 84: State Bit Definition

    State Bit Definition When “ STATE?” command is used, the system will return three (3) bytes in the order as shown below. Byte 2 Byte 1 Byte 0 bit 7 ~ bit 0 bit 7 ~ bit 0 bit 7 ~ bit 0 The definition of each bit is described in the following table.

  • Page 85: 7.7.1 Using Web Server

    7.7.1 Using Web Server All DS series have built-in Web Server. User can control the DS series on the computer by using the Web browser. Open Web browser and input IP address to enter Welcome page. Enter password (presetted as 123456) to login the main page (Home), and then click to select the Items on the left side to the other settings or control page.

  • Page 86: Setting Page (Configuration)

    7.7.1.2 Setting Page (Configuration) 7.7.1.3 Status of Page (Status) Display the status of the system. In case of any error codes, please refer to Sec. 7.3 Error/Event list...

  • Page 87: 7.7.1.4 Web Control

    7.7.1.4 Web Control Set up voltage/current and output. In addition, monitoring the output voltage/current value on line is also allowed (JAVA support is required.). 7.7.2 Using Telnet Enter behind the command prompt under MS-DOS Telnet DeviceIP 5024 (IP address of the system is Device IP 5024 is as Telnet port) will into...

  • Page 88: 7.7.3 Using Sockets

    Welcome page shown as below Input SCPI command behind the command prompt to communicate with the system. 7.7.3 Using Sockets All DS series using port 5025 to provide the standard function of SCPI socket. Users can give SCPI command to achieve the purpose of controlling the systems through users’...

  • Page 89: Assemble Accessories

    Assemble Accessories Assemble Rack Mount Brackets The DS3640/DS6024/DS8018/DS10014 is designed to fit in a space of one rack unit (1U) and can be mounted in a standard 19-inch rack panel or cabinet. Rack mount brackets shall be assembled before mount in a rack. Refer to the following figure to assemble the rack mount brackets.

  • Page 90: (Ds6024/Ds8018/Ds10014)

    (DS6024/DS8018/DS10014) Safety regulation requests protective shield when the voltage is higher than 45Vdc. Therefore, there are protective shields for the remote sense connectors for the DS6024/DS8018/DS10014. Refer to the following figure for the assembly/disassembly of the remote sense protective shield. Step 1 Step 2 Step 3...

  • Page 91: Accessories

    Accessories Product Name:DS3640/DS6024/DS8018/DS10014 Parts List: Item Name & Specification Remarks Terminal Block for Rapid Plug Connector Fixing sheet (slice) Hand-holding bar Operation Manual Power Cord Screw(M4x8) Screw(M5x8) Guarantee certificate WARNING: All parts of this product are safety-certified that can satisfy wide applications under the specified specification.
