Avermedia AVerDiGi EB1304 NET Operation Manual

Hide thumbs Also See for AVerDiGi EB1304 NET:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , User Manual
®
AVerMedia

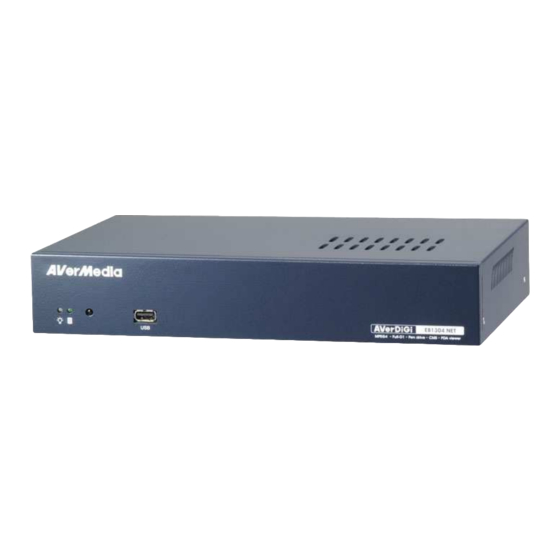

AVerDiGi EB1304 NET
Operation Manual
http://www.avermedia.com
http://www.averdigi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerDiGi EB1304 NET and is the answer not in the manual?

Questions and answers

Gökhan
January 25, 2025

Averdigi eb1304net mause takılırmı

0

Related Manuals for Avermedia AVerDiGi EB1304 NET

Summary of Contents for Avermedia AVerDiGi EB1304 NET

  • Page 1 ® AVerMedia AVerDiGi EB1304 NET Operation Manual http://www.avermedia.com http://www.averdigi.com...
  • Page 2 The information contained in this documentation is subject to change without notice. In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 3 WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID UNAUTHORIZED PRODUCT MODIFICATION NOTICE - INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE...

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Introduction ...............1 Package Content..................1 Features and Specifications ............... 1 Front Panel ....................2 Back Panel....................2 Setting Up the DVR Unit ................3 1.5.1 Installing the Hard Disk................3 1.5.2 Connecting Devices................5 1.5.3 Connecting the Sensor/Relay device.............
  • Page 5 8.1.1.1 Camera Setup.................. 37 8.1.1.2 Record Setup ................... 38 8.1.1.3 Alarm/Sensor Setup ................. 39 8.1.1.4 Network Setup ................. 41 8.1.1.5 Password Change................43 Familiarizing the Remote Console Buttons ..........44 8.2.1 To Setup Remote Console Setting............45 Using the Remote Playback ..............46 8.3.1 Familiarizing the Local Playback Buttons ..........

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Package Content (1) AVerDiGi EB1304 NET unit (2) Remote Control (batteries included) (3) Quick Installation Guide (4) Power Cord * The power cord varies depending on the standard power outlet of the country where it is sold.

  • Page 8: Front Panel

    Support Central Management System(CMS) Support remote console Support USB backup to pen drive and external hard disk Support network, playback, and recording simultaneously Supports 1 hard disk drive (not included) Full-screen resolution: Display: 720 x 480 (NTSC) / 720 x 576 (PAL) Recording: 720 x 480 (NTSC) / 720 x 576 (PAL) Recording frame rate: D1 mode: 60fps(NTSC) / 50fps (PAL)

  • Page 9: Setting Up The Dvr Unit

    The DVR unit allows user to install one hard disk. Before installing the hard disk, make sure to set the hard disk master jumper setting. Adjust the jumper setting according to the instructions on the hard disk label. For hard disk spec, please referring to http://www.avermedia.com/nvd/hardware-recom_eb_c.asp...
  • Page 10 This includes direct, indirect, incidental, special, or consequential damages, resulting from the incompatibility caused by the usage of these hard disks, even if AVerMedia has expressly advised about the risk of such damages. The entire risk arising out of the use of any information attached here with is borne by the recipient.

  • Page 11: Connecting Devices

    5. Connect the end of the IDE cable 6. Secure the hard disk inside the unit and the power connector to the hard then replace unit cover disk 7. Push the cover forward Secure the cover 9. You may now connect all the cables. When the power is connected, the Power LED light turns on 1.5.2 Connecting Devices...

  • Page 12: Connecting The Sensor/Relay Device

    Each time you change the video display output, the power must be turned off and on to reset the DVR unit. 1.5.3 Connecting the Sensor/Relay device The Sensor and Alarm ports enable you to connect (4) sensor inputs and (1) relay outputs.
  • Page 13 Relay signal...

  • Page 14: Chapter 2 Operating The Eb1304 Net

    Chapter 2 Operating the EB1304 NET Familiarizing the Remote Control Buttons Use the Remote control to operate the OSD menu on surveillance screen. EB DVR (10) (11) (12) (13) (14) (18) SELECT MENU (15) (17) LEFT RIGHT (16) ▲ FOCUS + DOWN ZOOM + ▼...

  • Page 15: Using Ab Repeat Function

    Button Function Decrease the video playback at the speed of 2x, 4x 8x or 16x Fast play the video playback at the speed of 2x, 4x 8x or 16x (13) Stop playing / Stop recording (14) USB backup(see 2.1.2) To move the selection to the left and right (15) ▲...

  • Page 16: Using Usb Backup Button

    2.1.2 Using USB Backup Button User can press button to backup the AB Repeat video file. 1. Set the AB Repeat file (see 2.1.1). 2. Plug in pen drive or external hard disk to DVR system. USB BAKCUP YES(SELECT) / NO(MENU) 3.

  • Page 17: Surveillance Screen

    Surveillance Screen To know if the channel is being recorded, the “ ” record symbol would appear beside the channel number. The (microphone) and (speaker) indicate that the audio is available. The information below the screen shows the current date and time, recording mode (record schedule setting), and the percentage of the used hard disk space.
  • Page 18 TIME SEARCH (search by date and time): Use the buttons and select ▲ TIME SEARCH ▼ HARD DISK START TIME : 2006 / 05 / 04 10 : 00 : 01 SEARCH TIME. Then press END TIME : 2006 / 05 / 05 13 : 08 : 13 SEARCH TIME : 2006 / 05 / 04...
  • Page 19 B – Button Recording It records when the record button is pressed The “ ” play symbol would appear beside the channel number when you are previewing in playback mode.

  • Page 20: Chapter 3 Osd Navigation Tree

    Chapter 3 OSD Navigation Tree The follow figure is an OSD menu tree map. To call out the OSD menu, press on the remote control. PASSWORD SETUP MAIN MENU RECORD SCHEDULE RECORD SCHEDULE CURRENT CAMERA SELECT 00 : 00 - 01 : 00 ALWAYS REC 13 : 00 - 14 : 00 ALWAYS REC...

  • Page 21: Menu Function

    Menu Function If the unit is currently recording the video, user may have to stop video recording to change the settings. Use remote control to navigate in the OSD menu. The red frame turns yellow when you are making a selection. OSD MENU Description MAIN MENU...
  • Page 22 OSD MENU Description RECORD SCHEDULE RECORD SCHEDULE: 00 : 00 - 01 : 00 ALWAYS REC By default, in 24 hours, the recording schedule is set to 01 : 00 - 02 : 00 ALWAYS REC 02 : 00 - 03 : 00 ALWAYS REC always record every hour.
  • Page 23 OSD MENU Description USER(NETWORK): The login account for remote connection through the internet. User account only can view and playback recorded video by Web viewer (ex: Internet Explorer), but no authority to change the DVR system’s setting. The factory default password is 111111. SET NW PASSWORD CURRENT CONFIRM...
  • Page 24 OSD MENU Description AUTO SCAN SUBMENU AUTO SCAN PASSWORD CHANGE 10 SEC CHANNEL - 1 VIDEO ADJUSTMENT CHANNEL - 2 10 SEC DATE 2006 / 04 / 20 CHANNEL - 3 10 SEC TIME 17 : 54 : 50 CHANNEL - 4 10 SEC AUTO RECORD AUTO SCAN...
  • Page 25 OSD MENU Description HARD DRIVE SETUP OVERWRITE ENABLED : OVERWRITE ENABLED HDD SIZE 78MB Enable/disable overwriting the earliest record when the HDD USED 232MB hard disk space runs out. By default, the HDD overwrite HDD FORMAT setting is enabled HDD FORMAT : For security purpose, you may have to enter the password to format hard disk To format hard disk:...
  • Page 26 OSD MENU Description SENSOR SETUP SENSOR REC TIME : SENSOR REC TIME 010 SEC ALARM OUT TIME 010 SEC Set the amount of time (in second) to start record when CHANNEL - 1 NOT INSTALLED the sensor has triggered CHANNEL - 2 NOT INSTALLED CHANNEL - 3 NOT INSTALLED...
  • Page 27 OSD MENU Description host addresses. Enter the subnet mask of the IP NETWORK SETUP address which user has assigned to DVR IP MODE STATIC NW ENABLE system. VIDEO PORT UPGARDE PORT 5005 GATEWAY: A network device act as a passageway to internet. Enter the network gateway IP address DNS: Domain Name Server translates domain names...
  • Page 28 OSD MENU Description When DVR system gets an IP address from DHCP NETWORK SETUP server, the information will display as below: IP MODE STATIC NW ENABLE NETWORK INFORMATION VIDEO PORT IP ADDRESS 192.168.153.100 UPGARDE PORT 5005 255.255.255.255 SUB NET GATEWAY 192.168.153.254 192.168.153.1 MAC ADDRESS...
  • Page 29 OSD MENU Description values and press to confirm. NETWORK SETUP IP MODE STATIC NW ENABLE VIDEO PORT: VIDEO PORT UPGARDE PORT 5005 A port for the remote connection. Any port can be assigned as a video port, except the ports already used by the network services.
  • Page 30 OSD MENU Description USB BAKCUP TIME SET And then, select BACKUP EXECUTE to start backup video to the USB device. START TIME : 2006 / 05 / 04 10 : 00 : 01 END TIME : 2006 / 05 / 05 13 : 08 : 13 BACKUP CHANNEL BACKUP SIZE...

  • Page 31: Chapter 4 Using The Usb Playback Console

    Chapter 4 Using the USB Playback Console Recommended system requirements Pentium®4 2.4GHZ or above Windows®2000/ XP DDR 256 MB Graphic function must support DirectDraw Audio card or built-in Speaker 1 available USB2.0 port Installing the USB Playback Console To install the USB Playback Console: Place Installation CD into the CD-ROM drive.

  • Page 32: Running The Usb Playback Console

    Running the USB Playback Console To run the application, click the icon on the PC desktop (10) (11) (17) (12) (13) (16) (15) (14) Name Function Video playback screen To select the video file for playing. The playback application supports *.dvr and *.avf file. Open File - DVR Recorded File (HD): To playback the recorded video from the hard disk which was recording video on the DVR system.
  • Page 33 Name Function Select the event you want to playback. The event list only available when user select to playback in DVR Recorded File(HD). Event List Full screen Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard.

  • Page 34: To Cut And Save The Portion Of The Recorded Video

    Name Function Turn on and off the sound (17) Sound /Sound bar Increase and decrease the volume 4.3.1 To Cut and Save the Portion of the Recorded Video Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut.

  • Page 35: Playback Backup File(*.Dvr)

    4.3.3 Playback Backup File(*.dvr) Click Open File button. Select Backup File(*.dvr) and click OK. Locate the backup file folder and click OK. When open the backup video file, just locate the where backup file folder is. And then, Playback Date/Time Selection window appears. Select the date and time and click OK.

  • Page 36: Chapter 5 Backup Recorded Video File

    Chapter 5 Backup Recorded Video File Recommended system requirements Pentium®4 2.4GHZ or above Windows®2000/ XP DDR 256 MB Graphic function must support DirectDraw Audio card or built-in Speaker 1 available USB2.0 port Familiarizing with HDD Backup Application (10) Name Function No.: the list order number Record: the record type(see also Chapter...

  • Page 37: To Backup Recorded Video File

    Name Function Target Path To locate on where user want to save the file Event (%) Display the backup progress rate of event in percentage Total (%) Display the total backup progress rate in percentage Stop Stop backup progress Start Start backup progress Select all listed recorded video events.

  • Page 38: Chapter 6 Imageverification

    Chapter 6 ImageVerification Image Verification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files. To Run the ImageVerification To run the ImageVerification application, click the Watermark button on USB Playback Application main interface.

  • Page 39: Chapter 7 I-Enhance

    Chapter 7 i-Enhance The bundled i-Enhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the selected portion of the video, zoom in and out the image, and print or save the screen shot. You can also save the setting and apply it on other files.

  • Page 40: To Use I-Stable

    Name Function (11) Undo Delete the last action. (12) Noise Reduce Adjust the softness and repair the damaged colours. (13) Sharpness Improve the overall image by enhancing edges. This gives the image more depth. (14) Effects Gray Scale: convert the image into black and white (monochrome). Normalize: adjust the brightness intensity.

  • Page 41: Chapter 8 Using The Remote Programs

    Chapter 8 Using the Remote Programs User can use Microsoft Internet Explorer to access DVR system by entering the IP address. To use this feature, make sure that you PC and EB 1304 NET both are connected to the internet and the Network feature is enabled. Accessing this feature for the first time you will be prompted by your browser to install WebCamX.cab, allow the installation and you should be able to connect and login afterwards.

  • Page 42: Familiarizing The Web Viewer Buttons

    Familiarizing the Web Viewer Buttons Right-clicking on the Web Viewer video screen, enables you to start video recording, change video quality, switch camera and enable/disable DirectDraw. Name Function (1) DirectDraw Enhance the video quality. Not all graphic cards can support this function. If you can not see the screen display correctly or screen is messed, please check with VGA card vendor.

  • Page 43: To Setup Remote System Setting

    Name Function (11) Select cameras to Select to the view camera from different server. In Select Camera view dialog box, Display column, click to enable/disable viewing the camera. Click Add Server and select the server type between DVR and IP Cam to add.

  • Page 44: Record Setup

    (3) Video Adjustment Select the camera and adjust the Brightness, Contrast, Hue and Saturation of the selected camera. (4) Default Value Set the video value back to default 8.1.1.2 Record Setup (1) Record Select Enable/disable the channel number to record video The channels which could be recorded should be enabled in the CAMERA SELECT first.

  • Page 45: Alarm/Sensor Setup

    (4) Video Quality Select the video quality setting from BEST, HIGH, MEDIUM, GOOD, NORMAL or LOW. (5) Auto Record Enable/disable auto continue recording when interrupted (i.e., power breakdown, video playback or configuration setup). It continue recording after 10 second of idleness. This is applicable in Always Record mode under schedule setting.
  • Page 46 The Motion Detection must be enabled first, the alarm sending mail will send out the mail when detect motion. - Alarm Out Time Set the amount of time (in second) to continue sending the alarm once activated (2) Sensor Setup - Sensor Status Customize the initial state of the attached sensor for every camera.

  • Page 47: Network Setup

    8.1.1.4 Network Setup (1) IP Mode - Static IP Assign a fixed and global IP address for the DVR system IP: Assign a constant IP address which real IP addresses give from ISP. Mask: Enter the subnet mask of the IP address which user has assigned to DVR system.
  • Page 48 A password use to access DDNS to register the domain name. MAC address of the DVR system is the key for user to register the domain name on AVerMedia DDNS web site. To find MAC address of your DVR system, follow the steps below: 1.

  • Page 49: Password Change

    8.1.1.5 Password Change Click Remote setup button on Web Viewer main interface, and then, click User button to call out the Password Change interface. (1) Superuser Change the remote accessing password of super user. Superuser has the authority to remote setup the DVR system configuration on Web Viewer. - Password Enter the new password - Password Confirm...

  • Page 50: Familiarizing The Remote Console Buttons

    Familiarizing the Remote Console Buttons (12) (11) (10) (13) Name Function (1) Exit Close the Remote Console. (2) Audio button Enable/disable the sound. (3) Split Screen Mode Select from six (6) different split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.

  • Page 51: To Setup Remote Console Setting

    8.2.1 To Setup Remote Console Setting Click Setup button to call out the System Setting windows. Click OK to exit and save the setting and Cancel to exit without saving the setting. (1) Storage Path Set the directory on where to save the data. When there is not enough free space to record one hour data, the system automatically replaces the oldest data.

  • Page 52: Using The Remote Playback

    Console screen. To select all the cameras, enable the ALL check box. Using the Remote Playback To use this feature, first you need to select the source of the file. Click the Playback button. And then, in the Select Playback Mode dialog box, choose Local Playback to open the file that is recorded in the Remote Console, and Remote Playback to open the file that is recorded in the DVR server.

  • Page 53: Familiarizing The Local Playback Buttons

    block turns red when it is selected. The block that appears in white doesn’t have data. You can only select one block when you choose Download and Playback. 3. Click OK to proceed and Cancel to void this operation. 4. If you select Download Playback and after making the selection, the system divides the selected hour into 16 video thumbnails.

  • Page 54: To Cut And Save The Wanted Portion Of The Recorded Video

    (4) Playback Control Begin: Move at the beginning of the recorded video file. Buttons Previous: Go back to the previous frame. Slower: Play the recorded video file at the speed of ½x, ¼x, or ⅛x. Rewind: Wind back the video file. Pause: Briefly stop playing the recorded video file.

  • Page 55: Familiarizing The Download And Playback Buttons

    filename, and select the video format. 8.3.2 Familiarizing the Download and Playback Buttons Name Function (1) Progress bar Show the progress of the file being played. You may move the bar to seek at any location of the track. (2) Playback Begin: Move at the beginning of the video file.

  • Page 57: Appendix A Registering Domain Names

    Appendix A Registering Domain Names DDNS (Dynamic Domain Name Service) is a data query service mainly used on the Internet for translating domain names into Internet addresses. It allows remote clients to intelligently search dynamic servers without any previous enquiring for servers’...

  • Page 58: Warranty Notice

    Any other cause which does not relate to a product defect 3. Cartons, cases, batteries, cabinets, tapes, or accessories used with product 4. AVerMedia does not warrant that this product will meet your requirements; it is your responsibility to determine the suitability of this product for your purpose WHAT WE WILL AND WILL NOT PAY FOR We will pay labor and material expenses for covered items.
