AVerMedia
Package Contents

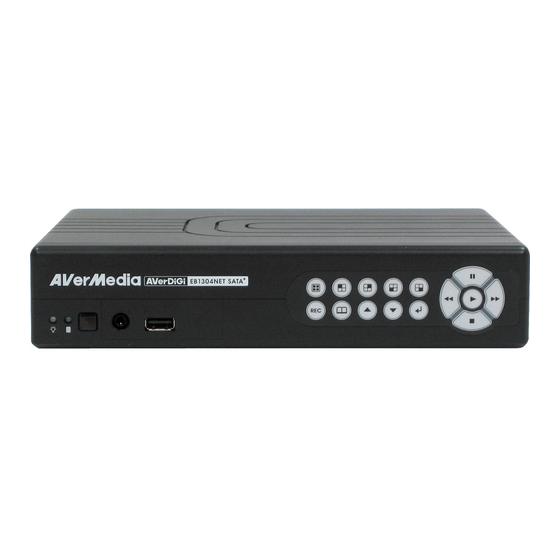

AVerDiGi EB1304 NET unit
Remote Control (Batteries are
included)
Power Cord (*The power cord
may vary according to the local
electricity system.)
If there is any damage, shortage or inappropriate item in the package
i
contents, please contact with local dealer
®
AVerDiGi EB1304 NET
Quick Installation Guide
Power Adaptor
DVR accessories (4 screws)
Quick Installation Guide
Software CD (Manual is
included)
1
Advertisement
Table of Contents
Related Manuals for Avermedia EB1304 NET
Summary of Contents for Avermedia EB1304 NET
- Page 1 ® AVerMedia AVerDiGi EB1304 NET Quick Installation Guide Package Contents AVerDiGi EB1304 NET unit Power Adaptor Remote Control (Batteries are DVR accessories (4 screws) Quick Installation Guide included) Power Cord (*The power cord Software CD (Manual is may vary according to the local included) electricity system.)
- Page 2 Hardware Installation A. Install the hard disk Follow the steps to install the hard disk: Install the Hard Disk Inside the DVR System Loosen screws Connect the IDE cable Remove the case cover connector to the hard disk, and backward and upward then connect the power connect Loosen the screws on the hard to the hard disk power slot...
- Page 3 B. After the hard disk installation, please connect the cables and power as the illustration showed Using DVR System Power on the system. DVR Press to format hard will check the hard disk status. disk. And then, user will see If the hard disk is new to the “HDD FORMATTING”...
- Page 4 As surveillance screens Press appear, press button to buttons to switch to each record. channel. Setup Time and Date For the first time using, please adjust the system date and time in order to have correct recording time. SUBMENU PASSWORD CHANGE VIDEO ADJUSTMENT Press and select Submenu...
- Page 5 used mainly with ADSL services. If your network is using ADSL service to connect to internet, and then, select PPPOE mode. SUBNET: Enter the subnet mask of the IP address ( Only STATIC IP mode need to enter) GATEWAY: Enter the network gateway IP address from your local network (Only STATIC IP mode need to enter) DNS: Domain Name Server translates domain names (such as www.abb.com.tw) to IP addresses.
- Page 6 file size. 6. And then, select BACKUP EXECUTE to start backup video to the USB device. Backup AB Repeat File In playback mode, user also can backup the A B repeat video file which user has set by using the AB repeat function. Press (play button) to call out the SEARCH MODE menu to find the period of recorded video that user wants to backup.
- Page 7 And then, click OPEN FILE button and select the file source. For more information, please refer to the operation manual in the software CD. If you still have inquiries, please log on to http://www.avermedia.com http://www.averdigi.com for troubleshooting...
