Martin MAC III AirFX User Manual

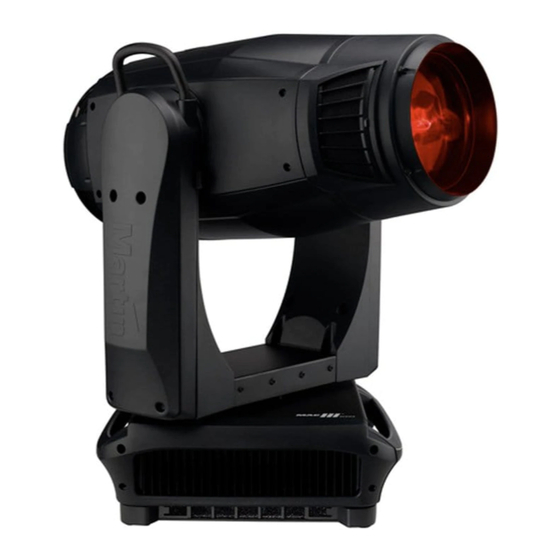

Moving-head spotlight
Hide thumbs Also See for MAC III AirFX:
Table of Contents

Advertisement

Quick Links

Download this manual
MAC III™ AirFX
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAC III AirFX and is the answer not in the manual?

Questions and answers

Related Manuals for Martin MAC III AirFX

Summary of Contents for Martin MAC III AirFX

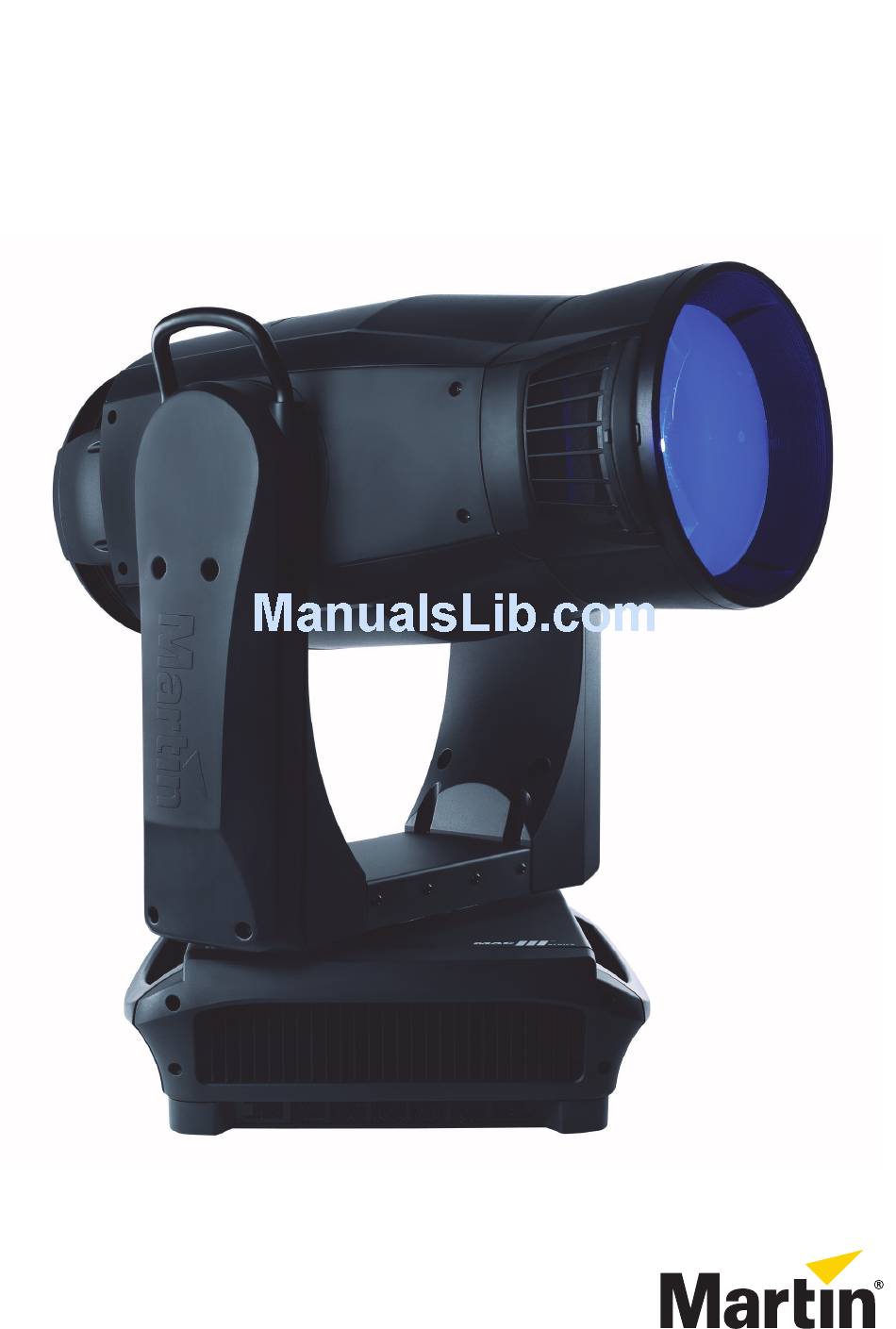

  • Page 1 MAC III™ AirFX USER MANUAL...
  • Page 2 The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trade- marks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.

  • Page 3: Table Of Contents

    Aerial effects in the MAC III AirFX ........

  • Page 4: Safety Information

    If you have questions about how to operate the fixture safely, please contact your Martin supplier or call the Martin 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180.
  • Page 5 • Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F). • Do not modify the fixture in any way not described in this manual or install other than genuine Martin parts. Do not stick filters, masks or other materials onto any lens or other optical component. Use only Martin-approved accessories to mask or modify the light beam.

  • Page 6: Introduction

    Technical Documentation, Martin Professional A/S, Olof Palmes Allé 18, DK-8200 Aarhus N, Denmark. Unpacking The MAC III AirFX is packaged in either a cardboard box or a flightcase that is designed to protect the product during shipment. The following items are included: •...

  • Page 7: Ac Power

    The MAC III AirFX requires a power input cable with a Neutrik PowerCon NAC3FCA cable connector for AC mains power input. The cable must meet the requirements listed under “Protection from electric shock” on page 4.

  • Page 8: Applying Power

    Applying power To apply power, first check that the tilt lock is released and that a power input cable is connected, then set the power switch on the base (see Figure 1) to the “I” position. MAC III AirFX user manual...

  • Page 9: Lamp

    Lamp About the discharge lamp The MAC III AirFX is designed for use with an Osram Lok-it HTI 1500W/60/P50 - 7mm lamp. This highly efficient single-ended discharge source provides a color temperature of 6000 K, a color rendering index greater than 90, an average service life of 750 hours and semi-hot restrike, meaning that a hot lamp is ready to strike again after 90 seconds.
  • Page 10 3. Aim the fixture at an even surface and make sure no further commands can be sent by DMX. 4. See Figure 3. Screw the three lamp adjustment screws in or out to obtain the most even beam. Figure 3: Lamp adjustment screws MAC III AirFX user manual...

  • Page 11: Dmx Data Link

    1. Connect the DMX data output from the controller to the MAC III AirFX’s data input (male XLR) socket. 2. Run the data link from the MAC III AirFX’s data output (female XLR) socket to the data input of the next fixture.

  • Page 12: Physical Installation

    Do not apply power to the MAC III AirFX unless the base is securely fastened to a surface or to rigging hardware. Warning! Use 2 clamps to rig the fixture. Do not hang the fixture from only one clamp. Lock each clamp with both 1/4-turn fasteners.
  • Page 13 9. Check that other lighting fixtures cannot project light at the MAC III AirFX from a distance of less than 3 m (10 ft.), as intense illumination can damage the MAC III AirFX’s display.

  • Page 14: Control Panel Operations

    This feature allows easy identification of fixtures that require service intervention even if fixtures are disconnected from power. Martin flightcases for the MAC III AirFX contain a small window through which the status LED is visible. MAC III AirFX user manual...

  • Page 15: Setup Wizard

    Battery power The display and control panel are powered by the MAC III AirFX’s onboard battery. This gives access to the most important functions in the control panel – including DMX addressing – when the fixture is not connected to AC power.

  • Page 16: Fixture Id

    Fixture ID The MAC III AirFX lets you set a four-digit ID number to ease identification of the fixtures in an installation. When a fixture is powered on for the first time, it displays its DMX address by default. As soon as you set an ID number other than 0000 in FIXTURE ID, the MAC III AirFX will display this ID number by default.
  • Page 17 See Figure 10. To limit pan so that it stays inside a safe zone 20° either side of fully forward and limit tilt so that it stays inside a safe zone 18° either side of fully forward, for example: 1. Set PAN MINIMUM to 70°. 2.

  • Page 18: Factory Settings

    • DISPLAY ROTATION lets you rotate the display manually through 0°, 90°, 180° or 270° so that it can be read easily no matter how the fixture is oriented. If set to Auto, the MAC III AirFX senses its orientation and rotates the display automatically.

  • Page 19: Fixture Information Readouts

    • EVENT LOG VIEWER lets you view event logs in the fixture’s display panel. See “Event log” on page 32. DMX signal monitoring The MAC III AirFX provides data on the DMX signal it is receiving in the DMX LIVE menu. This information can be useful for troubleshooting control problems.

  • Page 20: Test Sequence

    The MANUAL CONTROL menu lets you reset the fixture, strike or douse the lamp, apply effects and move pan and tilt manually. Service The SERVICE menu is covered under “Service and maintenance” on page 31. MAC III AirFX user manual...

  • Page 21: Adjusting Settings Via Dmx

    Adjusting settings via DMX Certain fixture settings and parameters can be adjusted from the DMX controller on DMX channels 21 and Commands sent via DMX override any settings entered in the fixture’s onboard control menus. However, to reset the fixture, reset individual effects or cut power to the lamp via DMX if DMX Reset or DMX Lamp Off are disabled in the control menus, certain conditions must be met (see the notes in the DMX Protocol table in this manual).
  • Page 22 DMX channel (for example, set Cyan to 192 on channel 2. Send a ‘Store’ command for the effect on the Fixture Adjustment/Calibration channel. The MAC III AirFX now reads the value on the effect -2.5% channel (192 for Cyan in the example above), translates it to an adjustment value of between -5% and +5% as shown in Figure 12 (+2.5% Cyan adjustment in the example...

  • Page 23: Effects

    Effects This section gives details of the effects that can be controlled via DMX. See “MAC III AirFX DMX protocol” on page 44 for details of the channels used to control them. Where fine control is available, the main control channel sets the first 8 bits (the most significant byte or MSB), and the fine channels set the second 8 bits (the least significant byte or LSB) of the 16-bit control byte.

  • Page 24: Aerial Effects

    The MAC III Wash and MAC III AirFX use the same color wheel, but the wheel is installed facing in opposite directions in the two fixtures. The fixture firmware takes this difference into account so that color filter selection via DMX is identical in the two fixtures.

  • Page 25: Iris

    16) and via DMX. Followspot mode The MAC III AirFX features a followspot mode in which the fixture ignores any pan, tilt, or pan and tilt commands sent via DMX or the control menu, releasing the head for use as a followspot.
  • Page 26 Self-tapping screws fastened into magnesium alloy should be left there permanently. If you are going to switch between using the MAC III AirFX as a manually-controlled followspot and as a DMX-controlled moving head from time to time, you will need to install and remove followspot handles. In...

  • Page 27: Rdm

    RDM ID Each MAC III AirFX has an RDM UID that makes it uniquely addressable. This can be found in the control panel menus under FIXTURE INFORMATION. RDM UID shows the fixture’s factory-set unique ID for identification in RDM systems.
  • Page 28 MAC III AirFX supported standard commands allowed allowed RDM parameter ID’s (slot 21-22) Notes Category – Network Management DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE Category - Status Collection  QUEUED_MESSAGE  STATUS_MESSAGES  STATUS_ID_DESCRIPTION  CLEAR_STATUS_ID Category - RDM Information  SUPPORTED_PARAMETERS ...
  • Page 29 PAN/TILT PCB POWER UNIT PCB POWER UNIT CAPACITOR MAINS VOLTAGE LAMP VOLTAGE POWER UNIT LAMP CURRENT LAMP WATTAGE MAC III AirFX supported manufacturer specific commands allowed allowed RDM parameter ID’s (slot 21-22) Notes Category – DMX protocol settings  ...
  • Page 30  FOLLOW_SPOT_MODE_LOCK_TOGGLE   FOLLOW_SPOT_MODE _LOCK_PAN   FOLLOW_SPOT_MODE _LOCK_TILT Fixture cooling settings   LAMP_COOLING   FAN_CLEAN   FAN_MODE Fixture other settings  SERIAL_NUMBER  LICENSE_KEY  EVENT_LOG_USER_EVENT_TRIGGER MAC III AirFX user manual...

  • Page 31: Service And Maintenance

    10 seconds, feedback is automatically disabled. • ADJUST is for use at the factory and by authorized Martin Service technicians only. This menu allows dimmer, shutter, pan and tilt positions to be adjusted after replacement of components, etc. To adjust the default positions of all the MAC III AirFX’s effects, use the CALIBRATION menu instead.

  • Page 32: Event Log

    Event log The MAC III AirFX monitors performance, any errors or warnings, temperatures, etc. and stores data in an ongoing service event log that can be viewed in the fixture’s display or downloaded to a USB memory device and viewed on a PC.
  • Page 33 Event log structure when viewed in a web browser The effects in the example screenshots below may differ slightly from the effects in the MAC III AirFX. The title Power Cycle is displayed in red if that power cycle report includes an error.
  • Page 34 In the example, the fixture was powered on 3 hours and 15 minutes before the current temperature data was logged. Temperature change over time at 15 minute intervals can be followed in MAC III AirFX user manual...

  • Page 35: Calibration

    the table. If you wish, it can also be copied and pasted into spreadsheet software such as Microsoft Excel. Handling XML log files The XML event log files can be archived and e-mailed, but you must include the folder templates and its contents MACIII_EventLog.css and MACIII_EventLog.xsl in the same folder as the XML files so that web browsers can view the event logs correctly: Zipping the EVENT LOGS MAC III SERIES folder before storing or sending should ensure that the nested...

  • Page 36: Software Installation

    2. Disconnect the data link from the MAC III AirFX. 3. Insert the USB stick in the MAC III AirFX’s USB host socket. The fixture should recognize the USB stick, illuminate the display panel and show the UPDATE FIRMWARE window in the display. Alternatively, scroll to the UPDATE FIRMWARE menu under SERVICE in the control panel.

  • Page 37: Cleaning

    • A USB/DMX hardware interface device such as the Martin USB Duo™ or Martin DABS1™. To install the MAC III firmware: 1. Download the firmware ‘.MU3’ file from the MAC III AirFX support page on the Martin website at www.martin.com to the PC.
  • Page 38 7. Check that all filter holders are correctly installed so that there is an airtight seal around all their edges. Figure 18: Base air filters Figure 19: Reinstalling head air filters MAC III AirFX user manual...

  • Page 39: Lubrication

    6. Reinstall the head covers. Lubrication The MAC III AirFX does not require lubrication under normal circumstances. The slides for the zoom and focus lens cars are lubricated with a long-lasting teflon-based grease that can be reapplied by a Martin service partner if necessary.

  • Page 40: Aerial Effects In The Mac Iii Airfx

    Aerial effects in the MAC III AirFX The MAC III AirFX uses specially-designed borosilicate 3.3 aerial effect gobos with a heavy matted aluminum coating that require particularly careful handling and storage. The use of metal gobos in the MAC III AirFX is not recommended.
  • Page 41 2. See Figure 25. Note the positions of connectors. First unplug the three CMY module connectors B. Then unplug the two effects module connectors C. Lift the module wiresets D with their rubber grommets out of the cutout in the head chassis and move the wiresets out of the way. 3.
  • Page 42 13. Reinstall the effects module in the head, fastening it in position with its two Torx 20 retaining screws and reinstalling connectors in their original positions. 14. If no further service work is to be carried out, reinstall the top cover with its safety wire and release the tilt lock. MAC III AirFX user manual...
  • Page 43 Gobo orientation The orientations shown in Figure 27 are correct in most cases, but consult your Martin dealer or gobo supplier if you are in any doubt about the orientation of a specific gobo type. To minimize the risk of heat damage, priority must be given to installing gobos with their more reflective sides facing the lamp.

  • Page 44: Mac Iii Airfx Dmx Protocol

    128 - 254 51 - 99 Maximum yellow setting (128 = no yellow) Normal (full range) Fade Open (6000 K) → warm (3200 K) 0 - 255 0 - 100 Table 2: MAC III AirFX DMX Protocol MAC III AirFX user manual...
  • Page 45 58 - 83 23 - 32 Fast 84 - 109 33 - 42 Medium 110 - 135 43 - 52 Slow 136 - 255 53 - 100 No function Table 2: MAC III AirFX DMX Protocol MAC III AirFX DMX protocol...
  • Page 46 0 - 100 Pan (MSB/LSB) Left → right Fade 32768 0 - 65535 0 - 100 Tilt (MSB/LSB) Left → right Fade 32768 0 - 65535 0 - 100 Table 2: MAC III AirFX DMX Protocol MAC III AirFX user manual...
  • Page 47 Slot 1 is selected on the color wheel (DMX value 20 on channel 8) Value must be held for 5 seconds to activate Table 2: MAC III AirFX DMX Protocol MAC III AirFX DMX protocol...
  • Page 48 • Shake and Random CMY channel 9 must be set to DMX value 005 - • Fixture control channel 21 must be set to DMX value 055 - 059. Table 2: MAC III AirFX DMX Protocol MSB = Most significant byte...

  • Page 49: Control Panel Menus

    Control panel menus Firmware version 1.1.0 Commands marked * are not available when fixture is running on battery power Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Gives quick access to most frequently-used menus: FACTORY SETTINGS, DMX ADDRESS, PROTOCOL SET, FIXTURE ID plus most frequently-used PERSONALITY settings: PAN/TILT SETTINGS, SPEED SETUP WIZARD SETTINGS, FANS, DIMMING CURVE, AUTOMATIC LAMP ON, DISPLAY.
  • Page 50 DISPLAY INTENSITY 1 - 100% Manually set display intensity DISPLAY Rotate display manually or set to 0° / 90° / 180° / 270° / Auto ROTATION auto-rotate to match fixture orientation Table 3: Control menus MAC III AirFX user manual...
  • Page 51 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Enable error messages and warnings in Normal display PERSONALITY Disable error messages and warnings in ERROR MODE display (the LED in the jog wheel will still (continued) Silent with LED light to indicate fixture status if an error...
  • Page 52 UPDATE FIRMWARE BANK Firmware bank version LOCATION Location of firmware bank EVENT LOG TRIGGER Triggers generation of event log EVENT LOG CLEAN EVENT LOG Clears event log and any current errors Table 3: Control menus MAC III AirFX user manual...

  • Page 53: Service And Display Messages

    Service and display messages The MAC III AirFX gives service and maintenance information by displaying a large 3- or 4-character short code and a smaller full-text message in the display. The short code is visible at a distance, allowing easier reading with the fixture still in the rig, for example, while the full-text message gives more detailed information.
  • Page 54 One or more of the PCB's in the yoke is within 10% of maximum**. Table 4: Warning messages * Adjustment should only be carried out by a qualified service technician with Martin™ service documentation. ** High temperature warnings are canceled as soon as temperature returns to normal. If temperature reaches cutoff level, the warning is replaced by a cutoff error message.

  • Page 55: Error Messages

    Error messages Short code Full-text message BOTV BOOT NOT VALID Decentralized firmware in a module cannot be replaced or does not match bank. FIxture firmware bank must be replaced. BTCO BASE TMP CUTOFF At least one base PCB temperature sensor has reported temperature above the maximum for more than 5 minutes.
  • Page 56 MAINS LOW Input voltage on electronic ballast is too low. It may be impossible to strike lamp. OPER ONBOARD PROG ERR Onboard programming function error. PAER PAN ERROR Pan alignment circuit error. Table 5: Error messages MAC III AirFX user manual...
  • Page 57 Short code Full-text message PSER PAN SENSOR ERROR Unable to detect pan position sensor calibration data. PTCM P/T SENSOR CAL Unable to detect pan/tilt sensor calibration data. PTCO PU TMP CUTOFF Ballast shut down because temperature is too high (thermal cutoff). PTSE PU TMP SEN ERR A ballast temperature sensor is not communicating normally.

  • Page 58: Troubleshooting

    Repair or replace damaged cables. Insert DMX termination plug in data output socket Data link not terminated. of the last MAC III AirFX on the data link. Fixtures reset correctly but respond erratically or not at all Incorrect addressing of fixtures.

  • Page 59: Specifications

    Specifications Physical Length ............. . . 712 mm (28.0 in.) Width .
  • Page 60 Flightcase for 1 x MAC III........... . P/N 91510080 MAC III AirFX user manual...
  • Page 61 MAC III AirFX in cardboard packing case ........
  • Page 62 This product contains two batteries. Ensure that they are disposed of responsibly by an authorized recycling or waste disposal center at the end of their life. Where applicable, Martin participates in schemes whose aim is to ensure that local recycling and/or waste disposal centers accept batteries from Martin products.
  • Page 64 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
