  • Page 1 L-CASE II owner's manual (EN)
  • Page 2 Document reference: L-CASE II owner's manual (EN) version 2.0 Distribution date: October 5, 2023 © 2023 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.

  • Page 3: Table Of Contents

    Contents Safety................................4 Instructions..............................4 Introduction................................ 5 How to use this manual..........................5 Revision history............................5 Rigging system description..........................6 Mechanical safety.............................10 Rigging procedure............................11 Specications..............................14...

  • Page 4: Safety

    For safety issue, respect the maximum congurations outlined in this manual. To check the conformity of any conguration in regards with the safety precautions recommended by L-Acoustics, model the system in Soundvision and refer to the warnings in Mechanical Data section.

  • Page 5: Introduction

    How to use this manual The L-CASE II owner's manual provides information about using L-CASE II as a rigging accessory for amplied controllers. It is intended to be used together with the owner's manual of the amplied controller (if needed).

  • Page 6: Rigging System Description

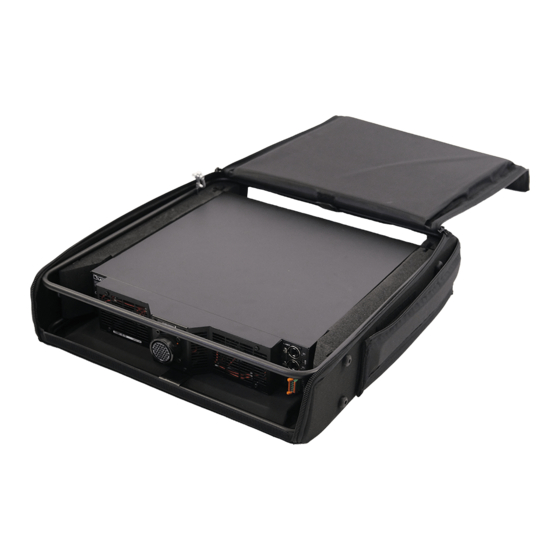

    Rigging system description L-CASE II L-CASE II is designed to offer a high level of protection to L-Acoustics amplied controllers during their transport, storage and operation. It can be quickly deployed in own congurations, or stacked together while maintaining access to the user interface, connectors and display of the amplied controller.
  • Page 7 Opposite to the handle side, four riveted feet ensure protection against oor humidity when the case is upright. Stacking units L-CASE II can be stacked on top of each other. Each L-CASE II features front and rear velcro grips which can be folded and assembled onto the unit.
  • Page 8 Rigging system description Flying units L-CASE II can be quickly own using the handle. A tether passes through the handle and is connected to the electronics chassis for maximum safety. L-CASE II owner's manual (EN) version 2.0...
  • Page 9 Rigging system description Secondary safety Attach a steel wire rope to the steel structure to bypass the motor. L-CASE II owner's manual (EN) version 2.0...

  • Page 10: Mechanical Safety

    2006/42/EC: Machinery Directive species a safety factor of 4 against the rupture. The own deployment described in this manual achieves a safety factor of 4. The L-CASE II is designed to hold L-Acoustics 2U amplied controllers. Its safe use is one amplied controller. Its WLL is rated at 20 kg / 44.1 lb.

  • Page 11: Rigging Procedure

    The rear panel rests on the bottom of the case. The front panel is half engaged in the foam slot. 3. Secure the tether to the amplied controller. Attach the shackle through the top hole in the front left bracket. L-CASE II owner's manual (EN) version 2.0...
  • Page 12 4. Gently push the amplied controller down in its nal position. 5. Close the top ap. For transportation, close all the aps and stack the cases if necessary. During operation, the rear and front aps can remain open, even with stacked cases. L-CASE II owner's manual (EN) version 2.0...
  • Page 13 Rigging procedure The rear ap can be used to protect the cables. The L-CASE II can also be own with both the rear and the front aps open. Secondary safety Attach a steel wire rope to the steel structure to bypass the motor.

  • Page 14: SpeciCations

    Internal element ultra high density foam padding Tether electrogalvanized steel L-CASE II dimensions External dimensions 118 mm / 4.6 in 597 mm / 23.5 in 557 mm / 21.9 in L-CASE II owner's manual (EN) version 2.0...
  • Page 15 Specications Internal dimensions 76 mm / 3 in 535 mm / 21.1 in L-CASE II owner's manual (EN) version 2.0...
  • Page 16 L-Acoustics 13 rue Levacher Cintrat - 91460 Marcoussis - France +33 1 69 63 69 63 - info@l-acoustics.com www.l-acoustics.com...
