Port LEDs

The ports on the IE-iMcV-Switch include diagnostic LEDs that indicate unique
information about the port functionality and status.

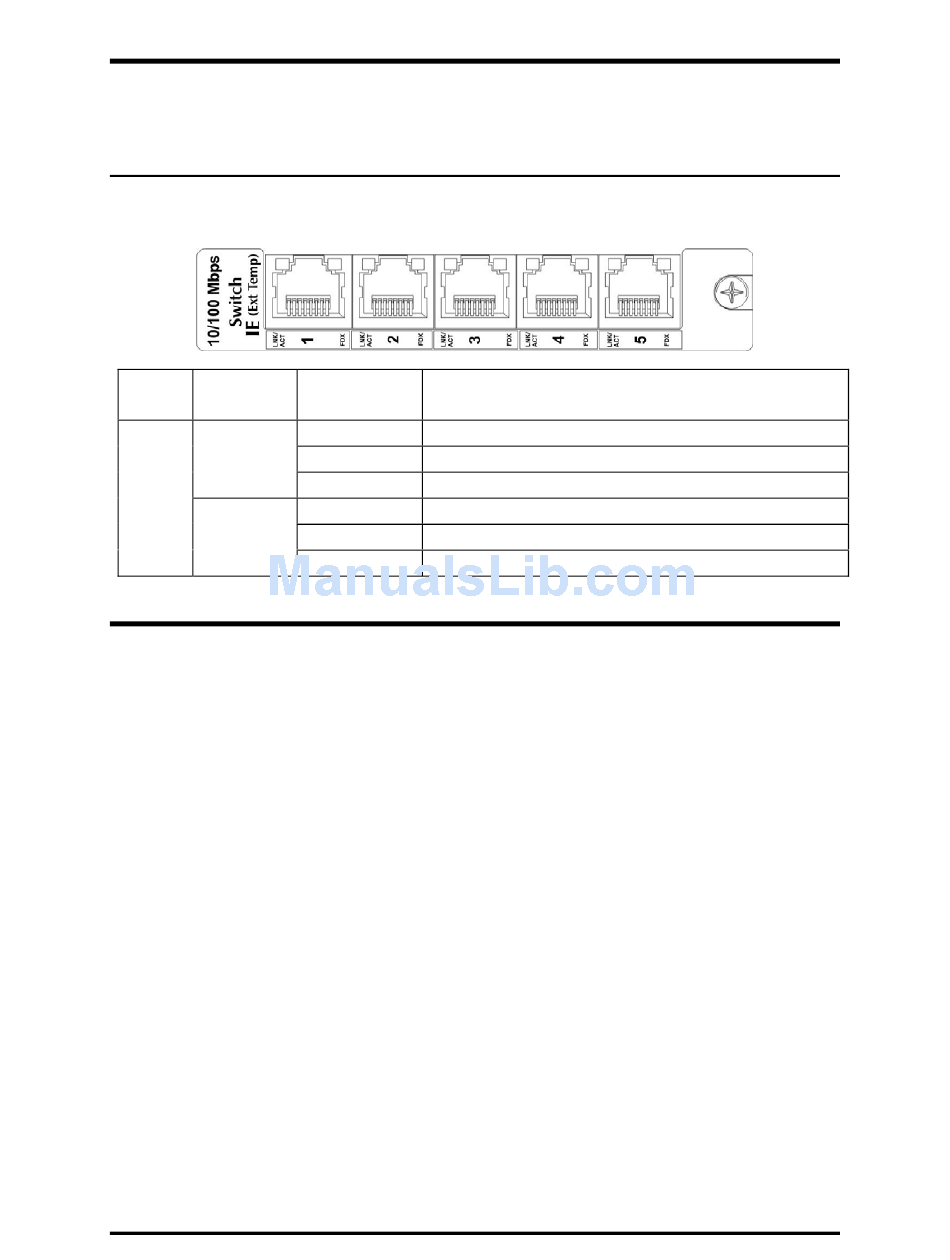

IE-iMcV-Switch-TX/5
For all units with 5 copper ports, the two LEDs associated with each twisted pair port
are defined as follows:
Port LED
Name
LNK/ACT
TX
FDX

Specifications

Industry Standards
IIEEE 802.3x Ethernet Standards
IEEE 802.3u Auto Negotiation Standards
Ethernet Connections: 10/100 BaseT, Auto Negotiation, AutoCross, Flow Control,
1916 MTU, Full Line - Rate Forwarding
Power Consumption (typical)
0.19A @ 5V
Operating Temperature
-40° to +185°F (-40° to +85°C)
+32° to +122° F (0° to +50° C)
Operating Power
2.5W
Storage Temperature
-40° to +185°F (-40° to +85°C)
Humidity
5 to 95% (non-condensing); 0 to 10,000 ft. altitude
Dimensions
4.19" x .78" x 2.75" (106.4 mm x 19.81mm x 69.85 mm)
Color
OFF No link signal detected on copper port
GREEN Copper port is receiving sync signal
Flash GREEN Activity is detected on the port
OFF Port is operating in half duplex
GREEN Port is operating in full duplex
Flash GREEN Flashes when port is set to HDX and collisions occur
2
