Printing the Printer Setup Forms

If you already have the preprinted forms for the printer setup, go to
this manual.
1. With the printer in Setup Mode, insert a blank sheet in A4 or Letter format.
2. The printer loads the sheet and stops.

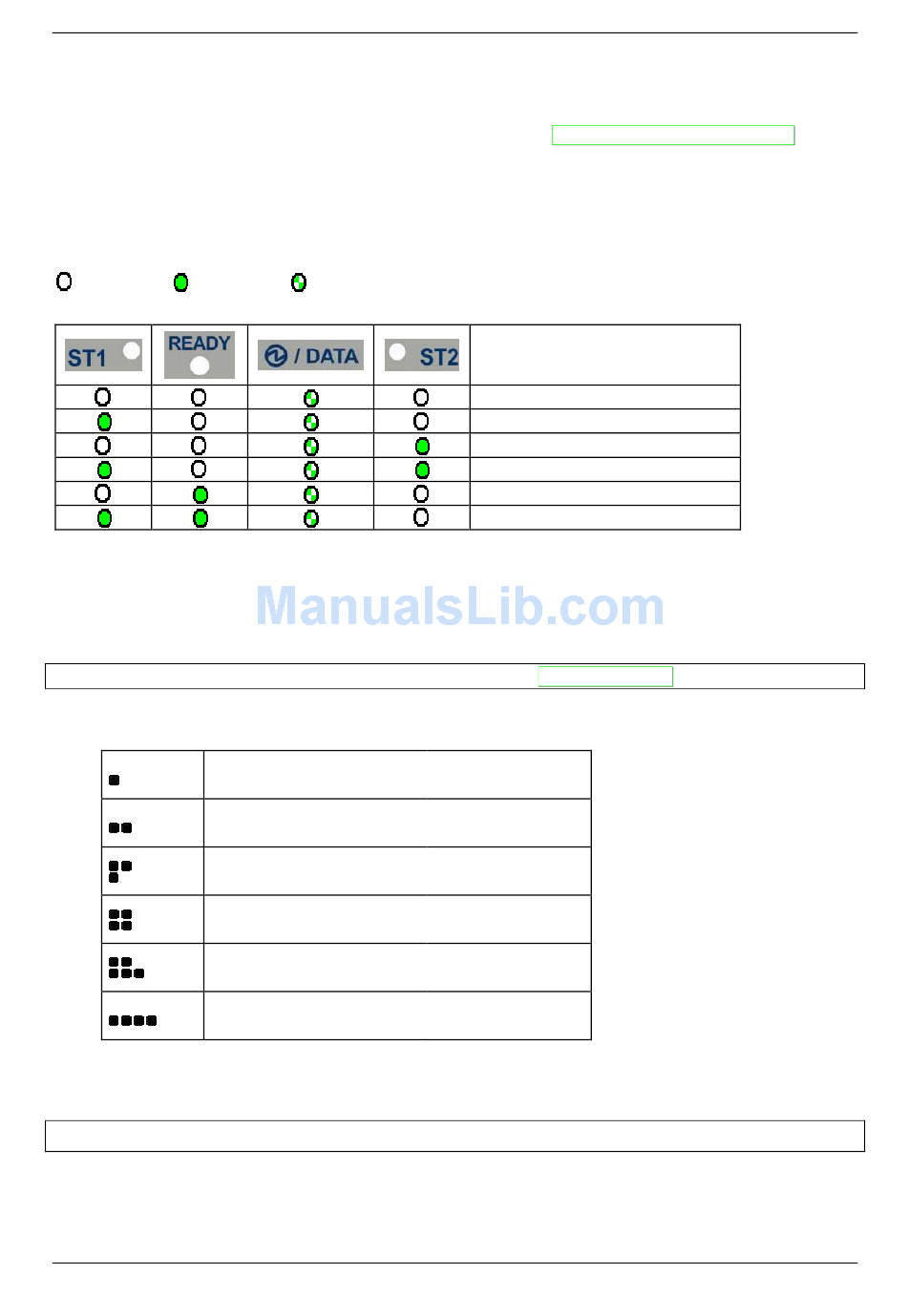

3. If you press the ST1 key, the three leds change and you can select the Setup Page you want to print
as follows:
= unlit = lit
Pressing the ST2 key, the printer prints the selected Setup Page, showed in next pages.
Only the Program 1 Setup Page printout is reported because the other are exactly the same except for the
marker.
The printer setup forms contain all printer parameters and the values that can be set. The current value is
indicated by an asterisk (*).
For a detailed description of the parameters and the settings see
Each Setup form is identified by a marker in the upper left corner of the page as follows:
Configuration Setup
Program 1
Program 2
Program 3
Program 4
Offset Tuning Setup
In this line an empty marker ( ) is printed within the printer model and the Code Version to be used for the
white calibration check.
For the printer with operator panel with LCD, the SETUP operation are directly displayed on the LCD jointly
with the above described leds combination.
= flashing
Remark: do not fill this empty marker
"Filling in the Printer Setup
SETUP STATUS
Configuration Page
Program 1 – Setup Page
Program 2 – Setup Page
Program 3 – Setup Page
Program 4 – Setup Page
Offset Tuning Set Up Page
"Setup Parameters" later in this manual.
( ) FPB-650PII
( ) FPB-650PII
( ) FPB-650PII
( ) FPB-650PII
( ) FPB-650PII
( ) FPB-650PII
