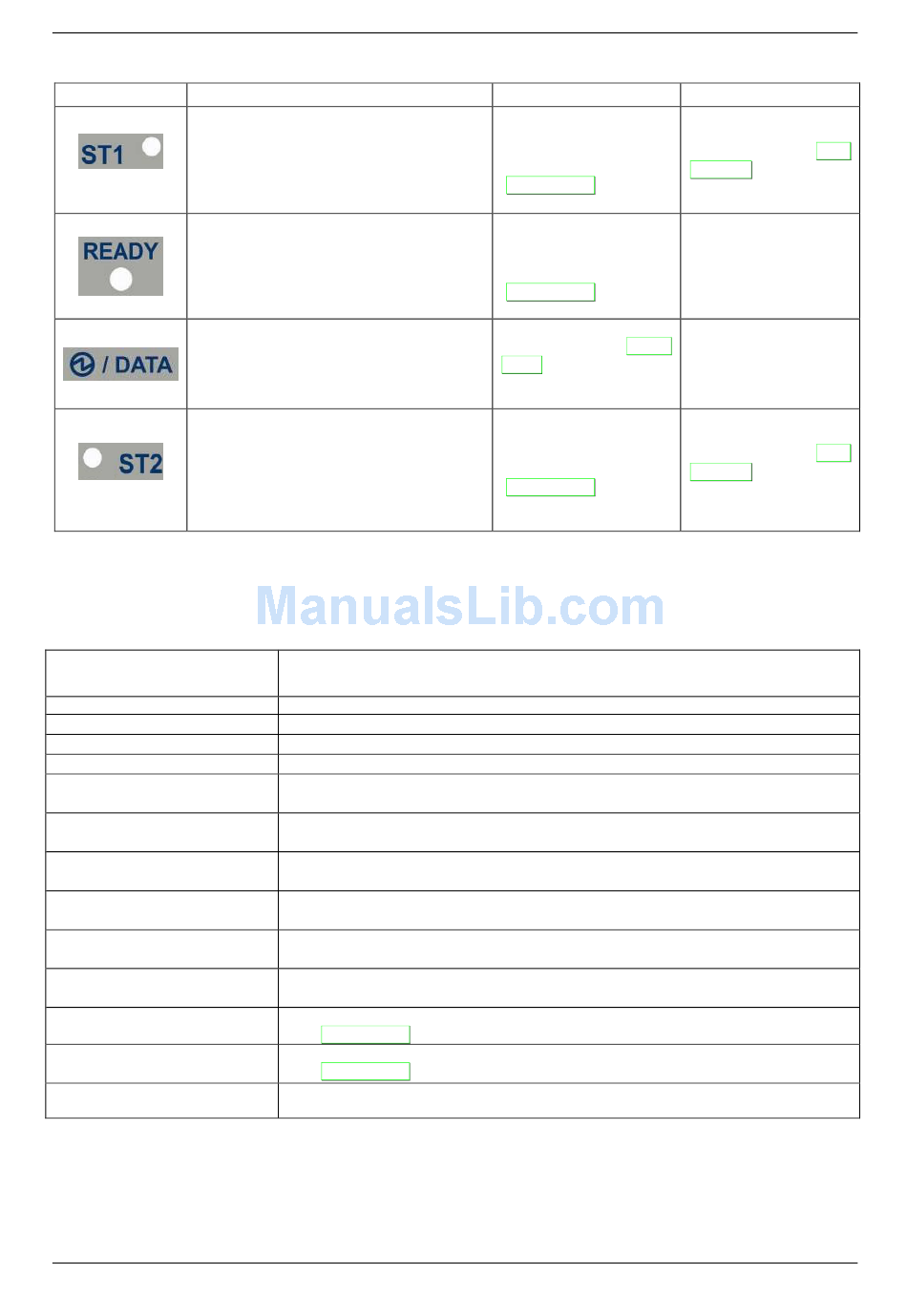

Leds

LED NORMAL MODE
Lit if paper presence, Unlit without paper
(no Olivetti).
When using the IBM 4722, IBM 9068 and
the Olivetti protocols in two operators
("booking") mode, the ST1 led is under
software control.
Lit, when the printer is ready (on line).
Unlit, when the printer is in local (off line).
On, if the printer is powered on without
data.
Off, if the printer is powered off.
Blinks if the printer has data traffic or data
in the buffer.
Lit when the Letter Quality print mode is
selected. Unlit when the Draft printmode is
selected.
When using the IBM 4722, IBM 9068 and
the Olivetti protocols in two operators
("booking") mode, the S2 led is under
software control.

LCD display messages

Upper line message
Lower line message
STARTING UP
..INIT..
FPB-650PII Rel. xxx
PRINTER READY
PROG1 DRAFT
PRINTER READY
HEX-DUMP MODE
PRINTER OFF-LINE
PUSH ON LINE
PAUSE ON PRINT
PUSH ON LINE
WAITING MEDIA
INSERT MEDIA
PRINTER BUSY
EPSON PARALLEL
SET UP
SETUP PAG=CONF
ST1=PAG ST2=PRT
NVM CHANGED
Indication
The printer initialization phase is starting-up.
The printer initialization phase is ended
The printer firmware release message
The printer is in normal ready status showing the current Program and the current Font.
The printer is in normal ready status in hex dump mode.
The printer is in off-line status.
The printer is going in off-line status while data are in the buffer and ready to be printed.
Data are sent to the printer, the printer is waiting for the insertion of the paper.
The printer is currently printing showing the used Emulation and interface
The printer is in Set Up status and is waiting for a blank sheet to be loaded
"Printer
See Setup" later in this manual.
The printer is waiting for a Set Up operation selection.
"Printer
See Setup" later in this manual.
The firmware of the printer has been updated and the NVM values have been resored to
the default parameters.
11
SETUP MODE
If the printer is in Setup
Mode, this led indicates
which setup page is
selected for printing. See
"Printer
Setup" later in this
manual.
If the printer is in Setup
Mode, this led indicates
which setup page is
selected for printing. See
"Printer
Setup" later in this
manual.
Blinks if the printer is in
"Printer
Setup Mode. See
Setup" later in this
manual.
If the printer is in Setup
Mode, this led indicates
which setup page is
selected for printing. See
"Printer
Setup" later in this
manual.
SPECIAL MODE
Blinks, together with the
ST2 led, if a printer error
"Error
occurs. See
Message" later in this
manual.
Blinks, together with the
ST1 led, if a printer error
"Error
occurs. See
Message" later in this
manual.
