Summary of Contents for Elite Screens Elite Home Series

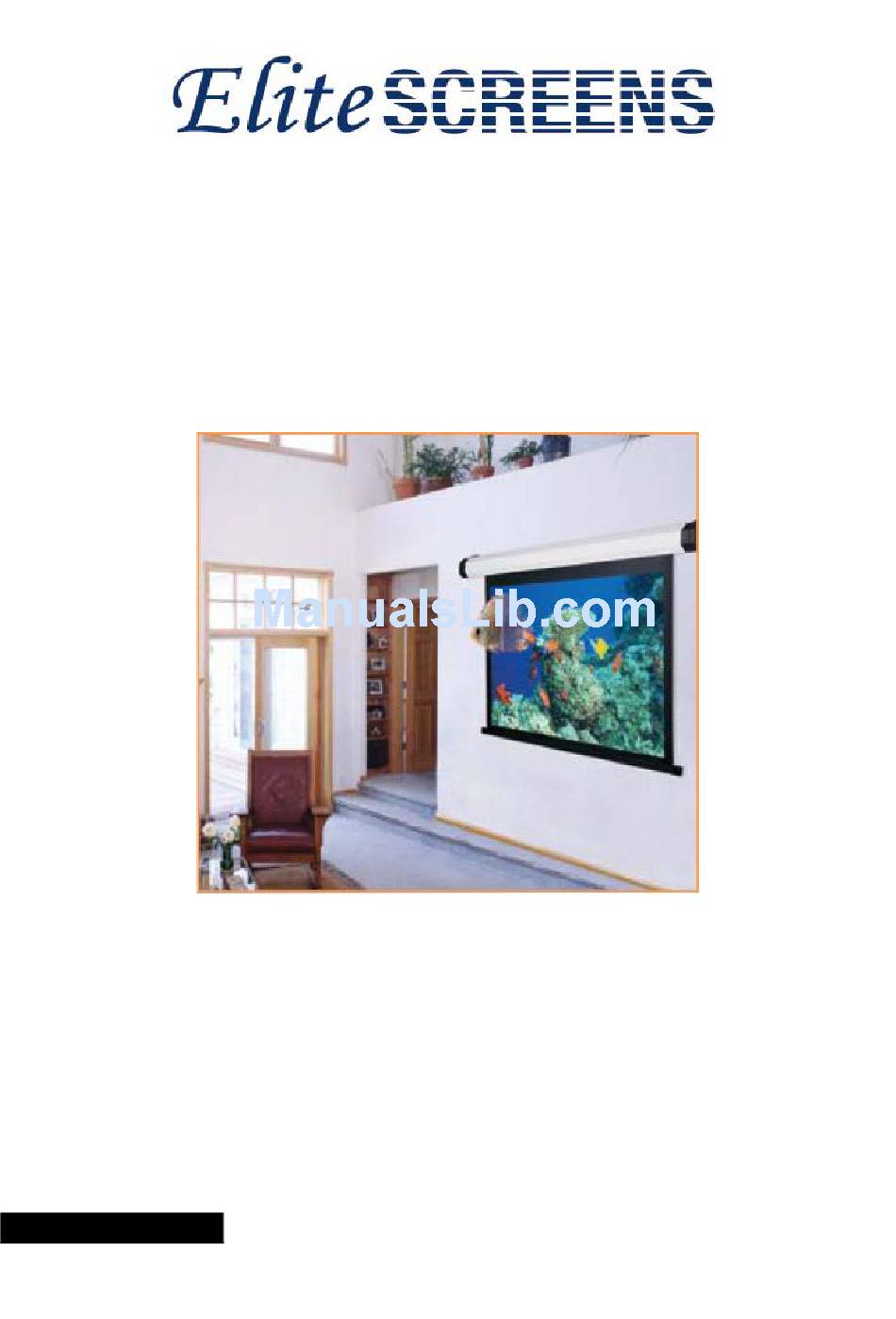

- Page 1 Electric Projection Screen Elite Home Series USER’S GUIDE Matte White Screen Rev. 1.1...
- Page 2 INSTALLATION GUIDE Please read this guide prior to installation. Make sure the current rating is equal to the appliance rating when an extension cord is used. Do not use any accessories not provided by the manufacturer. We will not be responsible for any risks of fire, electric shock, or injuries resulting from the use of other accessories not supplied by the manufacturer.
- Page 3 SETTING THE LIMIT POSITIONS Every Home Series electric screen is designed to use a Limit Switch Adjusting Handle (in yellow) to make the adjustment for lower/upper limit switch positions in lieu of traditional adjustments by a screwdriver or allen wrench. The upper/lower limit positions of the screen should already be properly adjusted by default.
- Page 4 IR CONTROL DIAGRAMS IR Remote Control kit Includes: 1 Hand-held Transmitter 1 Wall-mounted Receiver (built-in sensor) 1 Sensor There are two optional installations as illustrated in diagrams (A) & (B) Connection pins Connection pins inside of case inside of case Transmitter Transmitter 1.
